With CONSULT-II

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start engine and select "DATA MONITOR" mode for "A/T" with CONSULT-II.

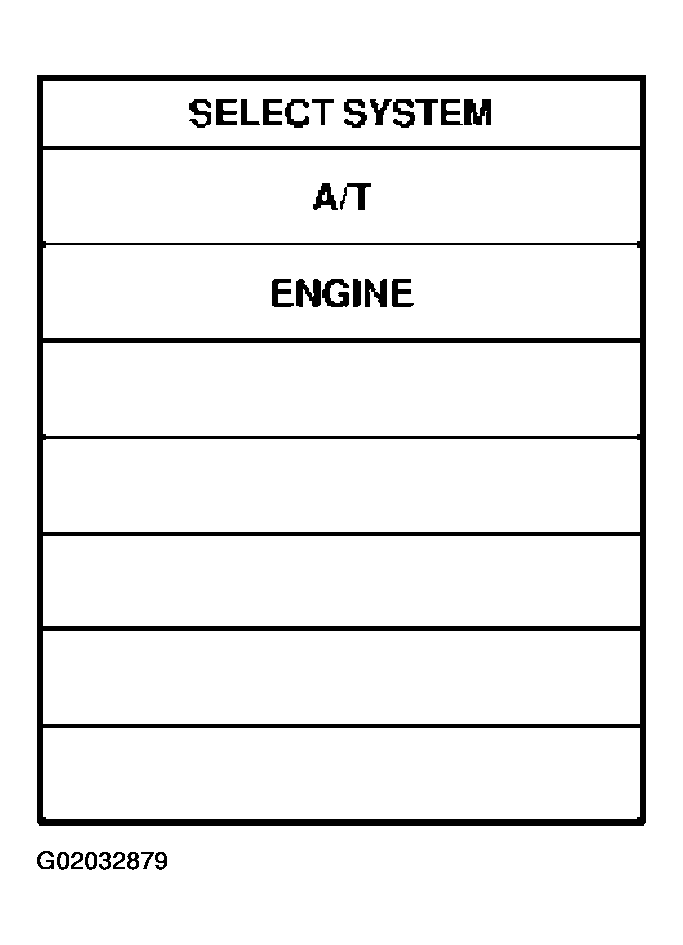

    Fig 1: CONSULT-II Select System Display
    G02032879Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Make sure that output voltage of A/T fluid temperature sensor is within the range below.

    FLUID TEMP SEN: 0.4 - 1.5V

    If out of range, drive the vehicle to decrease the voltage (warm up the fluid) or stop engine to increase the voltage (cool down the fluid).

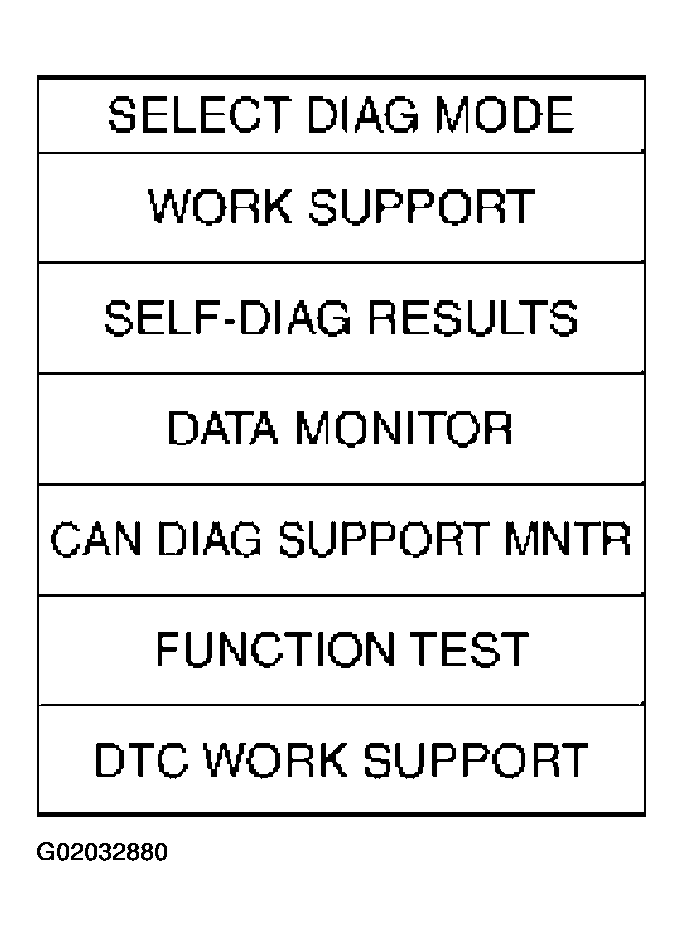

    Fig 2: CONSULT-II Select Diag Mode Display
    G02032880Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Select "2ND GR FNCTN P0732" of "DTC WORK SUPPORT" mode for "A/T" with CONSULT-II and touch "START".
  4. Accelerate vehicle to 25 to 30 km/h (16 to 19 MPH) under the following condition and release the accelerator pedal completely.

    THROTTLE POSI: Less than 1.0/8 (at all times during step 4)

    Selector lever: D position (OD "ON")

    • Check that "GEAR" shows "3" or "4" after releasing pedal.

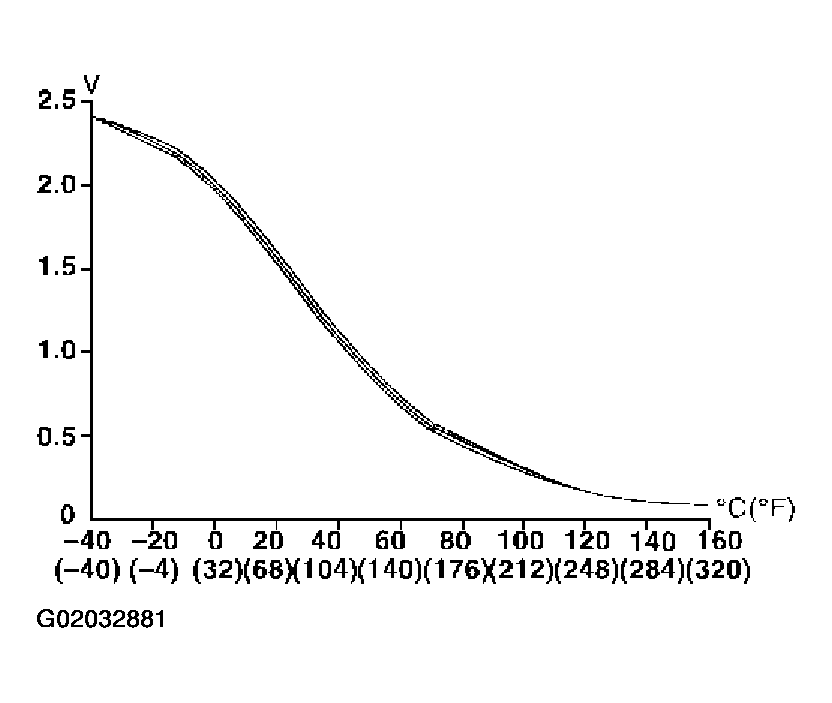

      Fig 3: Fluid Temperature Sensor Specification Graph
      G02032881Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Depress accelerator pedal to WOT (more than 7.0/8 of "THROTTLE POSI") quickly from a speed of 25 to 30 km/h (16 to 19 MPH) until "TESTING" changes to "STOP VEHICLE" or "COMPLETED". (It will take approximately 3 seconds.)

    If the check result NG appears on CONSULT-II screen, go to "DIAGNOSTIC PROCEDURE ", .

    If "STOP VEHICLE" appears on CONSULT-II screen, go to following step.

    • Check that "GEAR" shows "2" when depressing accelerator pedal to WOT.
    • If "TESTING" does not appear on CONSULT-II for a long time, select "SELF-DIAG RESULTS" for "ENGINE". In case a 1st trip DTC other than P0732 is shown, refer to applicable "TROUBLE DIAGNOSIS FOR DTC".
  6. Stop vehicle.
  7. Follow the instruction displayed. (Check for normal shifting referring to the table below.)

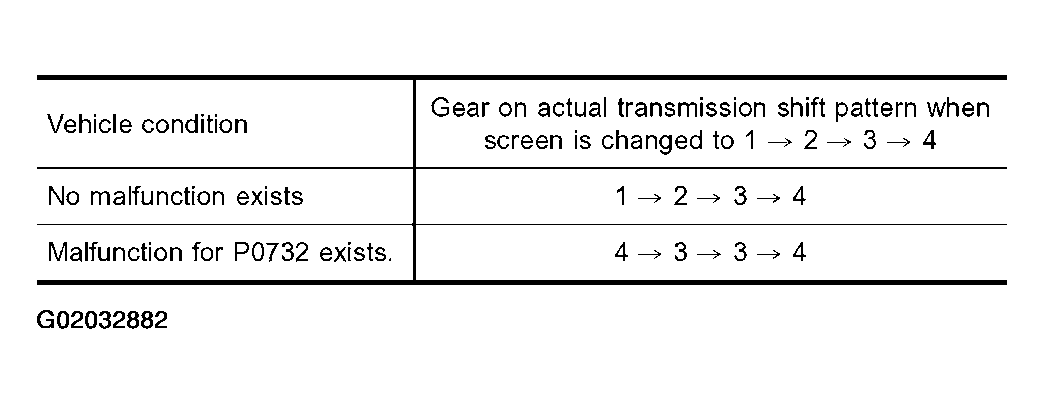

    Fig 4: Shift Operation Diagnosis Chart
    G02032882Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Make sure that "OK" is displayed. (If "NG" is displayed, refer to DIAGNOSTIC PROCEDURE .) Refer to "shift schedule ".
