A/T Fluid Temperature Sensor

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Refer to REMOVAL .
Check resistance between terminals 8 and 9 while changing temperature as shown at left.

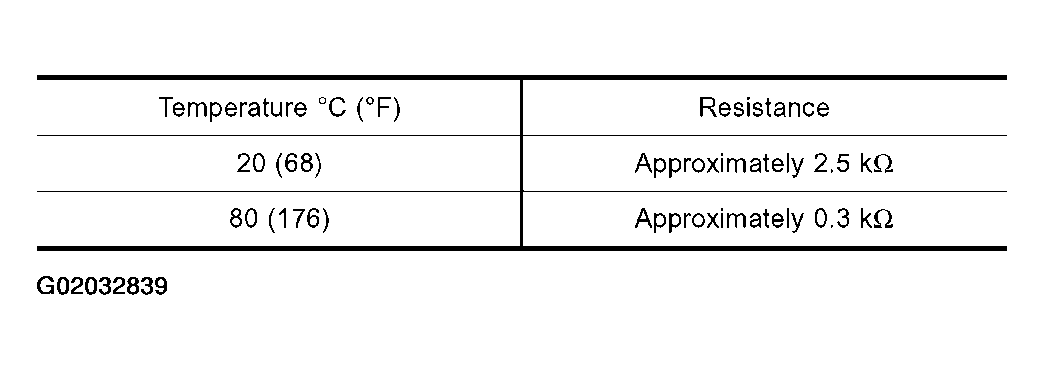

Fig 1: A/T Fluid Temperature Sensor Temperature And Resistance Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

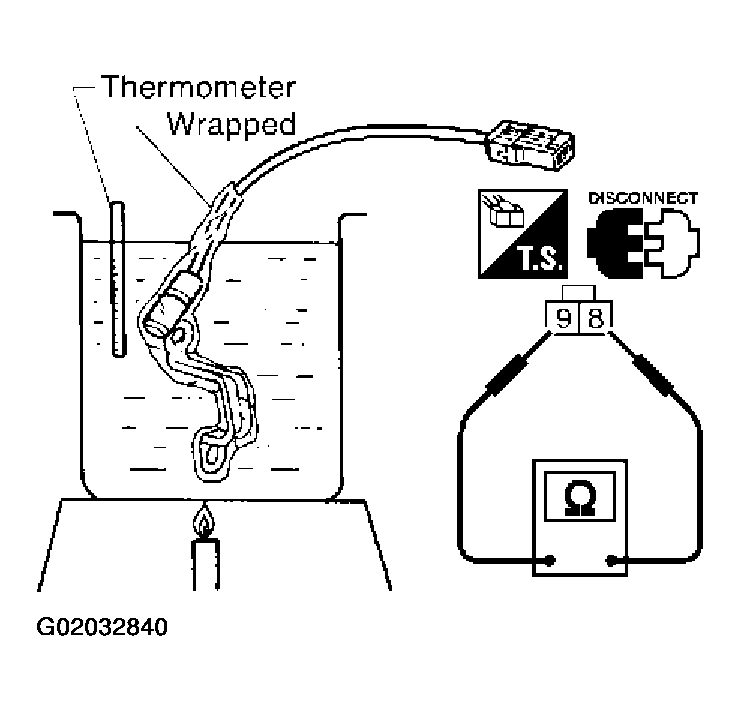

Fig 2: Checking Resistance Between Terminals 8 And 9
Courtesy of NISSAN MOTOR CO., U.S.A.
