With CONSULT-II

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch "ON" and select "DATA MONITOR" mode for A/T with CONSULT-II.

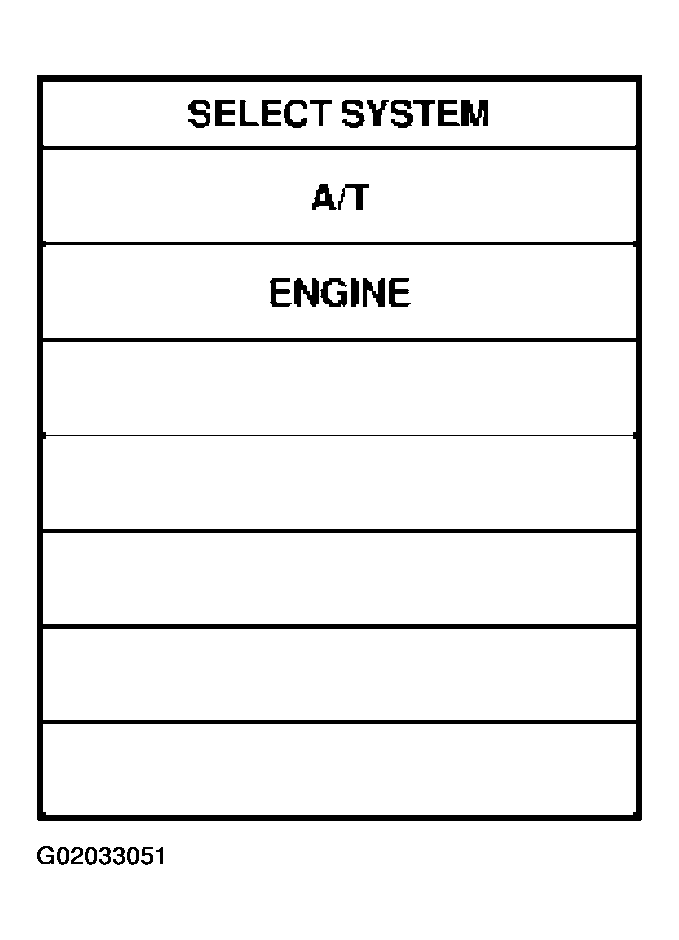

    Fig 1: CONSULT-II Select System Display
    G02033051Courtesy of NISSAN MOTOR CO., U.S.A.

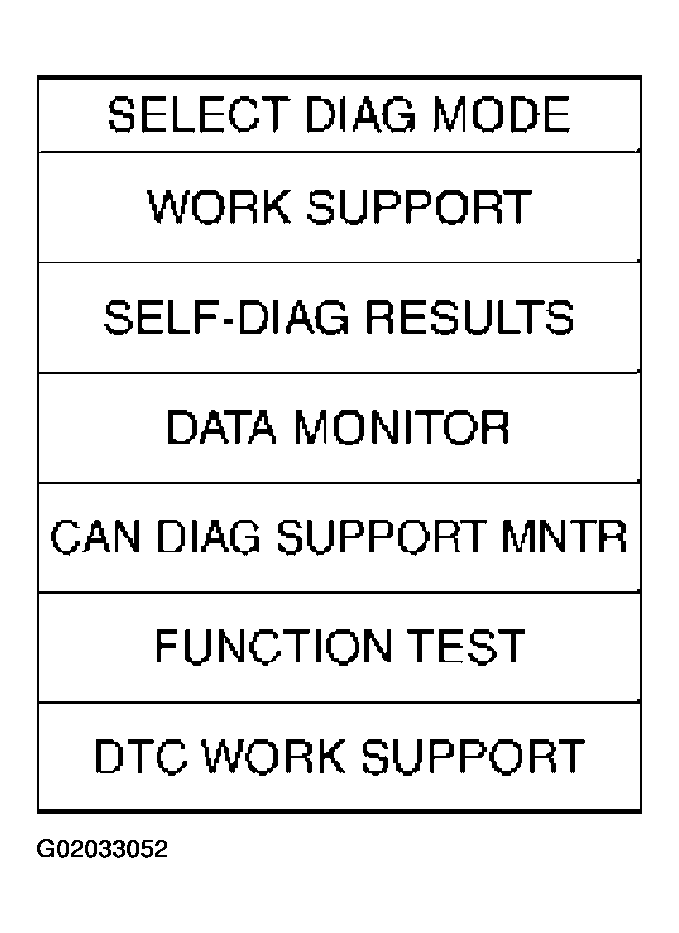

    Fig 2: CONSULT-II Select Diag Mode Display
    G02033052Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Start engine.
  3. Run engine for at least 2 seconds at idle speed.
