With CONSULT-II: Notes

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start engine.
  2. Select "DATA MONITOR" mode for "A/T" with CONSULT-II.

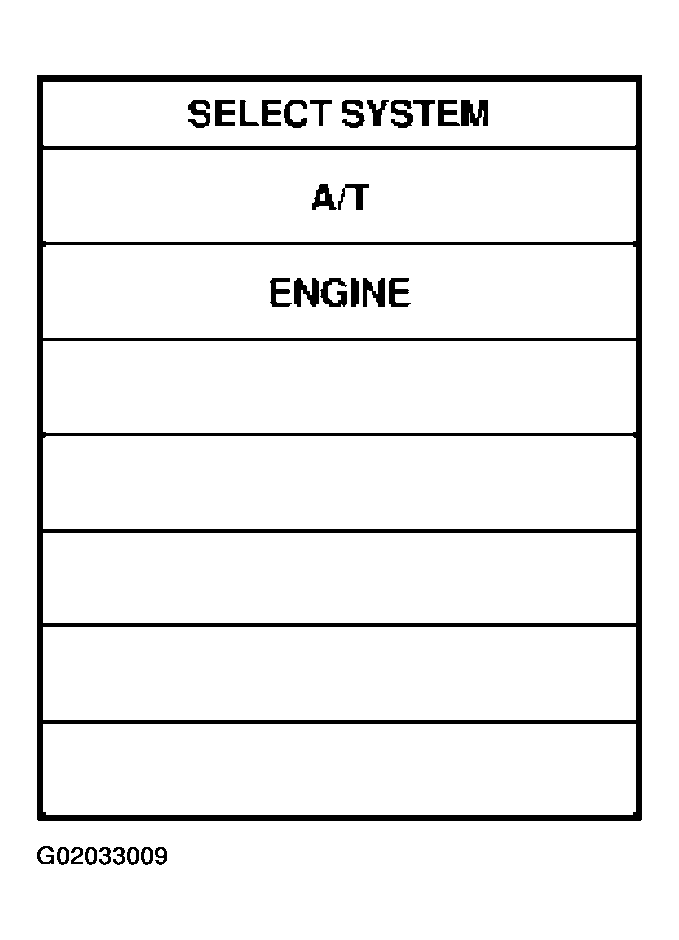

    Fig 1: CONSULT-II (Select System)
    G02033009Courtesy of NISSAN MOTOR CO., U.S.A.

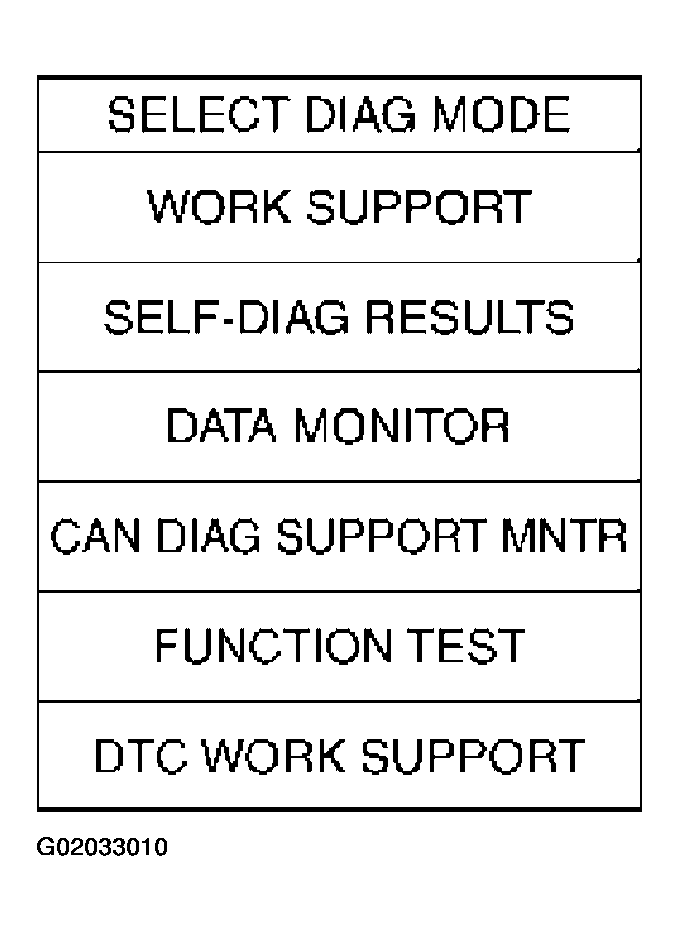

    Fig 2: CONSULT-II (Select Diag Mode)
    G02033010Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Drive vehicle under the following conditions:

    Selector lever in "D" position, vehicle speed higher than 20 km/h (12 MPH).
