Home >> Nissan-Datsun >> 2003 >> Sentra Limited >> Repair and Diagnosis >> External Pages >> Different car >> Section 831 (Automatic Transmission) >> DTC Batt/Fluid Temp Sen (A/T Fluid Temp Sensor Circuit And TCM Power Source) >> Description >> On Board Diagnostic Logic >> With CONSULT-II >> No Tools

No Tools

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start engine.
  2. Drive vehicle under the following conditions:

    Selector lever in "D" position, vehicle speed higher than 20 km/h (12 MPH).

  3. Perform self-diagnosis.

    Refer to TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS) .

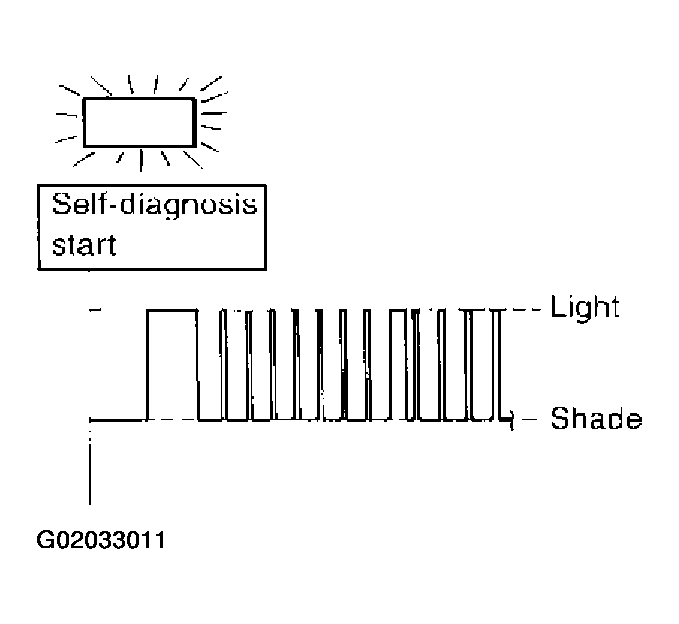

    Fig 1: Identifying Blinking Pattern
    G02033011Courtesy of NISSAN MOTOR CO., U.S.A.
