Removal and Installation

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the console finisher, refer to "CENTER CONSOLE ".
  2. Disconnect power socket connector.
  3. Remove socket from the console.

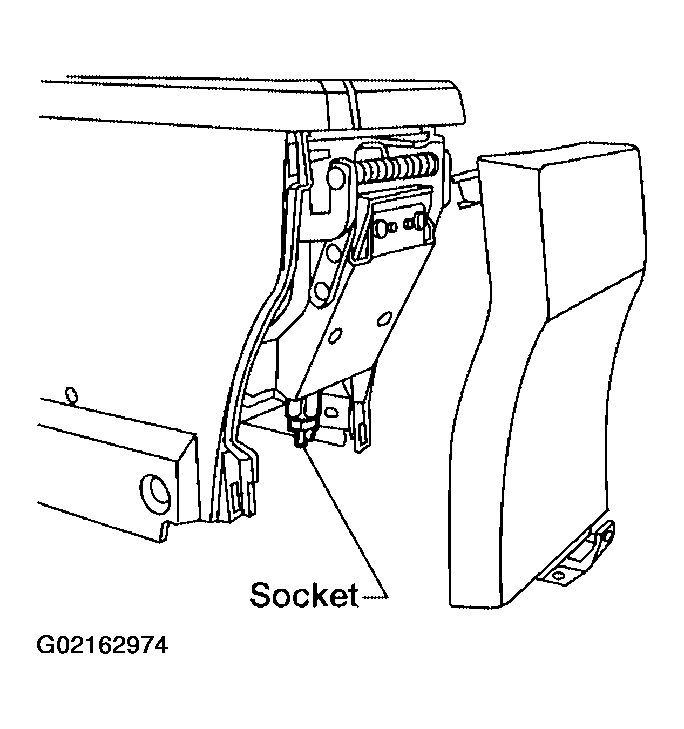

    Fig 1: Removing And Installing Power Socket
    G02162974Courtesy of NISSAN MOTOR CO., U.S.A.
