Front Wiper Intermittent Operation Switch Position Cannot Be Adjusted

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

COMBINATION SWITCH TO BCM INSPECTION
Select BCM on Consult-II. With "WIPER" data monitor, check that "INT VOLUME" changes in order from 1 to 7 according to operation of the intermittent switch dial position.

OK or NG
1. OK: Replace BCM.
2. NG: Replace wiper switch, refer to "REMOVAL AND INSTALLATION FOR WIPER AND WASHER SWITCH ".

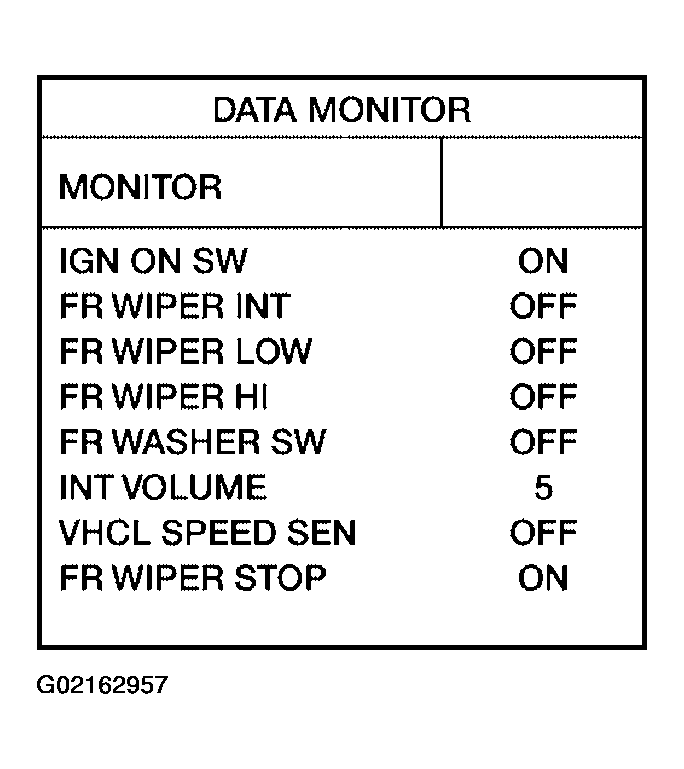

Fig 1: Displaying Data Monitor (Only Front Wiper INT Volume)
Courtesy of NISSAN MOTOR CO., U.S.A.
