Removal and Installation for Wiper and Washer Switch: Removal

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove steering column cover.
  2. Remove wiper washer switch connector.
  3. Pinch tabs at wiper and washer switch base and slide switch away from steering column to remove.

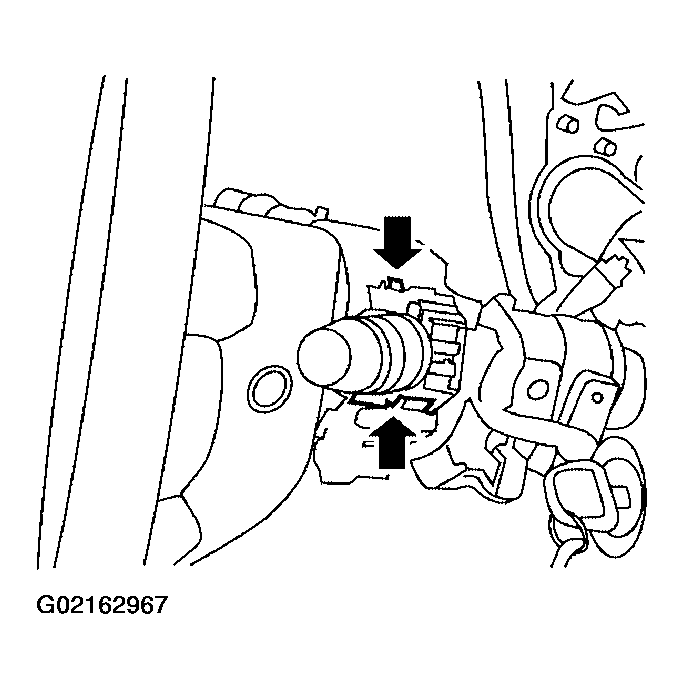

    Fig 1: Removing Wiper Washer Switch Connector
    G02162967Courtesy of NISSAN MOTOR CO., U.S.A.
