Removal and Installation for Washer Tank

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull out washer tank inlet.

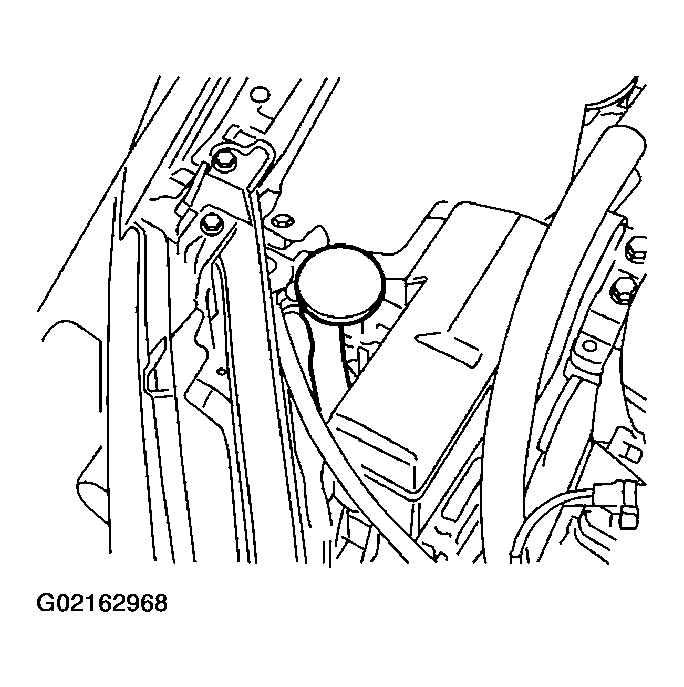

    Fig 1: Removing Washer Tank Inlet
    G02162968Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove fender protector, refer to "FENDER PROTECTOR ".
  3. Remove front washer motor connector and washer fluid level sensor connector (if equipped).
  4. Remove washer tank screws.
  5. Remove washer hose, and remove the washer tank from the vehicle.
    CAUTION: After installation, add water up to the upper level of the washer tank inlet, and check for water leaks.

    Washer tank installation screws

    Tightening torque: 3.9 - 5.0 N.m (0.39 - 0.52 kg-m, 34 - 45 in-lb.)

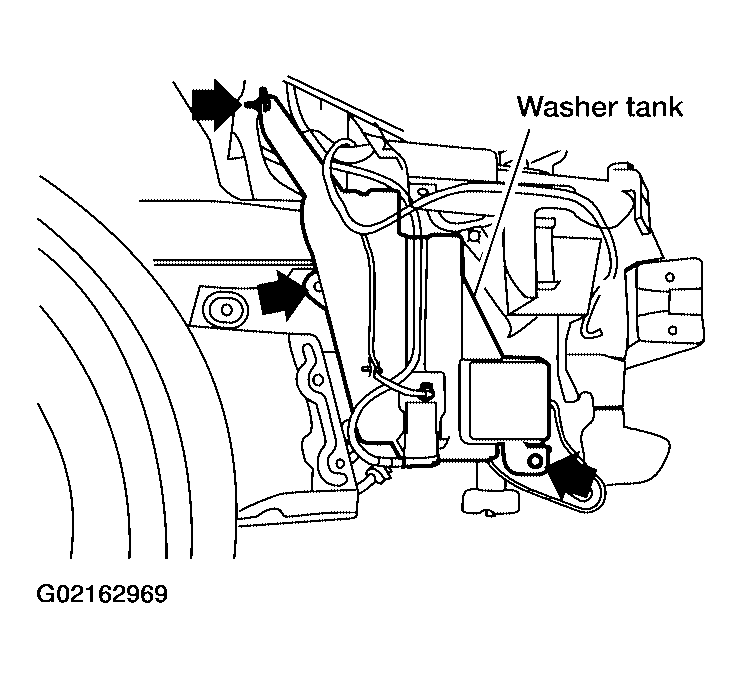

    Fig 2: Locating Washer Tank Bolt
    G02162969Courtesy of NISSAN MOTOR CO., U.S.A.
