Removal and Installation for Washer Motor

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove fender protector, refer to "FENDER PROTECTOR ".
  2. Remove front washer motor connector and hose.
  3. Pull out front washer motor in the direction of the arrow as shown, and remove the washer motor from the washer tank.
    CAUTION: When installing front washer motor, there should be no packing twists, etc.

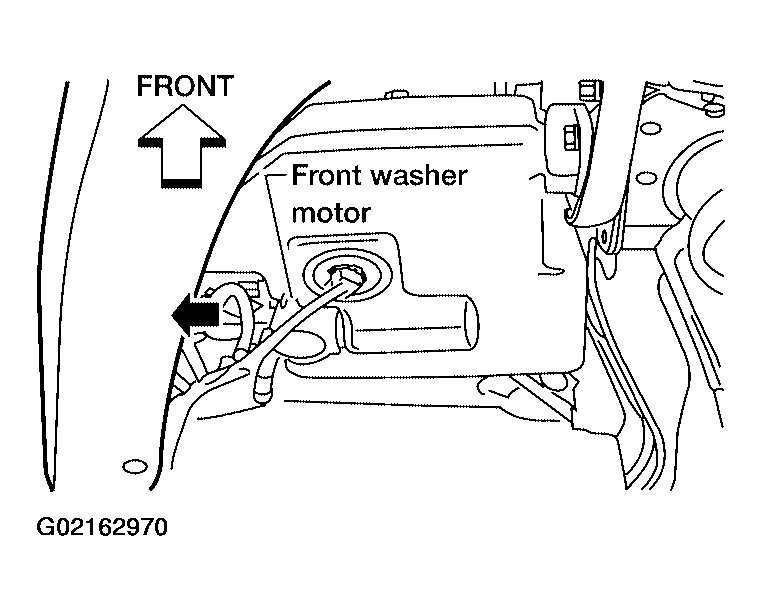

    Fig 1: Installing Front Washer Motor
    G02162970Courtesy of NISSAN MOTOR CO., U.S.A.
