Inspection For Power Supply And Ground Circuit

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Inspection procedure

CHECK FUSE
- Check if wiper and washer fuse is blown.

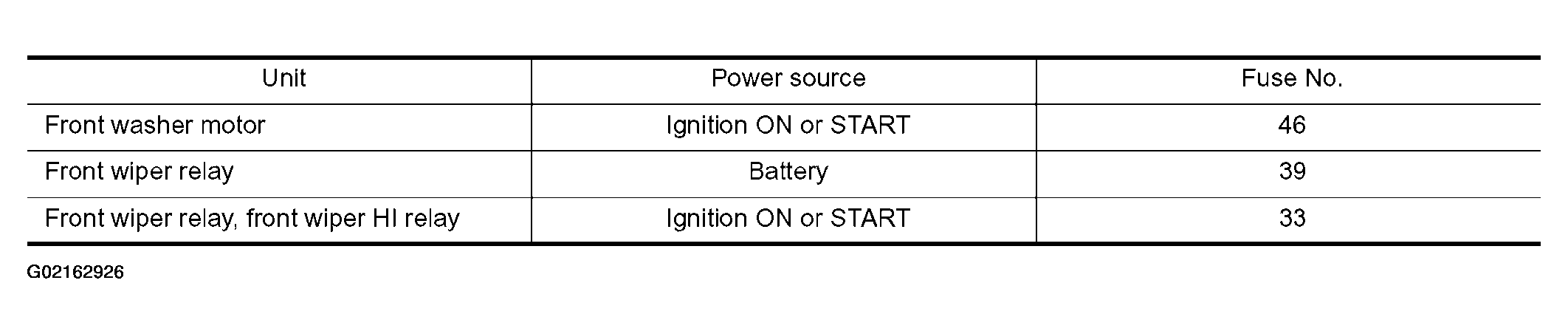

  Fig 1: Wiper And Washer Fuse Table
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: GO TO 2.
2. NG: If fuse is blown, be sure to eliminate cause of problem before installing new fuse, refer to "POWER SUPPLY ROUTING CIRCUIT ".
GROUND CIRCUIT INSPECTION (BCM)
Check for continuity between the following terminals on BCM connector and body ground.

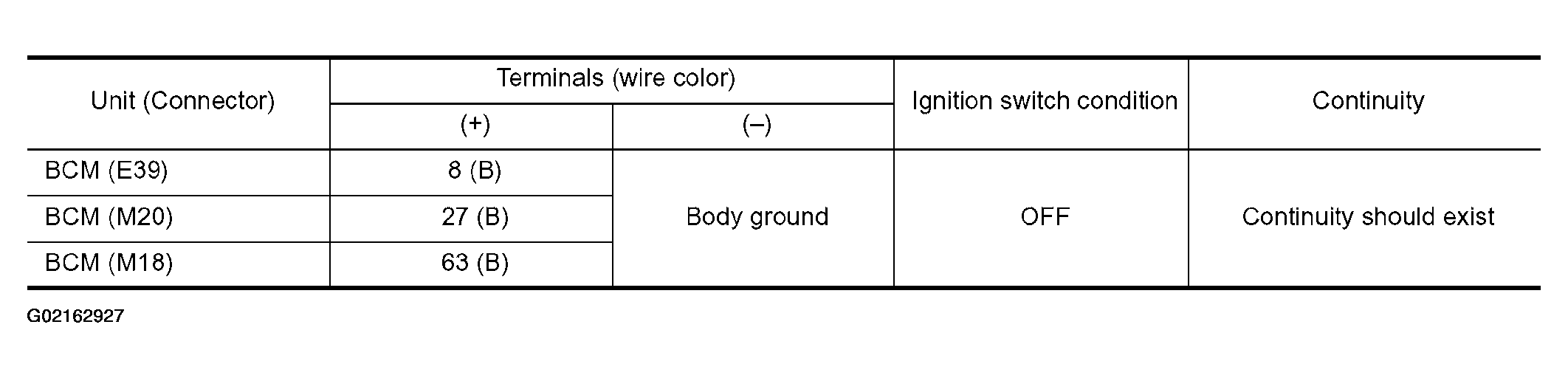

Fig 2: BCM Connector Terminals Continuity
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: INSPECTION END.
2. NG: Repair/replace BCM ground circuit.
