Operation Procedure

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Touch "WIPER" on the "SELECT TEST ITEM" screen.
  2. Touch "DATA MONITOR" on the "SELECT DIAG MODE" screen.
  3. Touch either "ALL SIGNALS" or "SELECTION FROM MENU" on the "DATA MONITOR" screen.

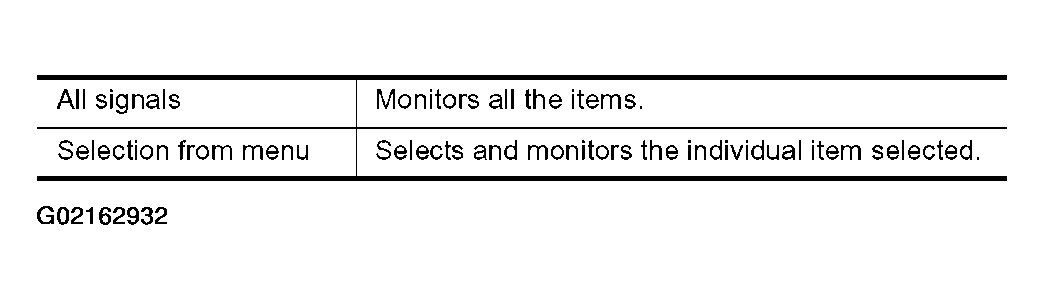

    Fig 1: All Signals Operation Procedure
    G02162932Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "START".
  5. When "SELECTION FROM MENU" is selected, touch items to be monitored. When "ALL SIGNALS" is selected, all the items will be monitored.
