Consult-II Operation

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

With the ignition switch OFF, connect CONSULT-II to the vehicle-side data link connector, then turn the ignition switch ON.
Touch "START".

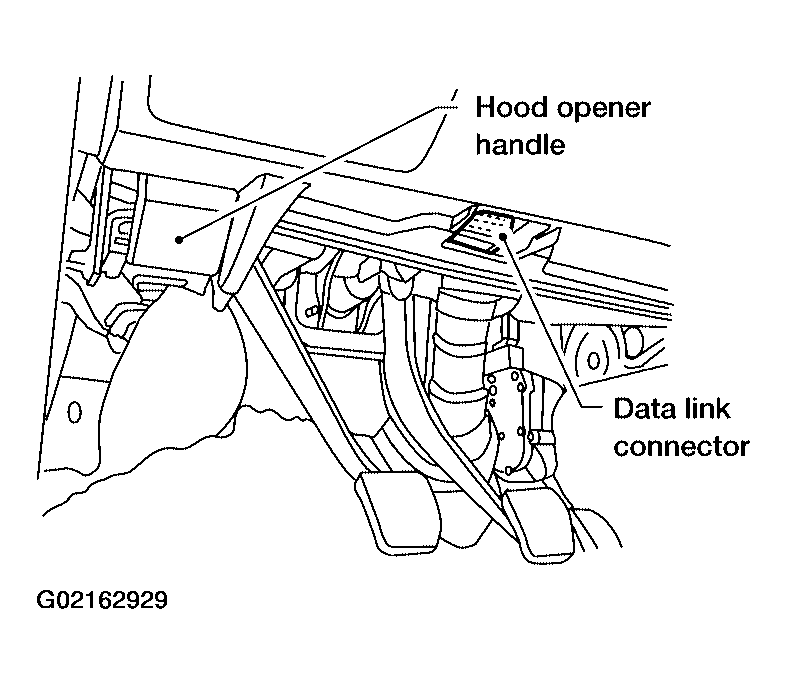

Fig 1: Connecting CONSULT-II To Vehicle-Side Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM" on the "SELECT SYSTEM" screen.

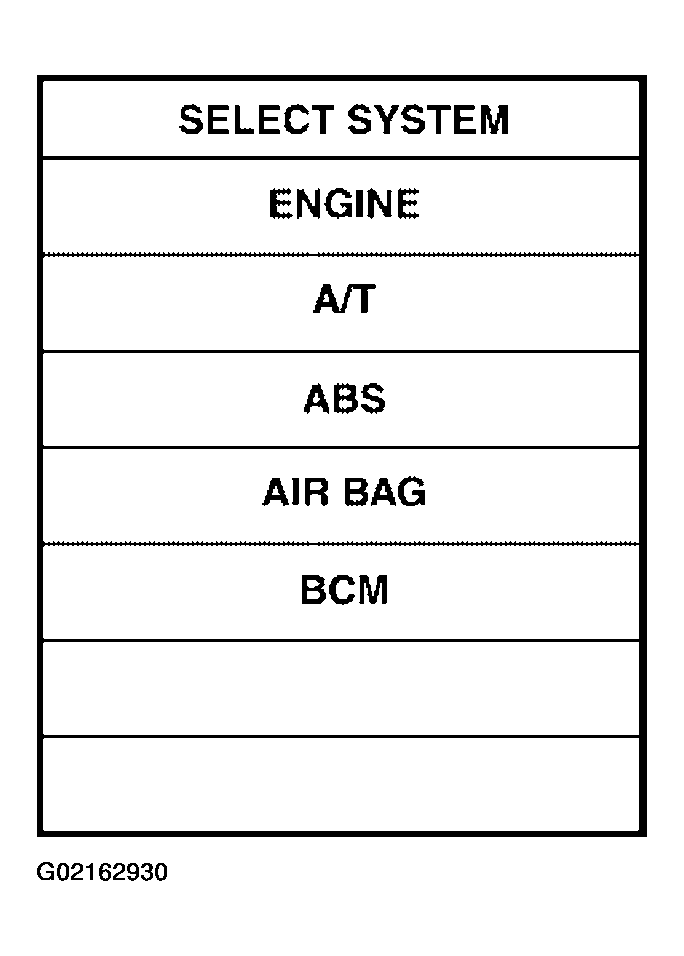

Fig 2: Displaying Select System
Courtesy of NISSAN MOTOR CO., U.S.A.
Select the desired part to be diagnosed on the "SELECT TEST ITEM" screen.

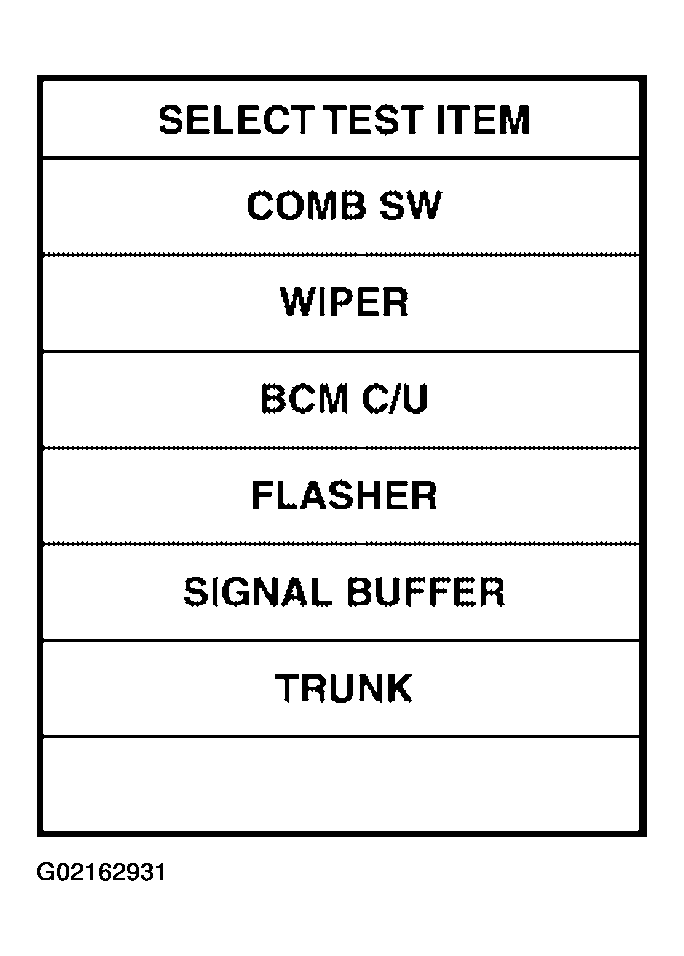

Fig 3: Displaying Select Test Item
Courtesy of NISSAN MOTOR CO., U.S.A.
