Table Of BCM - Combination Switch Operations

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

BCM reads operation status of combination switch using combinations shown in Fig 1.

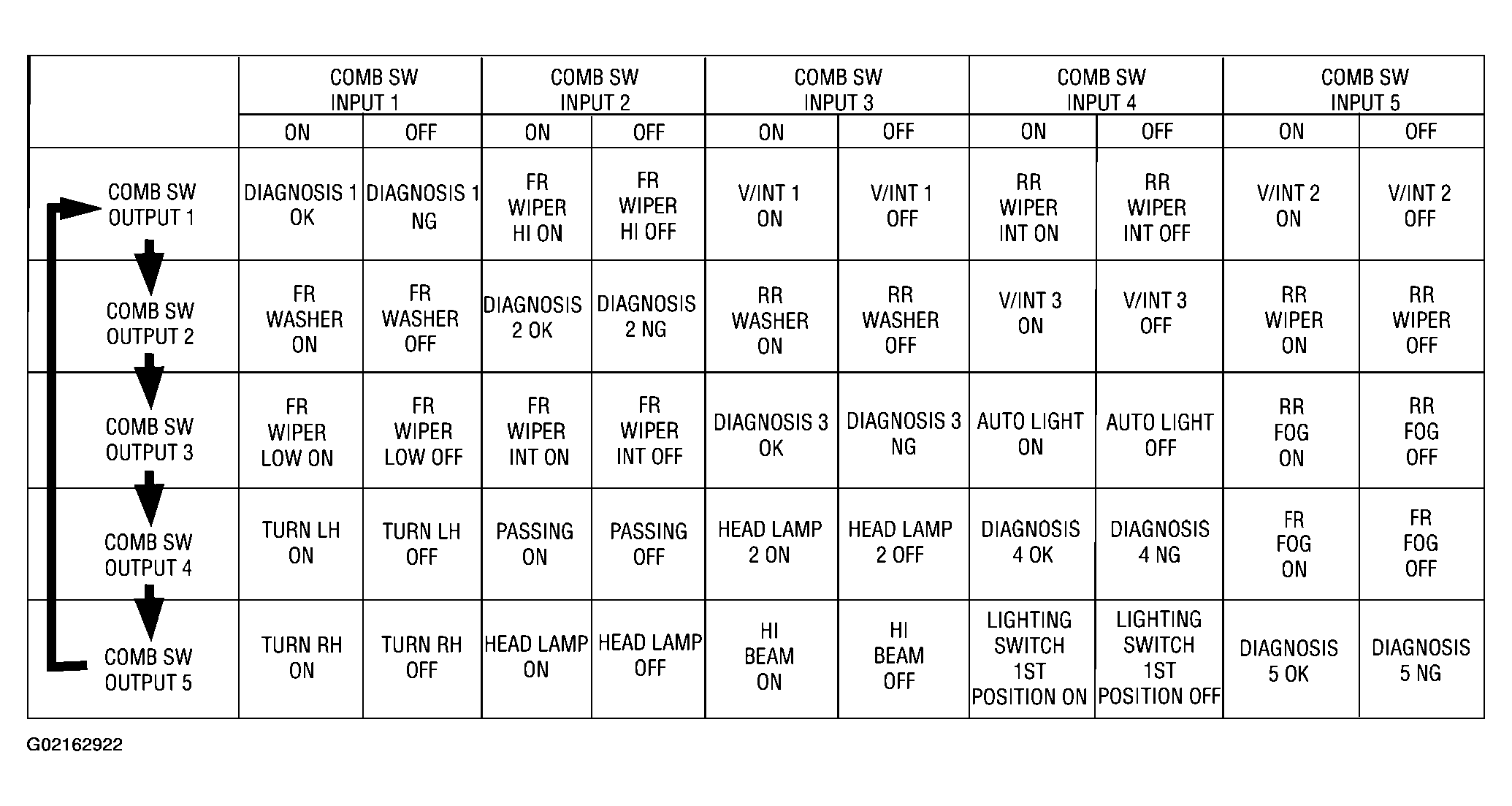

Fig 1: BCM - Combination Switch Operations Table
G02162922Courtesy of NISSAN MOTOR CO., U.S.A.
