Wiper Dial Position Setting
WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

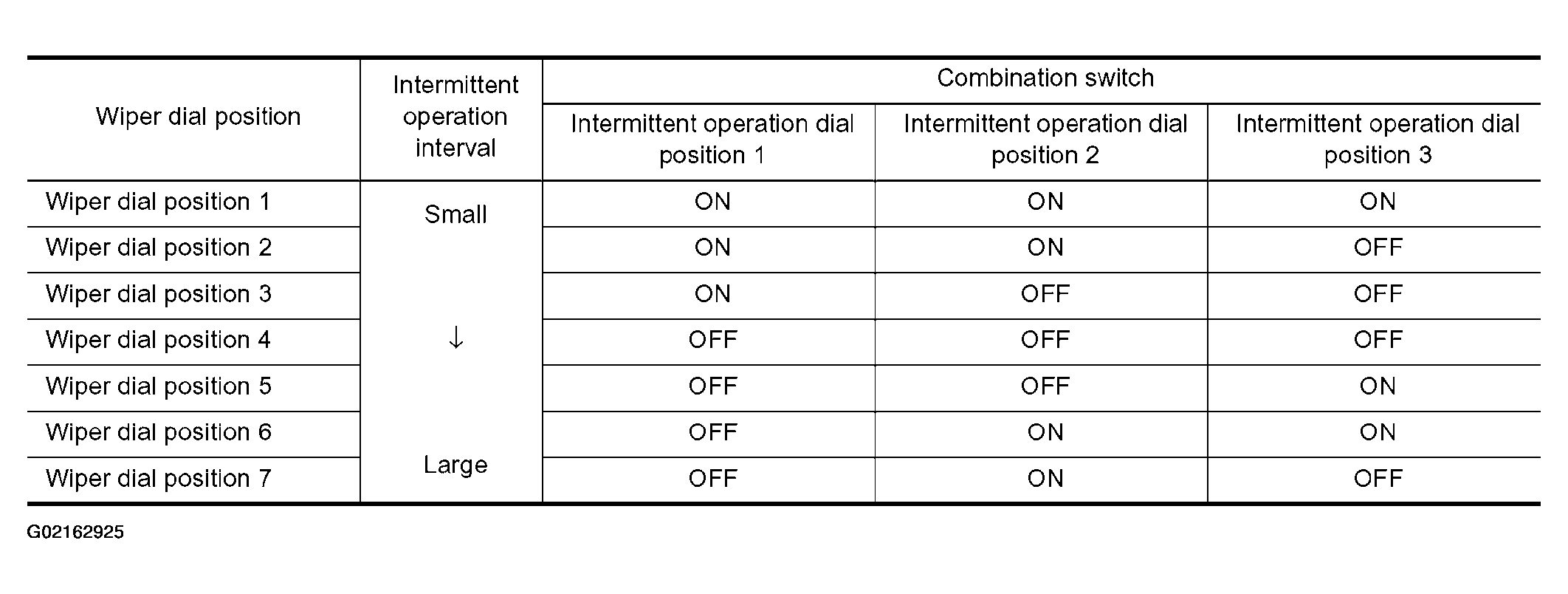

Example: For wiper dial position 1...
Using combination switch reading function, BCM detects ON/OFF status of intermittent operation dial positions 1, 2, and 3.
When combination switch status is as listed below, BCM determines that it is wiper dial position 1.
- Intermittent operation dial position 1: ON (input 3 and output 1 are conducting.)
- Intermittent operation dial position 2: ON (input 5 and output 1 are conducting.)
- Intermittent operation dial position 3: ON (input 4 and output 2 are conducting.)
BCM determines front wiper intermittent operation delay interval from wiper dial position 1 and vehicle speed, and sends wiper request signal (INT) to IPDM E/R.
