Power Supply Circuit Check

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

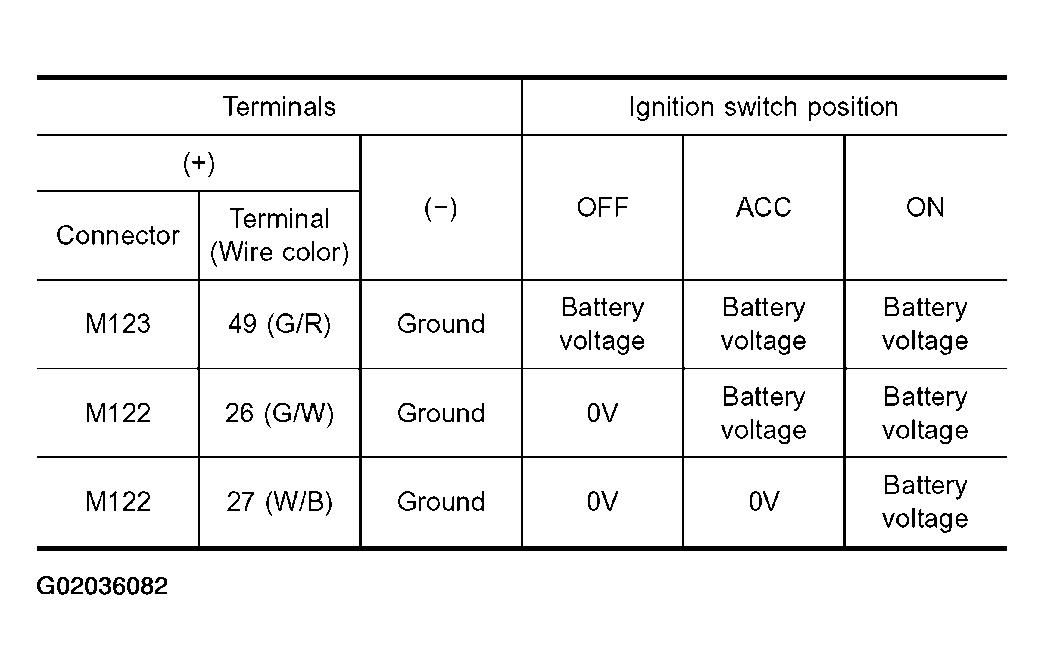

Fig 1: Power Supply Circuit Voltage Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, check the following.

7.5A fuse [No. 24, located in fuse block (J/B)]
7.5A fuse [No. 11, located in fuse block (J/B)]
10A fuse [No. 10, located in fuse block (J/B)]
Harness for open or short between smart entrance control unit and fuse.

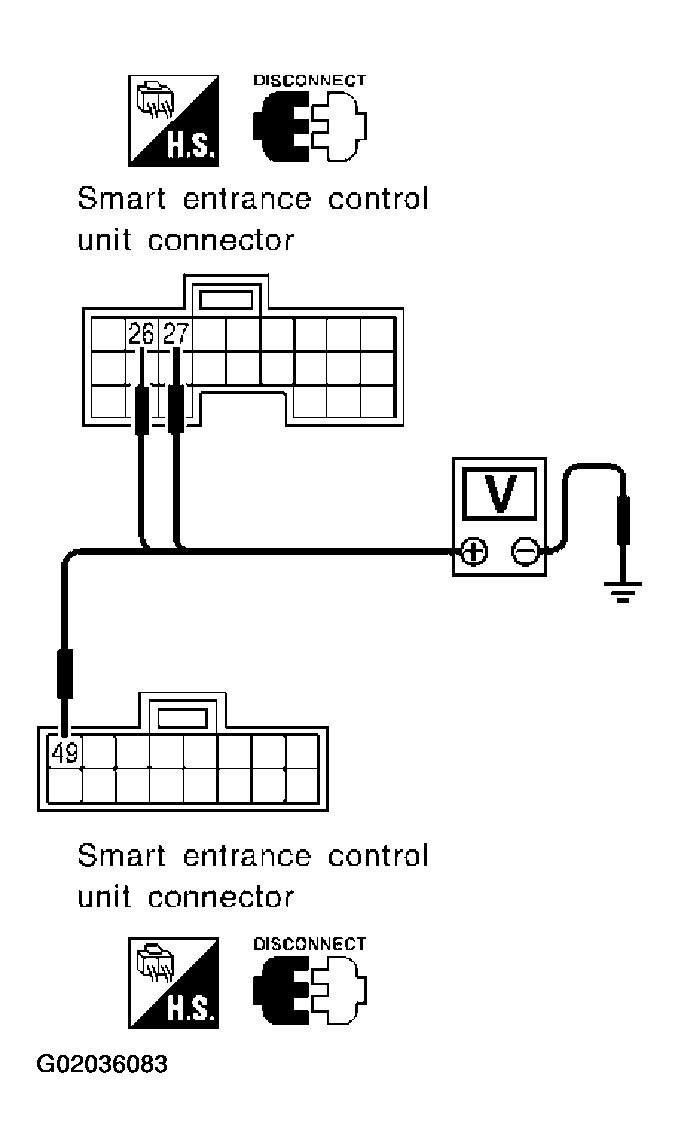

Fig 2: Checking Power Supply Circuit
Courtesy of NISSAN MOTOR CO., U.S.A.
