Ground Circuit Check

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

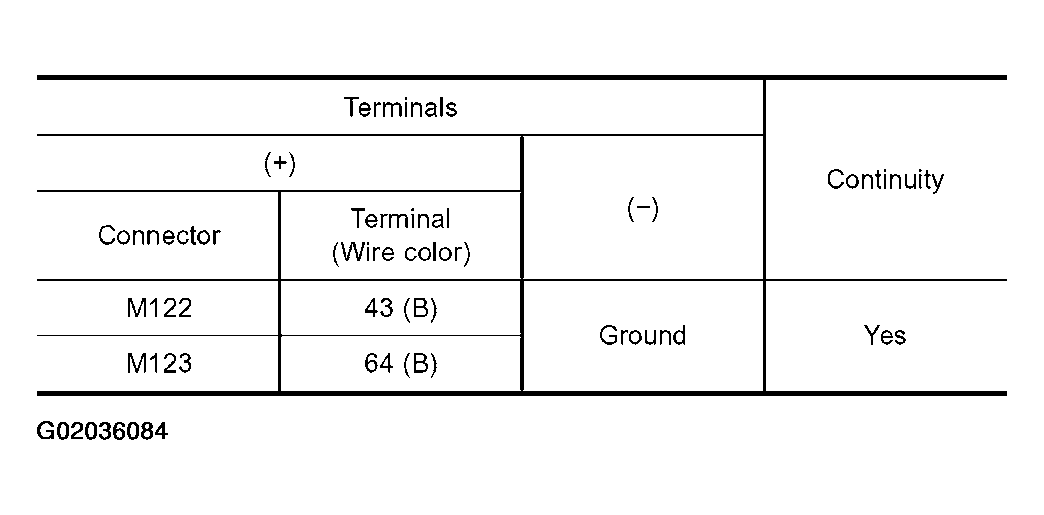

Fig 1: Ground Circuit Continuity Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

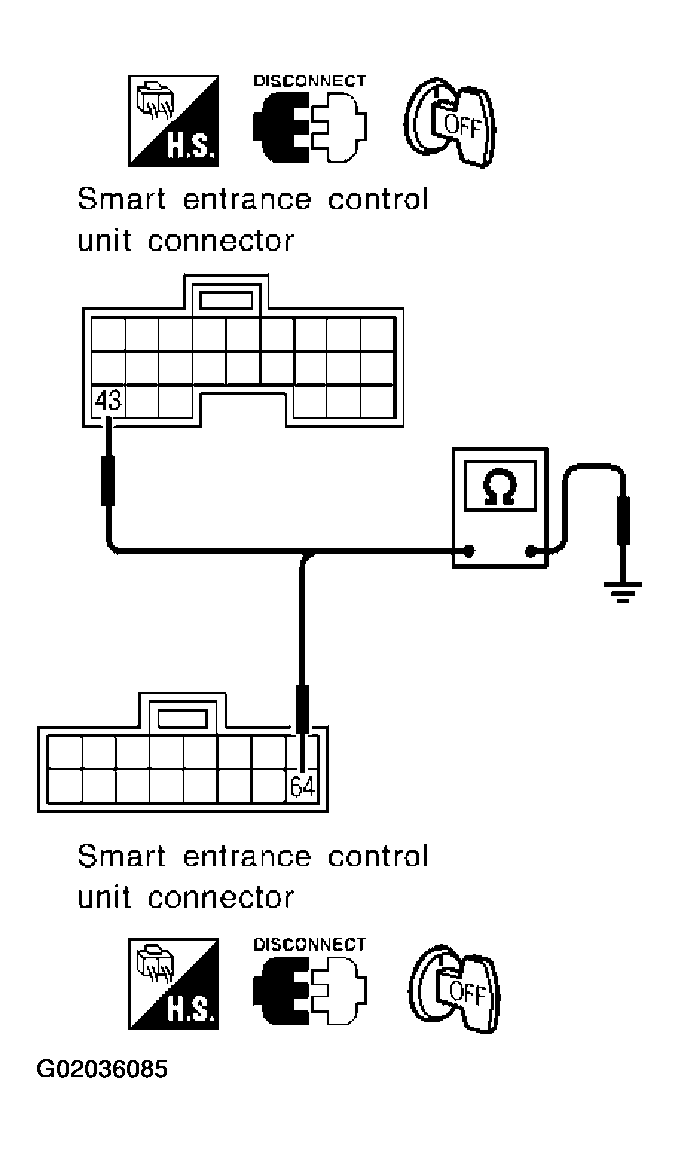

Fig 2: Checking Ground Circuit

Courtesy of NISSAN MOTOR CO., U.S.A.
