Section 828 (Vehicle Security (Theft Warning) System)
>>
Component Parts and Harness Connector Location
Component Parts and Harness Connector Location
WARNING:
This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

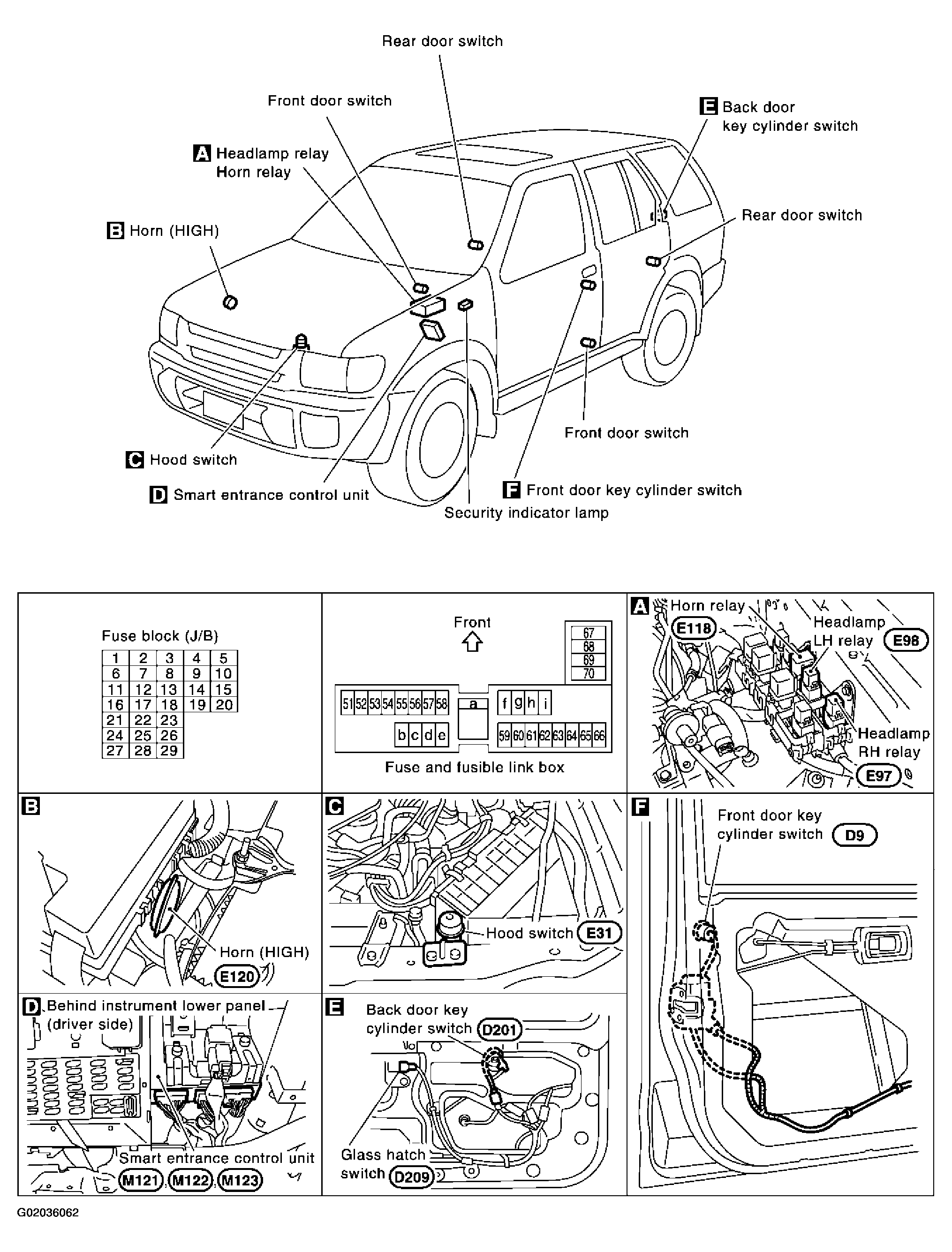

Fig 1: Component Parts And Harness Connector Location
Courtesy of NISSAN MOTOR CO., U.S.A.
