"Theft War ALM"

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch "OFF".
Connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector.

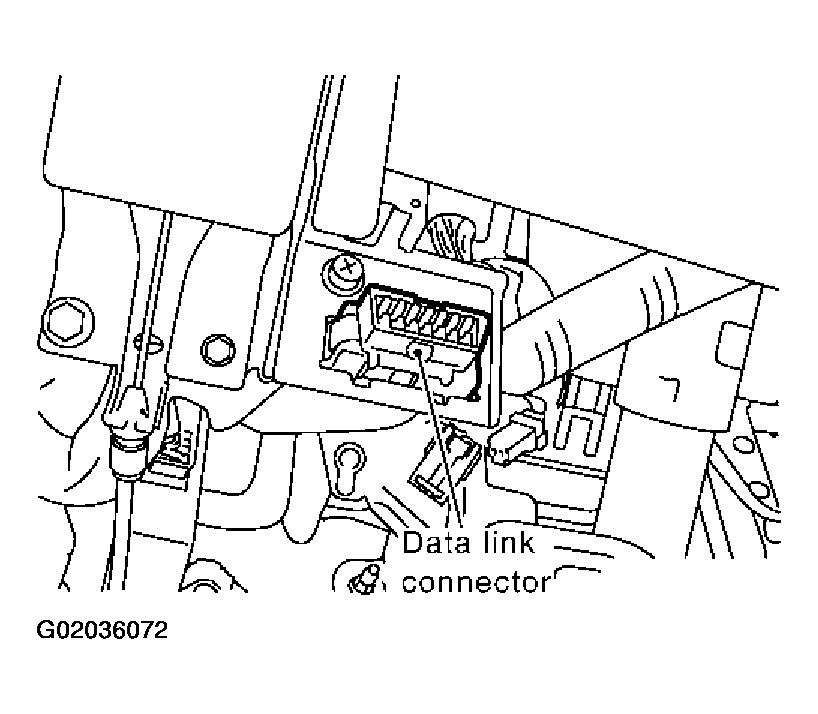

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch "ON".
Touch "START (NISSAN BASED VHCL)".

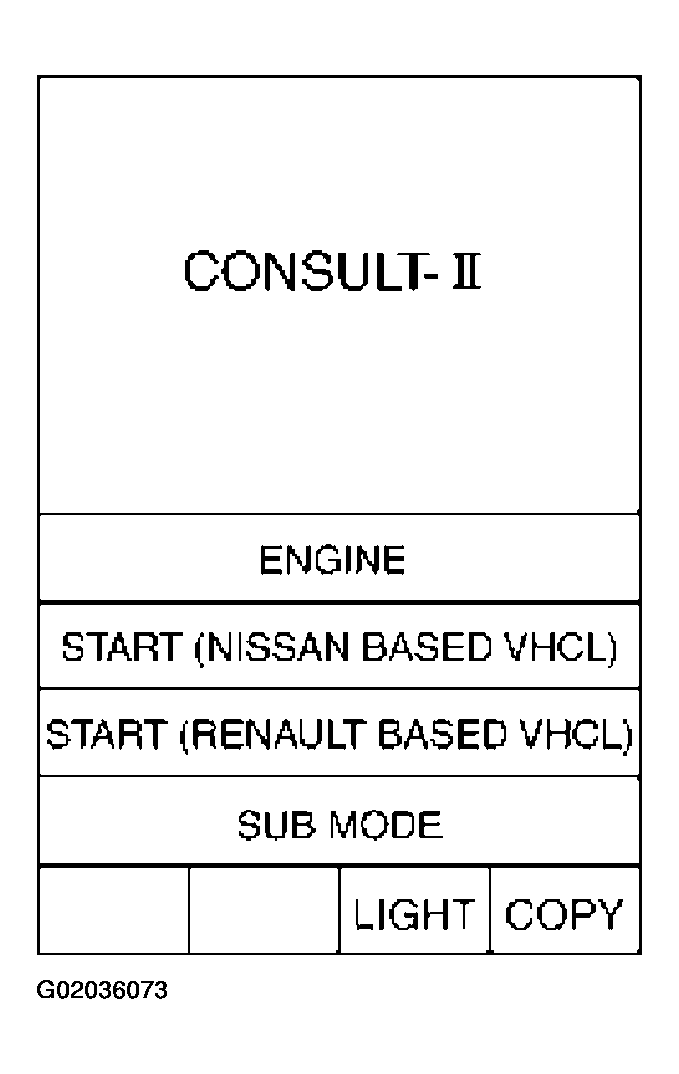

Fig 2: CONSULT-II Display - START (NISSAN BASED VHCL)
Courtesy of NISSAN MOTOR CO., U.S.A.

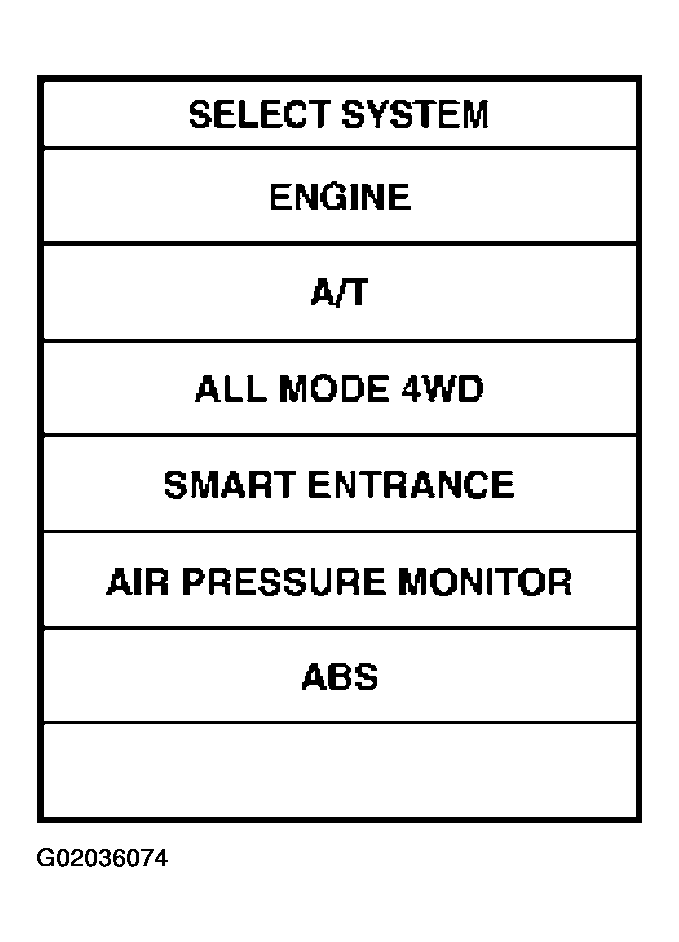

Touch "SMART ENTRANCE".
If "SMART ENTRANCE" is not indicated, go to CONSULT-II .

Fig 3: CONSULT-II Display - SMART ENTRANCE
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "THEFT WAR ALM".

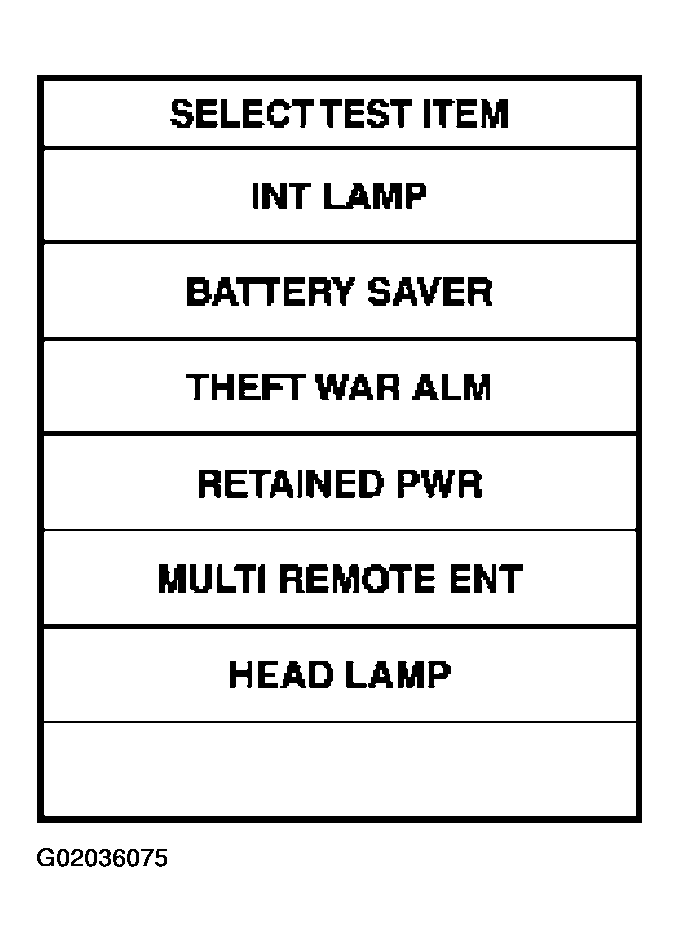

Fig 4: CONSULT-II Display - THEFT WAR ALM
Courtesy of NISSAN MOTOR CO., U.S.A.
Select diagnosis mode.
"DATA MONITOR", "ACTIVE TEST" and "WORK SUPPORT" are available.

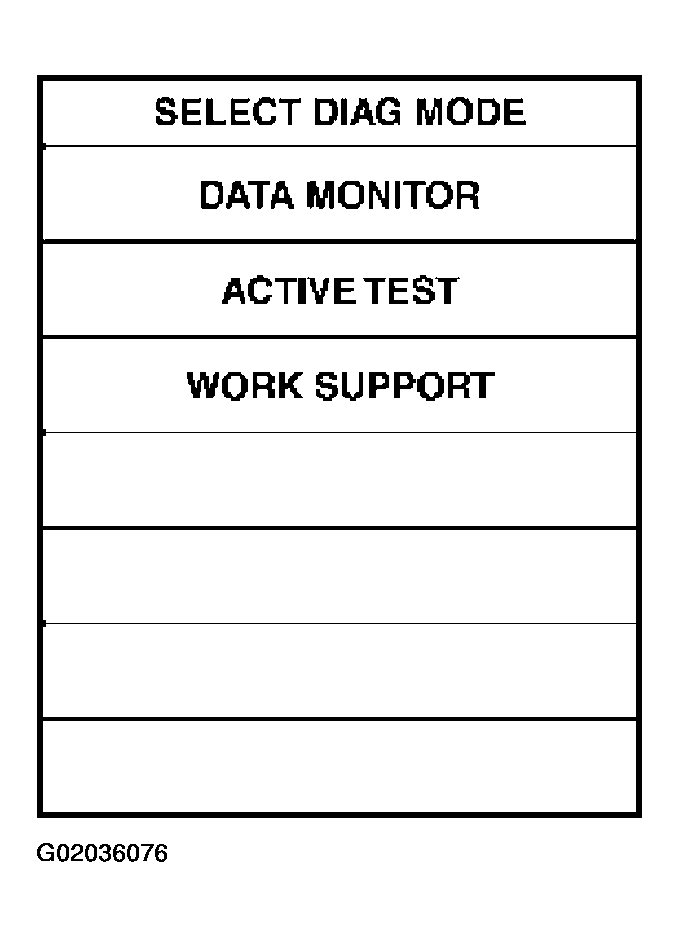

Fig 5: CONSULT-II Display - ACTIVE TEST And WORK SUPPORT
Courtesy of NISSAN MOTOR CO., U.S.A.
