"Retained PWR"

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch "OFF".
Connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector.

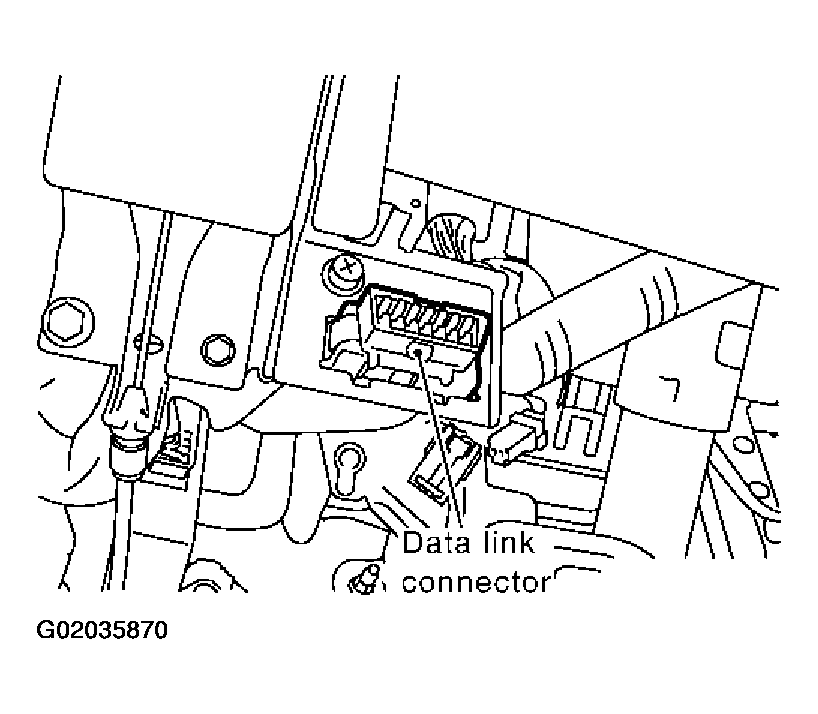

Fig 1: Identifying Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch "ON".
Touch "START (NISSAN BASED VHCL)".

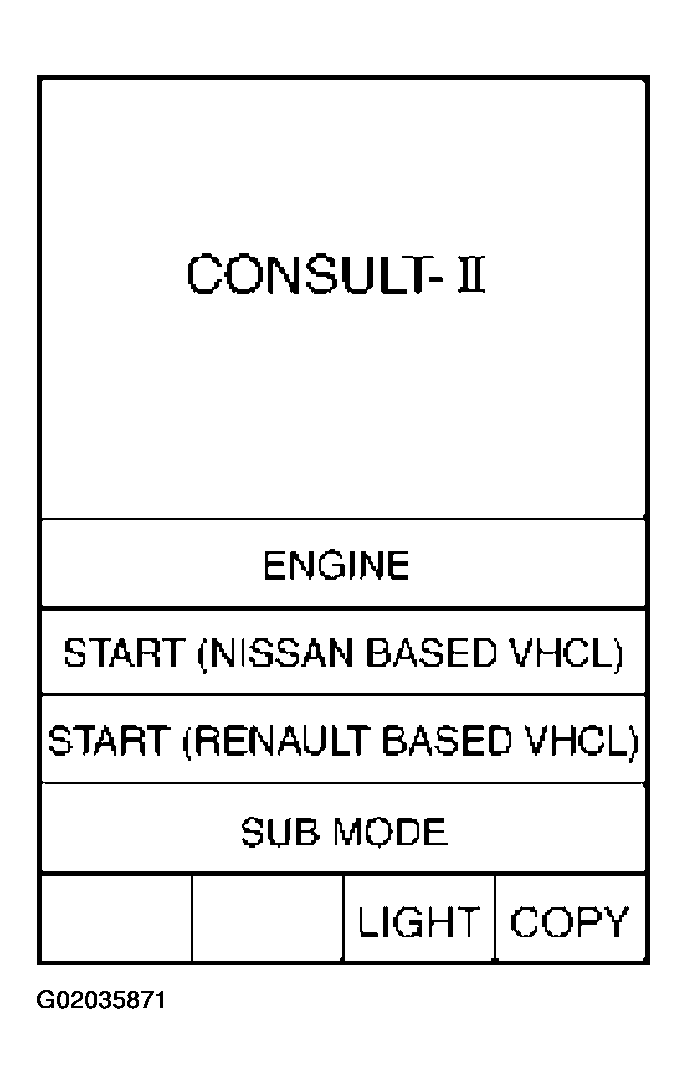

Fig 2: CONSULT-II Display - Touch "START (NISSAN BASED VHCL)"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "SMART ENTRANCE".
If "SMART ENTRANCE" is not indicated, go to SELF-DIAGNOSTIC SYSTEM .

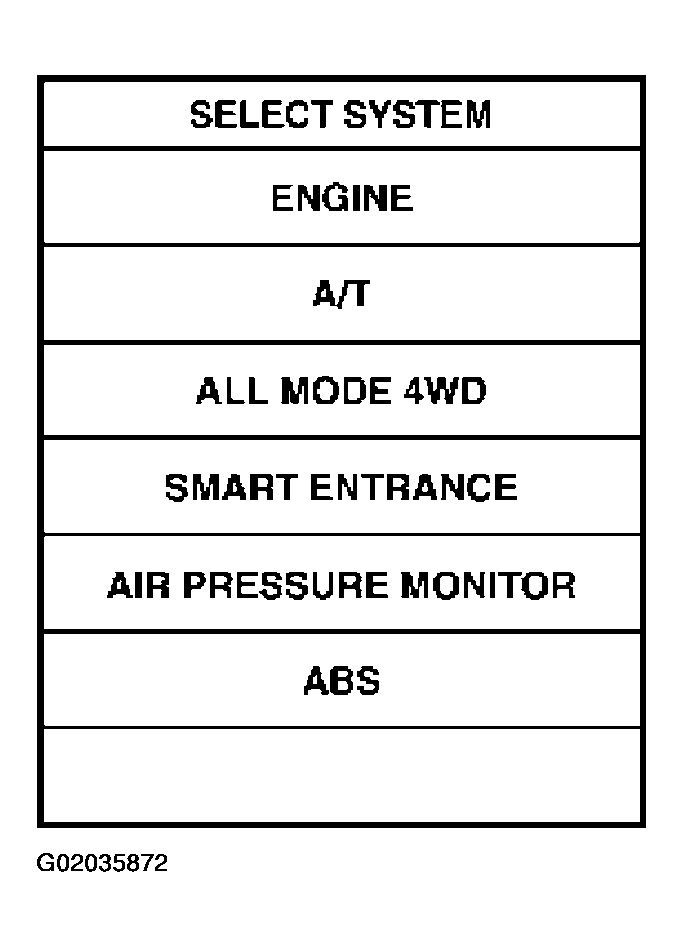

Fig 3: CONSULT-II Display - Touch "SMART ENTRANCE"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "RETAINED PWR".

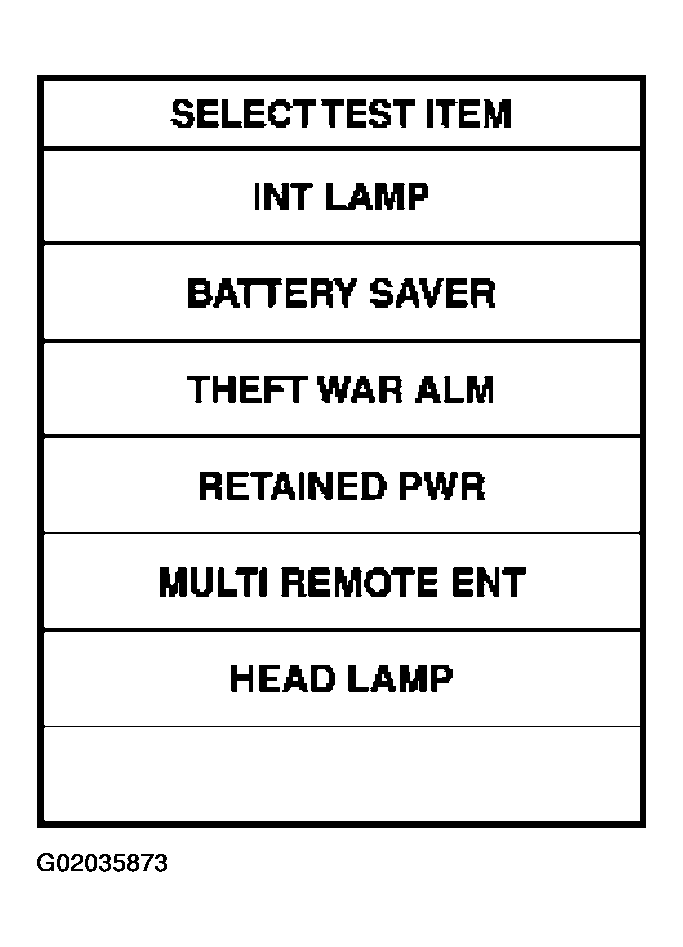

Fig 4: CONSULT-II Display - Touch "RETAINED PWR"
Courtesy of NISSAN MOTOR CO., U.S.A.
Select diagnosis mode.
"DATA MONITOR", "ACTIVE TEST" and "WORK SUPPORT" are available.

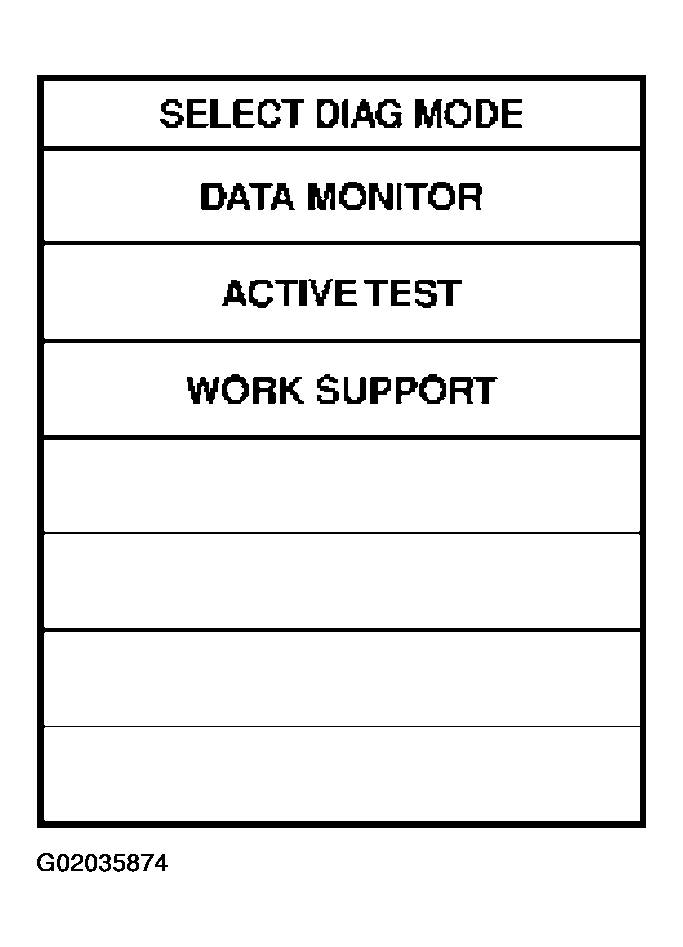

Fig 5: CONSULT-II Display - Self Diagnosis Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
