Oil Pressure Switch Check

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

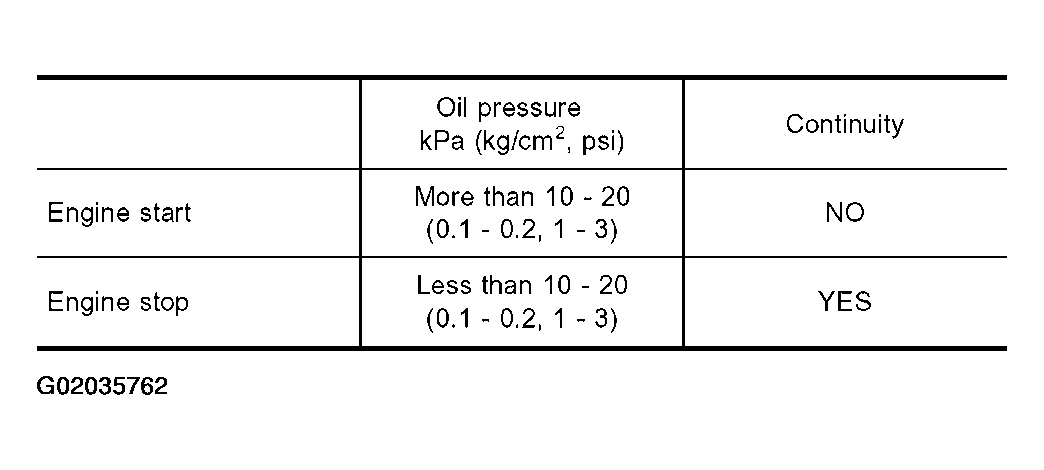

Fig 1: Checking Oil Pressure
G02035762Courtesy of NISSAN MOTOR CO., U.S.A.

Check the continuity between the terminals of oil pressure switch and body ground.

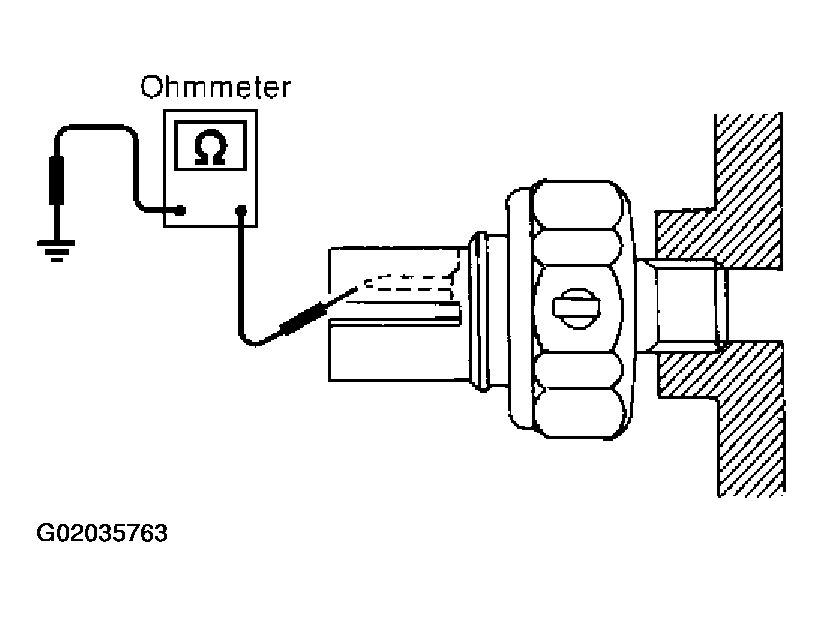

Fig 2: Oil Pressure Switch Continuity Specifications
G02035763Courtesy of NISSAN MOTOR CO., U.S.A.
