Power Supply Circuit Check

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

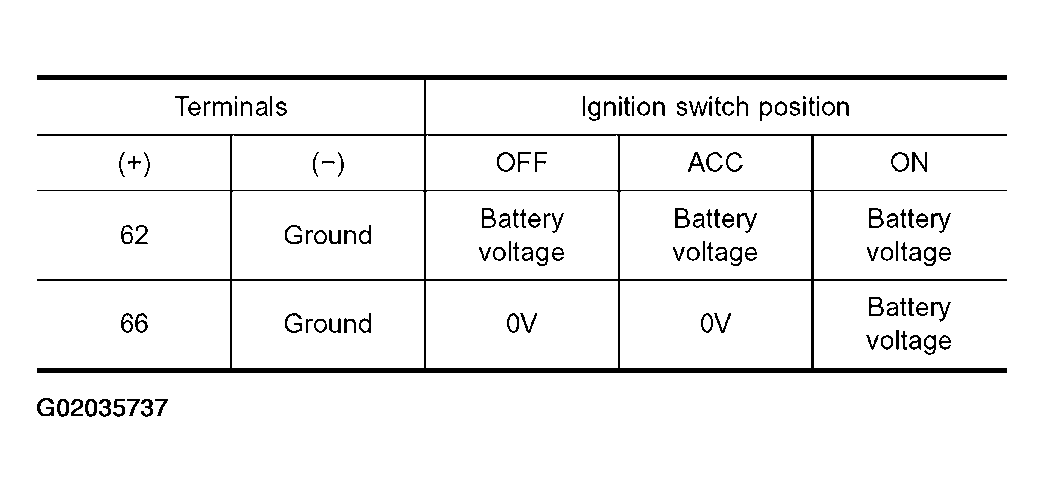

Fig 1: Terminals Voltage Specifications
G02035737Courtesy of NISSAN MOTOR CO., U.S.A.

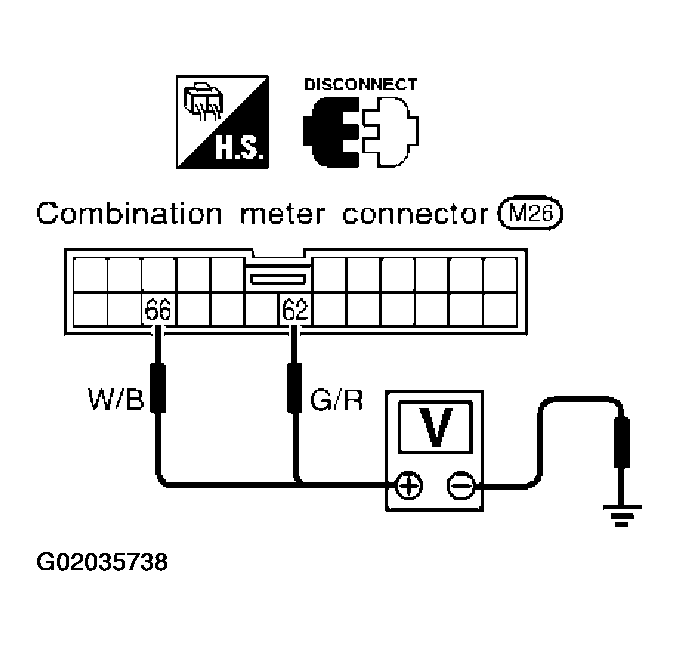

Fig 2: Checking Power Supply Circuit
G02035738Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, check the following.
