How To Alternate Diagnosis Mode

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch to ON and change odo/trip meter to "TRIP A" or "TRIP B".
  2. Turn ignition switch to OFF.
  3. Turn ignition switch to ON when pushing odo/trip meter switch.
  4. Push odo/trip meter switch 1 second.
  5. Release odo/trip meter switch.
  6. Push odo/trip meter switch more than three times within 7 seconds.
  7. All odo/trip meter segments should be turned on.
    NOTE: If some segments are not turned on, unified meter control unit with odo/trip meter should be replaced.

    At this point, the unified control meter is turned to diagnosis mode.

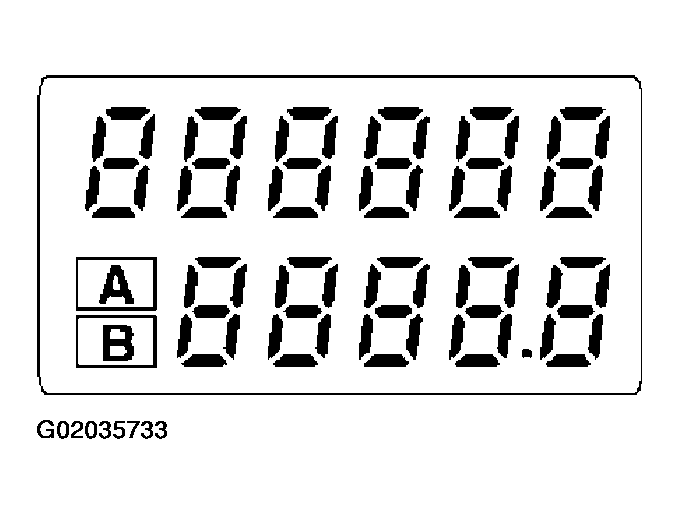

    Fig 1: ODO/Trip Meter Display
    G02035733Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Push odo/trip meter switch. Indication of each meter/gauge should be as shown left during pushing odo/trip meter switch if it is no malfunctioning.
    NOTE: It takes about a few seconds for indication of fuel gauge and water temperature gauge to become stable.

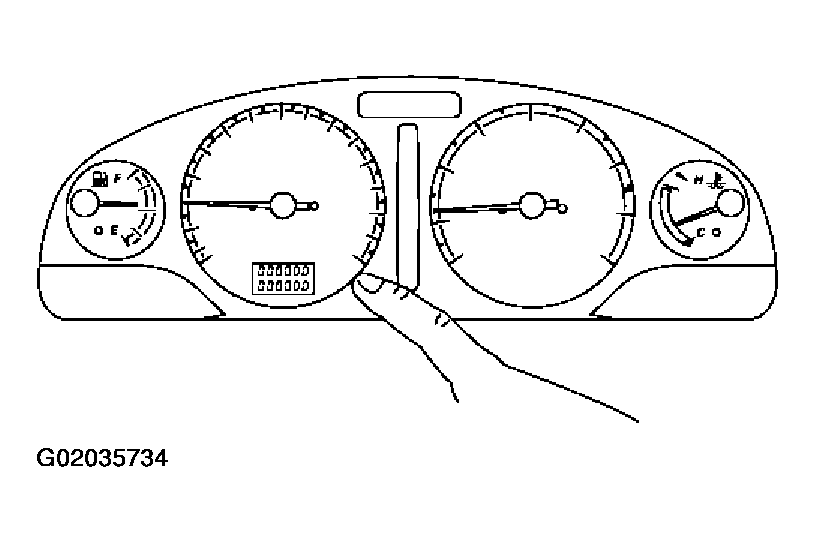

    Fig 2: Pushing ODO/Trip Meter Switch
    G02035734Courtesy of NISSAN MOTOR CO., U.S.A.
