Fuel Level Sensor Unit Check

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

For removal, refer to FUEL SYSTEM .
Check the resistance between terminals 3 and 2.

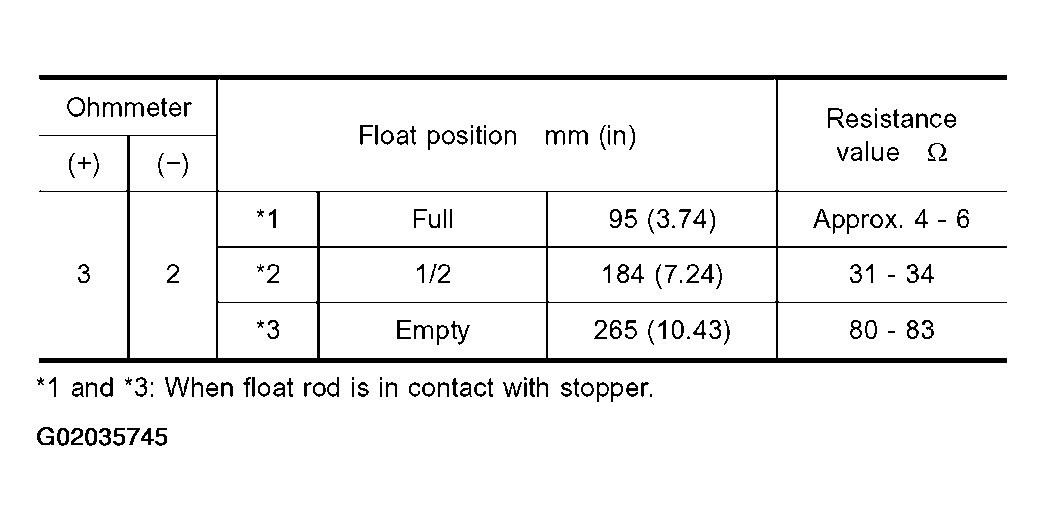

Fig 1: Terminal Resistance Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.

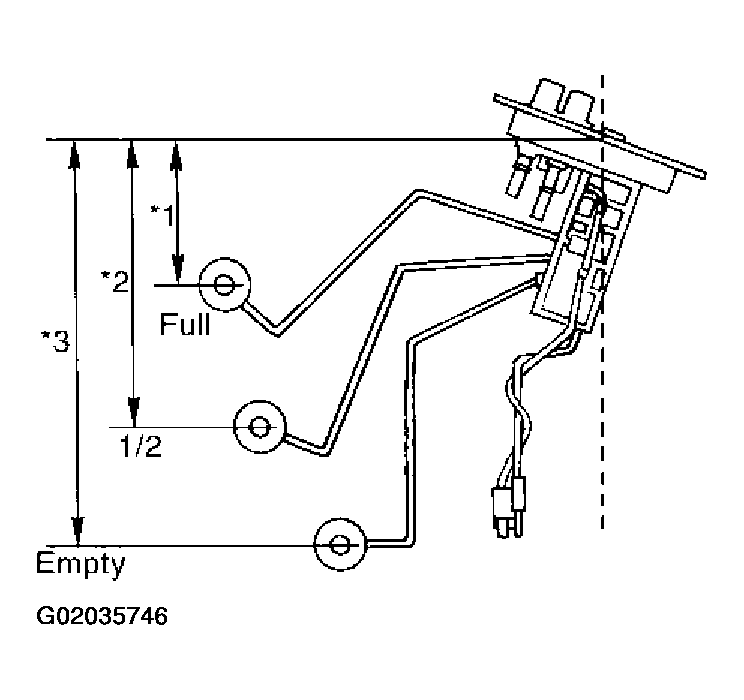

Fig 2: Checking Fuel Level Sensor Unit
Courtesy of NISSAN MOTOR CO., U.S.A.
