Daytime Light Control Unit Inspection

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

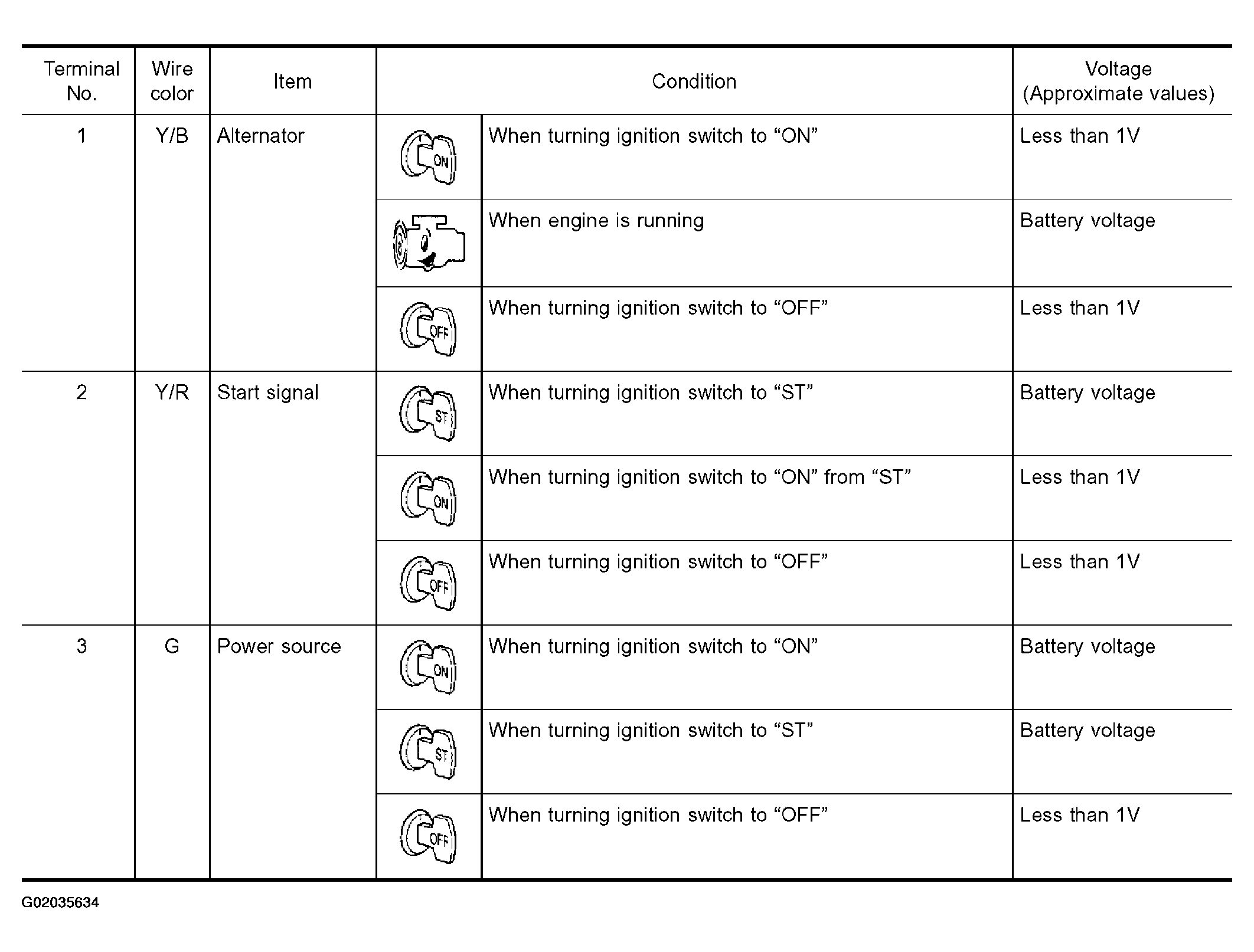

Fig 1: Daytime Light Control Unit Inspection Chart (1 Of 2)
G02035634Courtesy of NISSAN MOTOR CO., U.S.A.

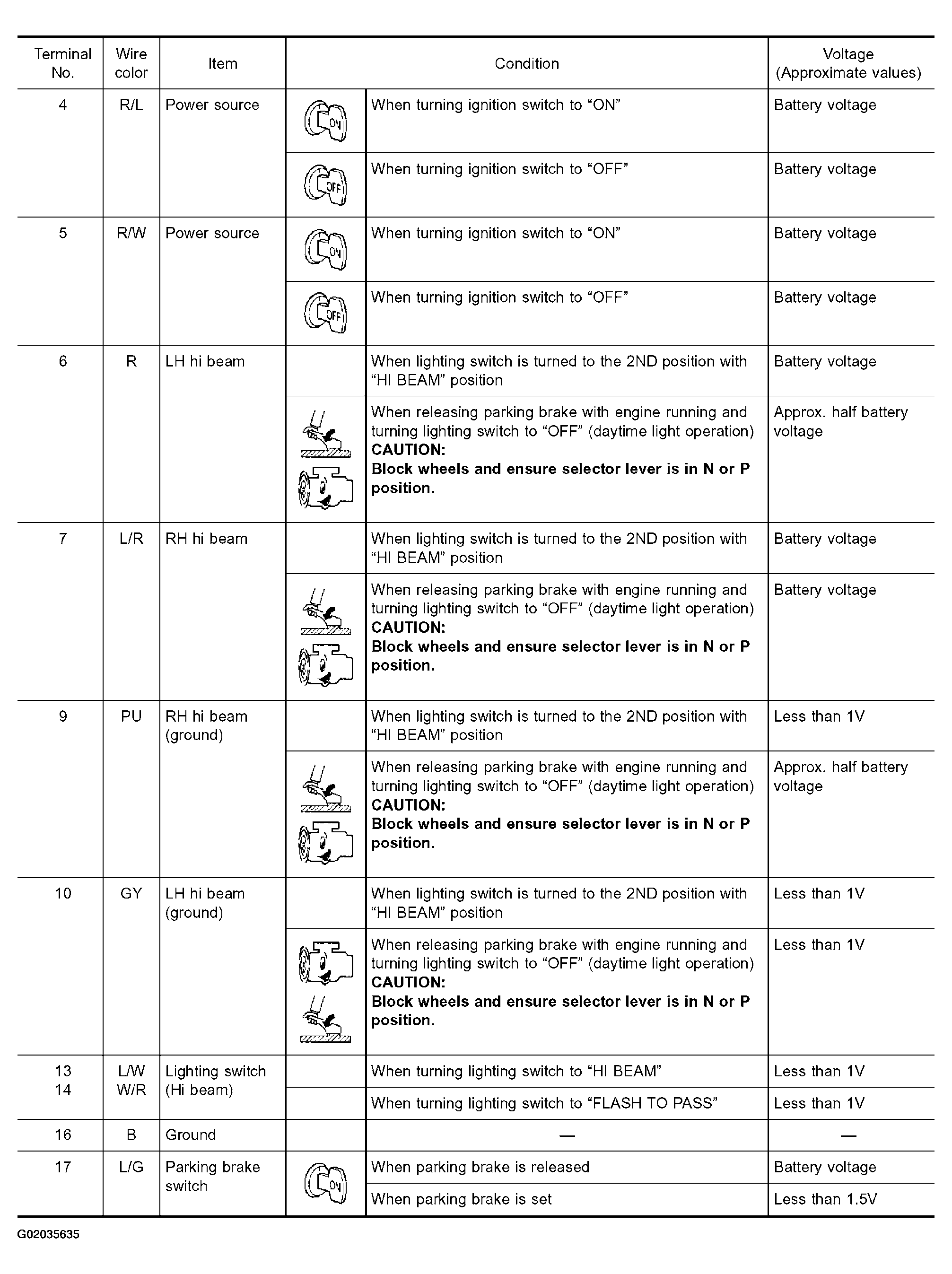

Fig 2: Daytime Light Control Unit Inspection Chart (2 Of 2)
G02035635Courtesy of NISSAN MOTOR CO., U.S.A.
