System Description: Operation

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

After starting the engine with the lighting switch in the "OFF" or "1ST" position, the headlamp high beam automatically turns on. Lighting switch operations other than the above are the same as conventional light systems.

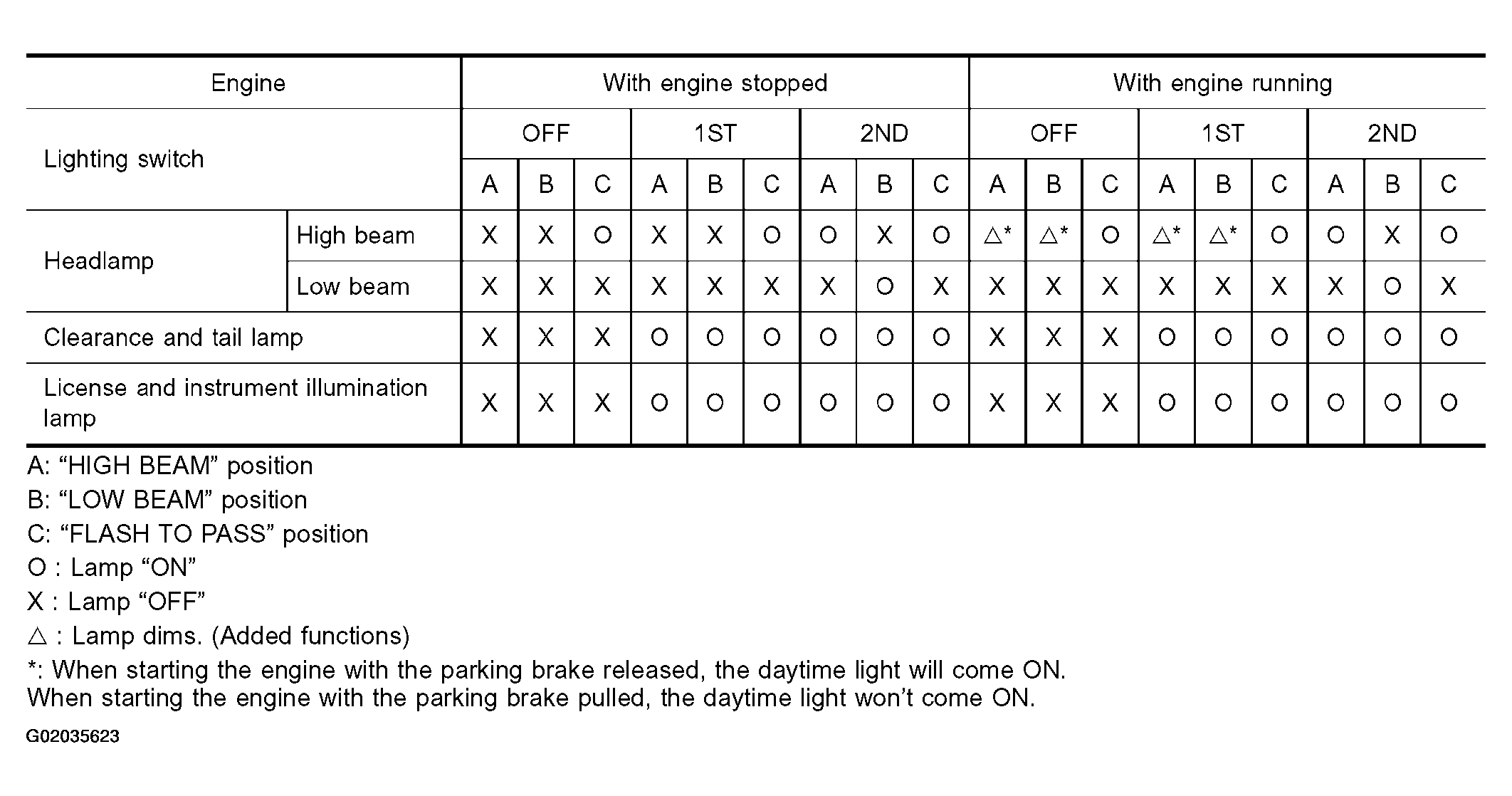

Fig 1: Daytime Light Operation Chart
G02035623Courtesy of NISSAN MOTOR CO., U.S.A.
