Component Parts and Harness Connector Location

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

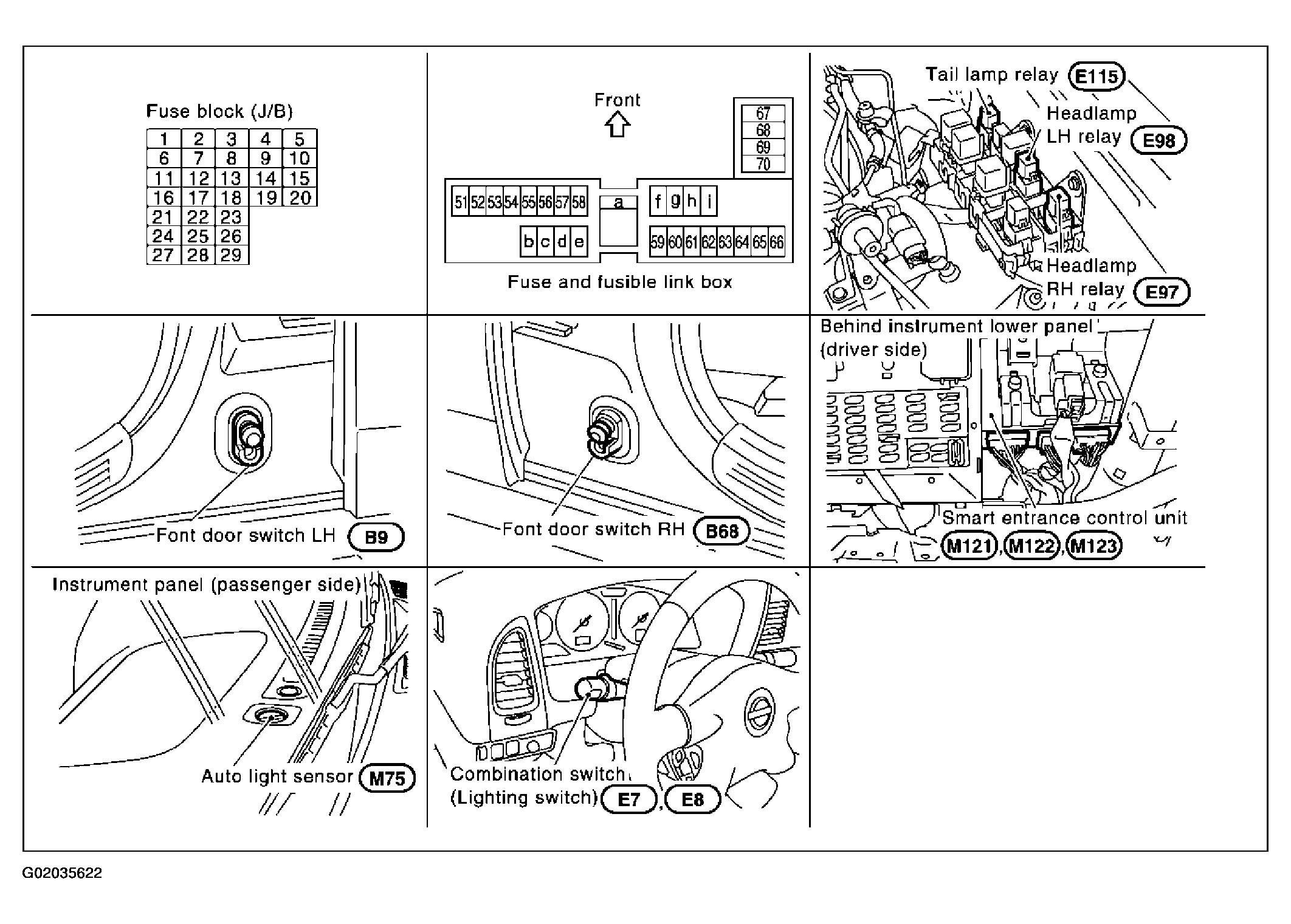

Fig 1: Locating Headlamp Components And Harness Connector (For Canada) Daytime Light System
G02035622Courtesy of NISSAN MOTOR CO., U.S.A.
