Trouble Diagnoses

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

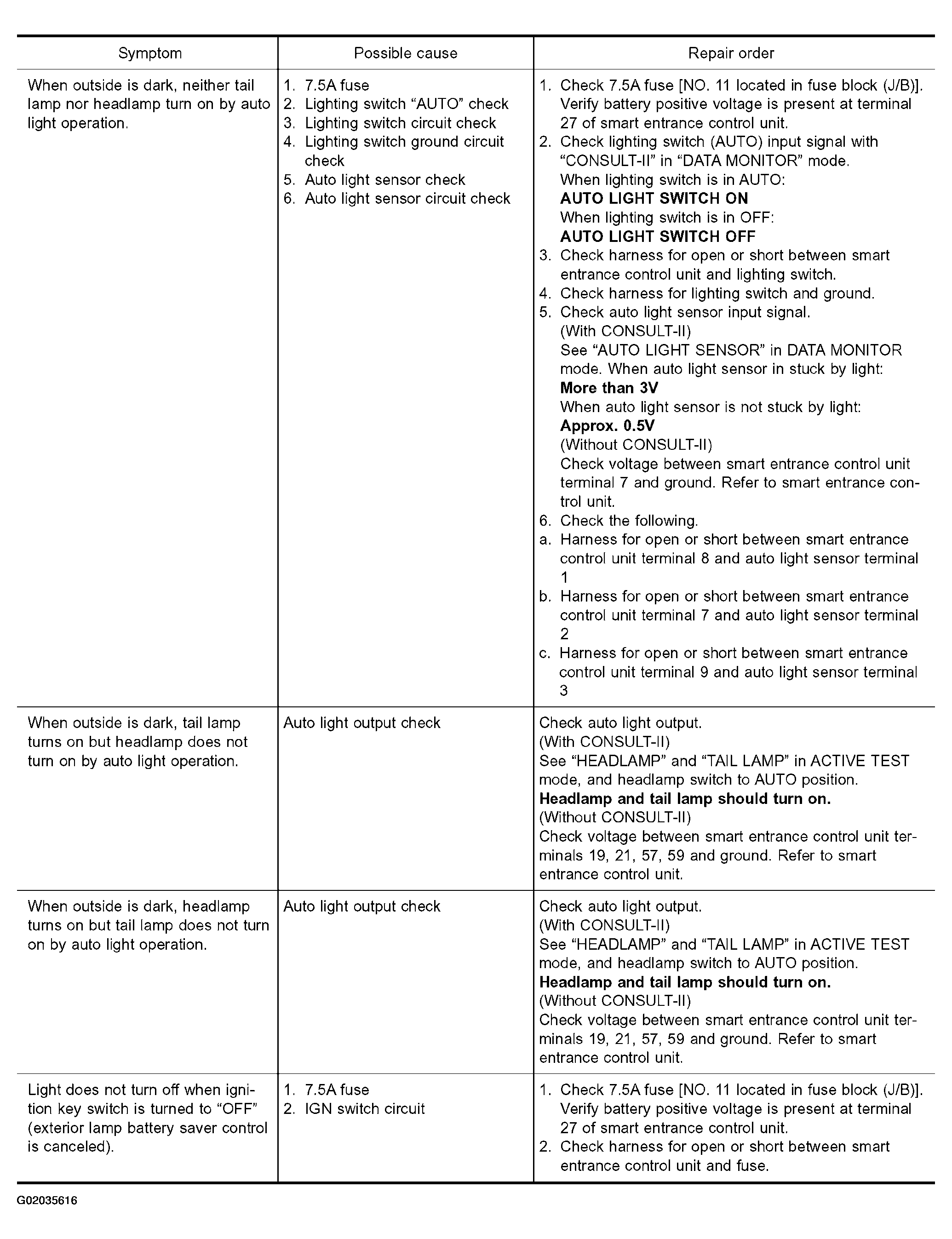

Fig 1: Trouble Diagnose Chart (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

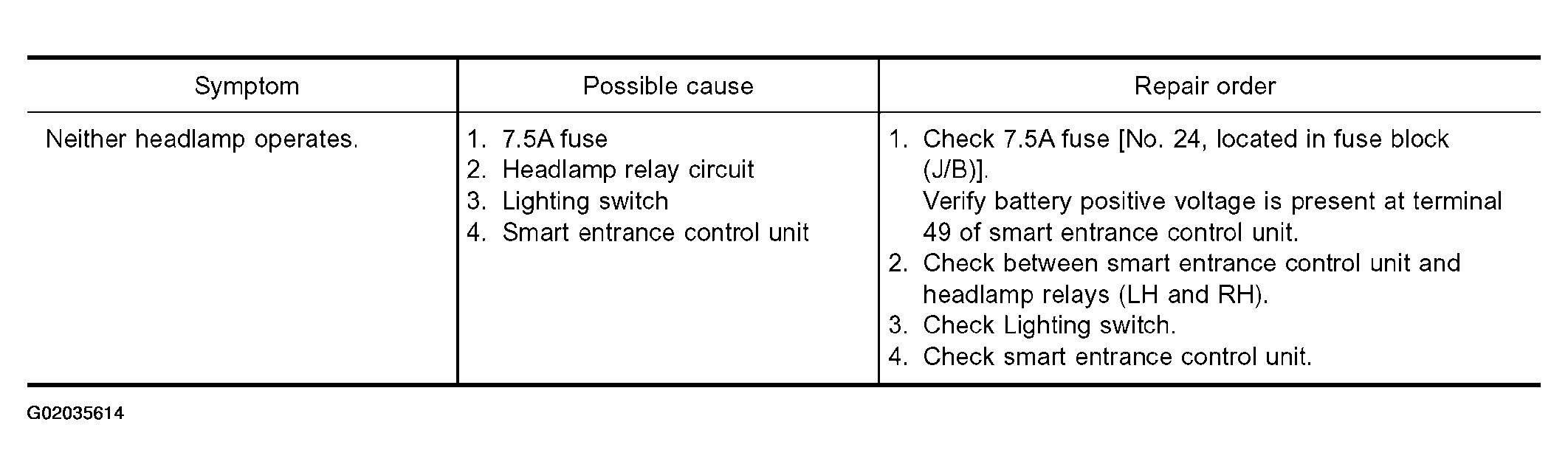

Fig 2: Trouble Diagnose Chart (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

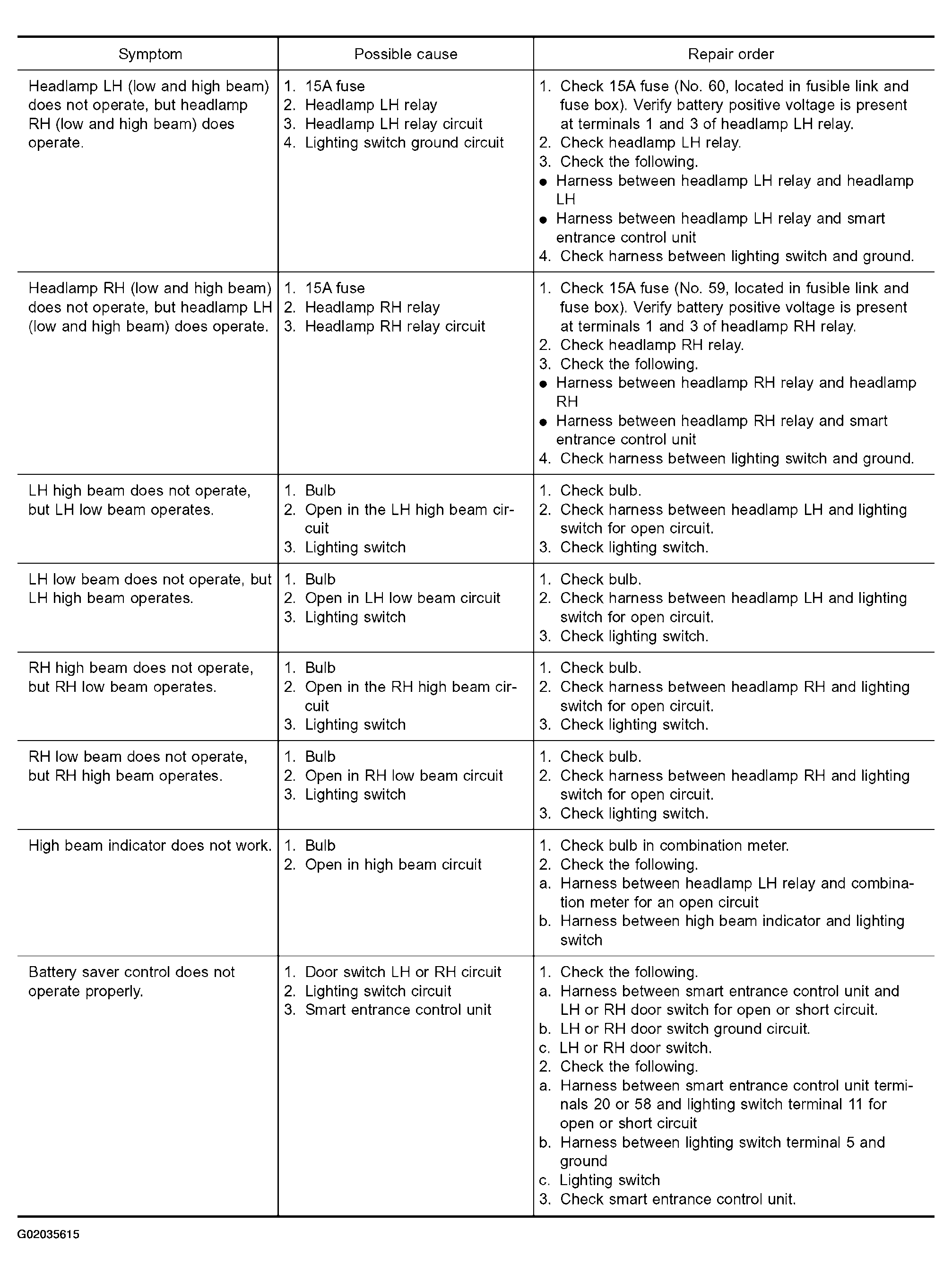

Fig 3: Trouble Diagnose Chart (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

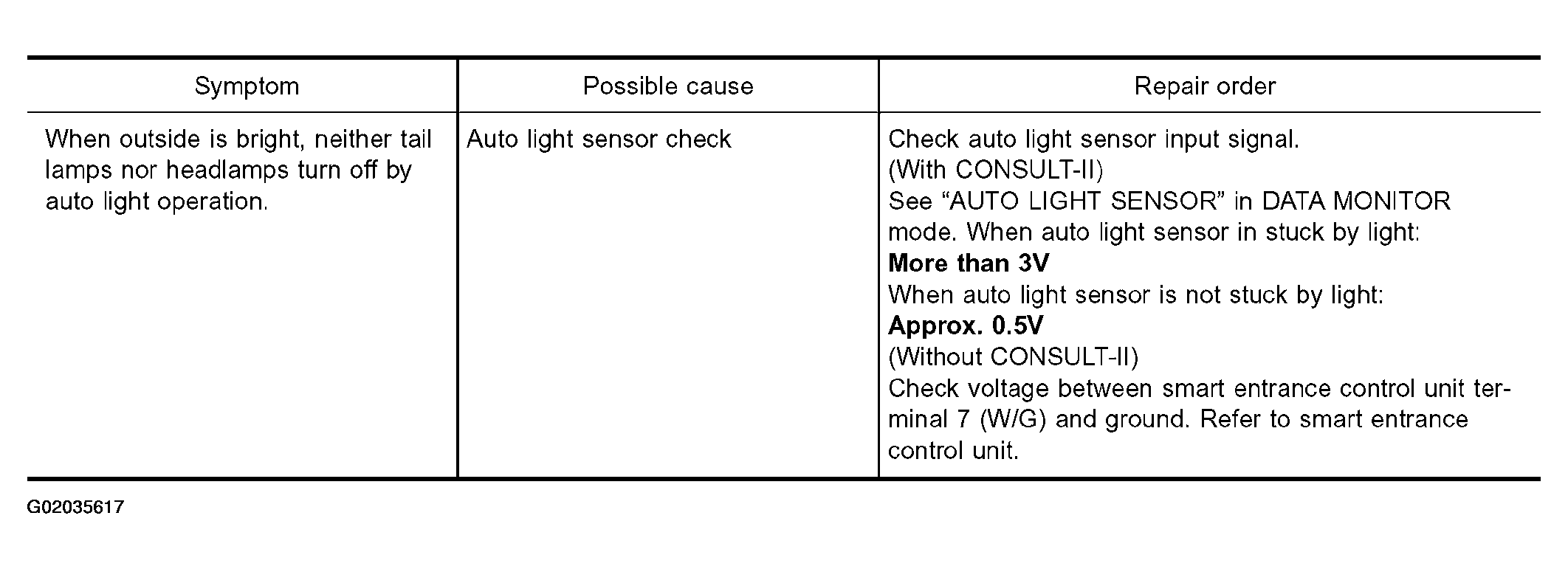

Fig 4: Trouble Diagnose Chart (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
