Low Beam

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

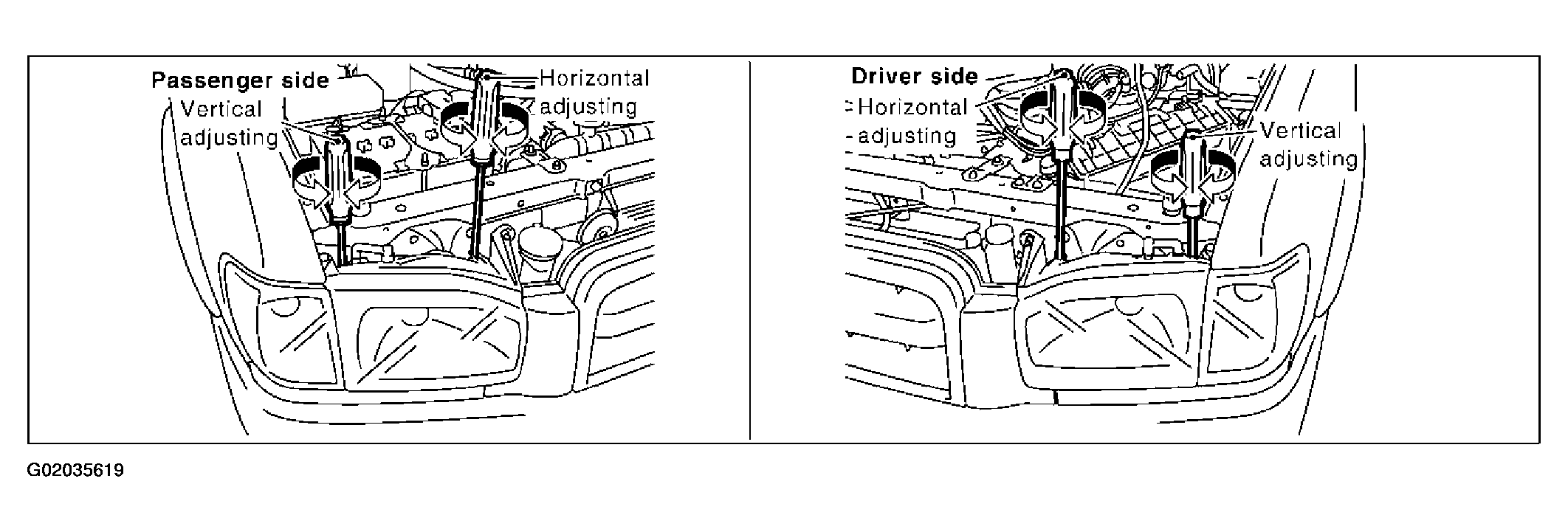

Fig 1: Identifying Low Beam Adjustment (Passenger And Driver Side)

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove aiming adjusting screw cap.
Turn headlamp low beam on.
Use adjusting screws to perform aiming adjustment.
- First tighten the adjusting screw all the way and then make adjustment by loosening the screw.

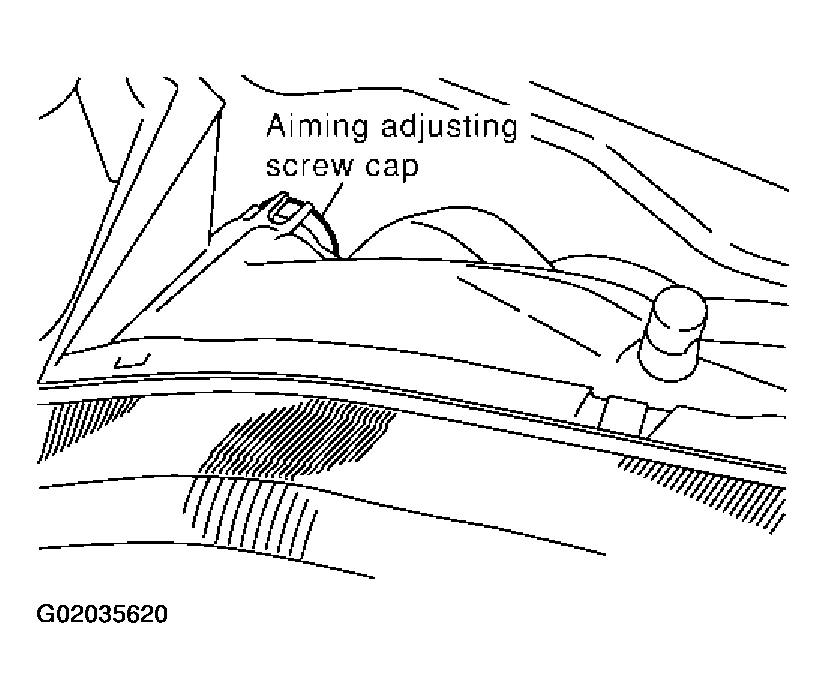

  Fig 2: Removing Aiming Adjusting Screw Cap
  Courtesy of NISSAN MOTOR CO., U.S.A.

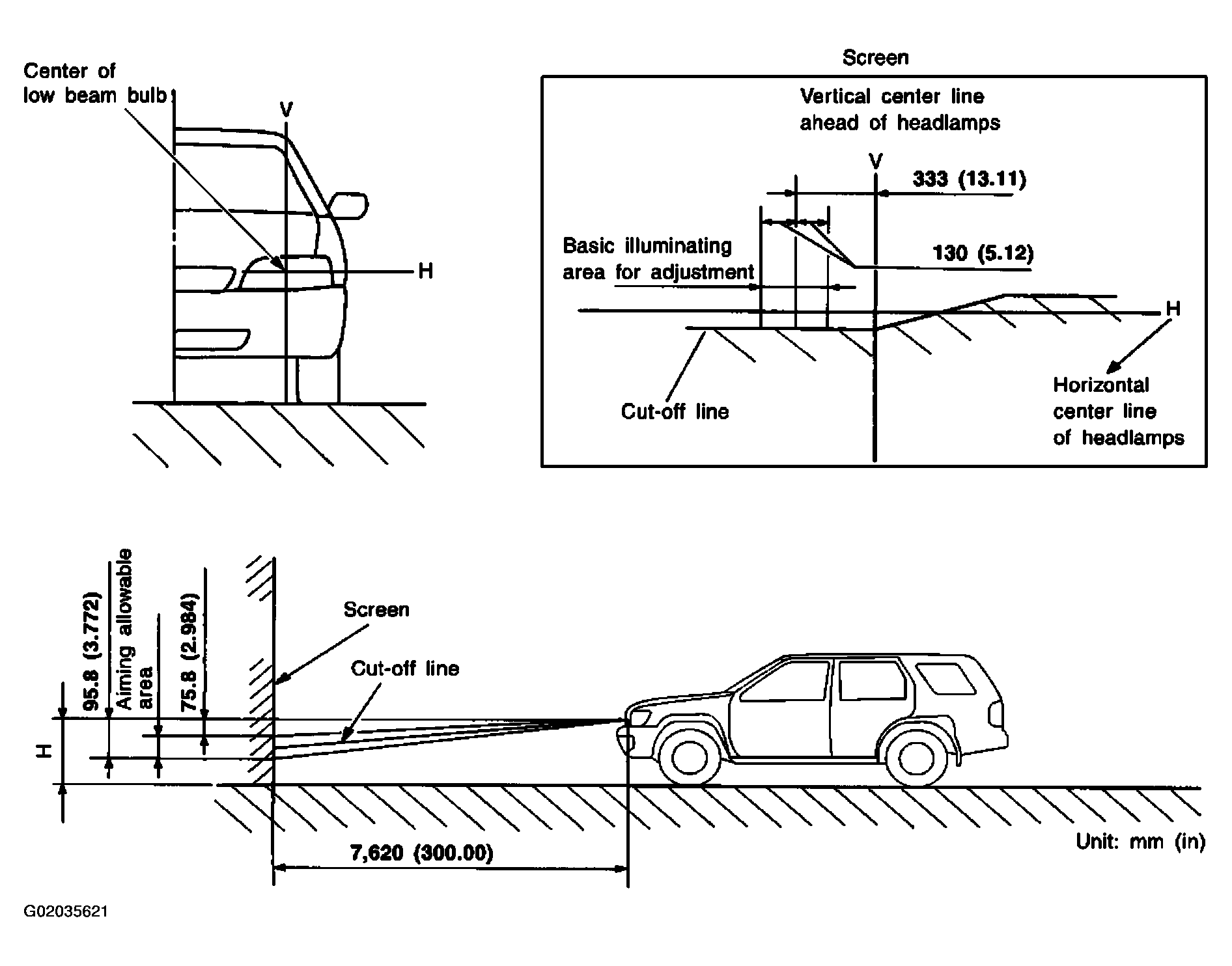

  Fig 3: Headlamp Aiming Adjustment Chart (USA Model)
  Courtesy of NISSAN MOTOR CO., U.S.A.

  If the vehicle front body has been repaired and/or the headlamp assembly has been replaced, check aiming. Use the aiming chart shown in the figure.
- Basic illuminating area for adjustment should be within the range shown on the aiming chart. Adjust headlamps accordingly.
