Ignition Power Supply - Ignition SW. In "On" And/Or "Start"
WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

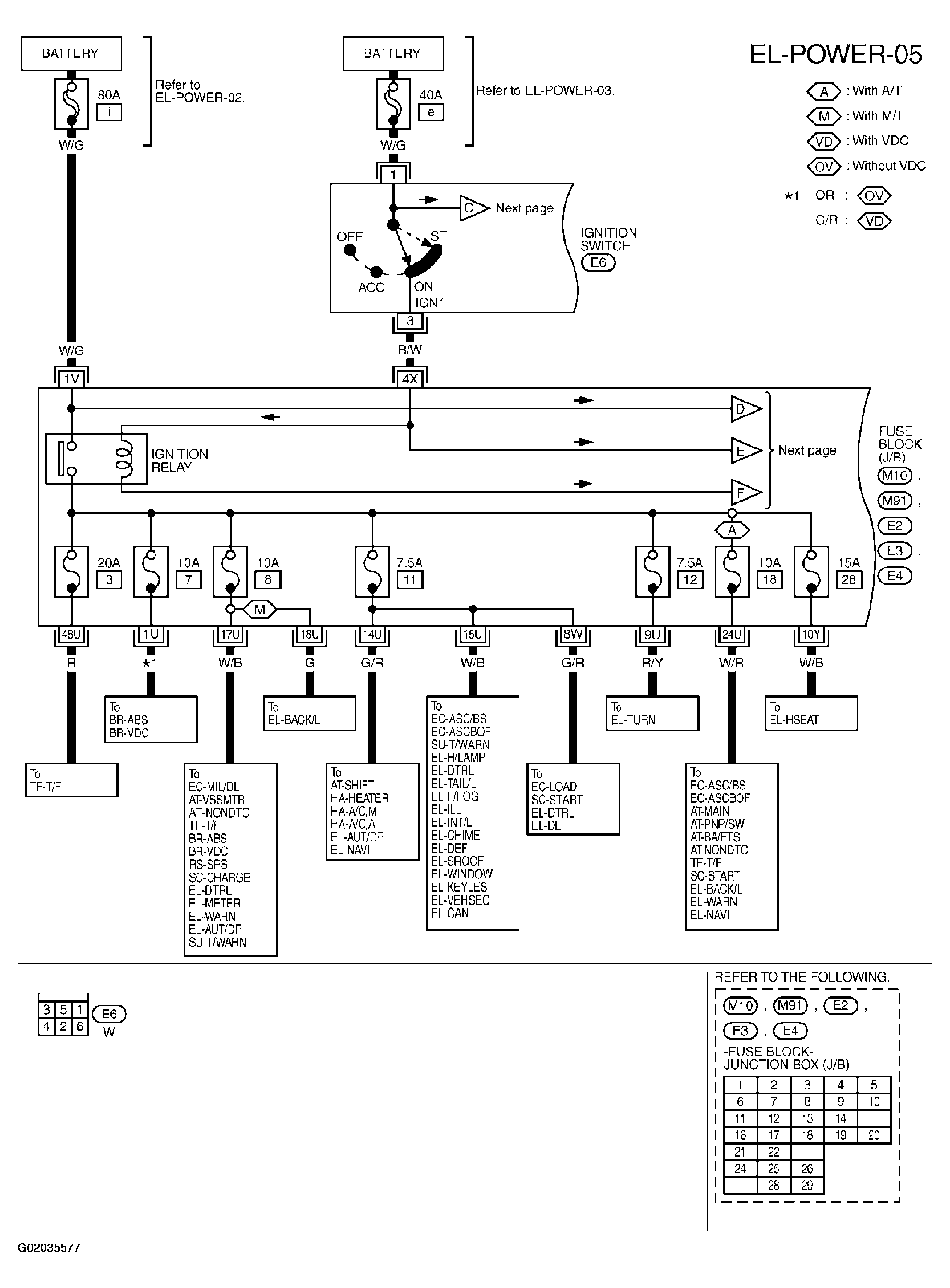

Fig 1: Ignition Power Supply - Ignition Sw. In "ON" And/Or "START" (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

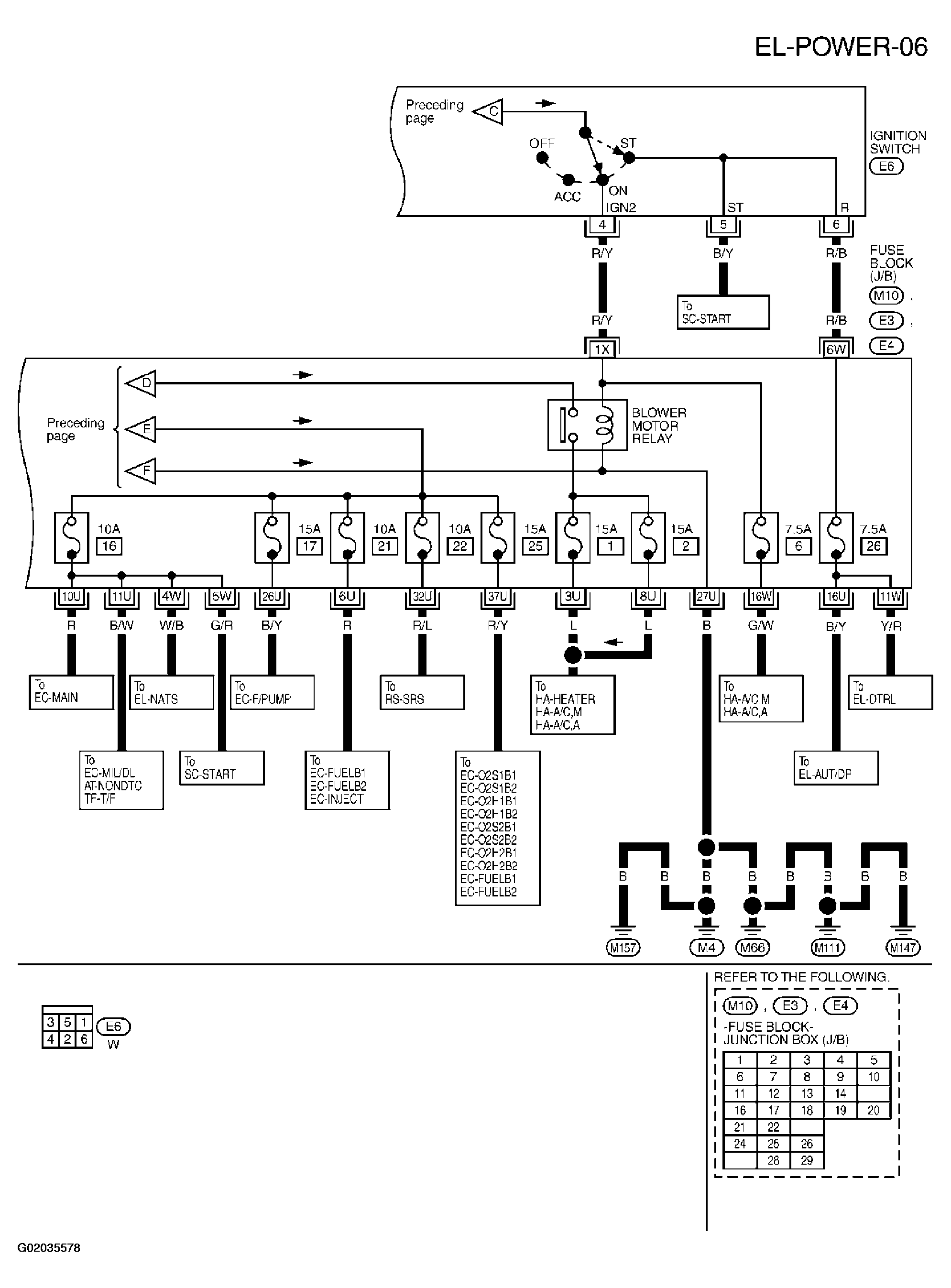

Fig 2: Ignition Power Supply - Ignition Sw. In "ON" And/Or "START" (1 Of 2)
