Battery Power Supply - Ignition SW. In Any Position
WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

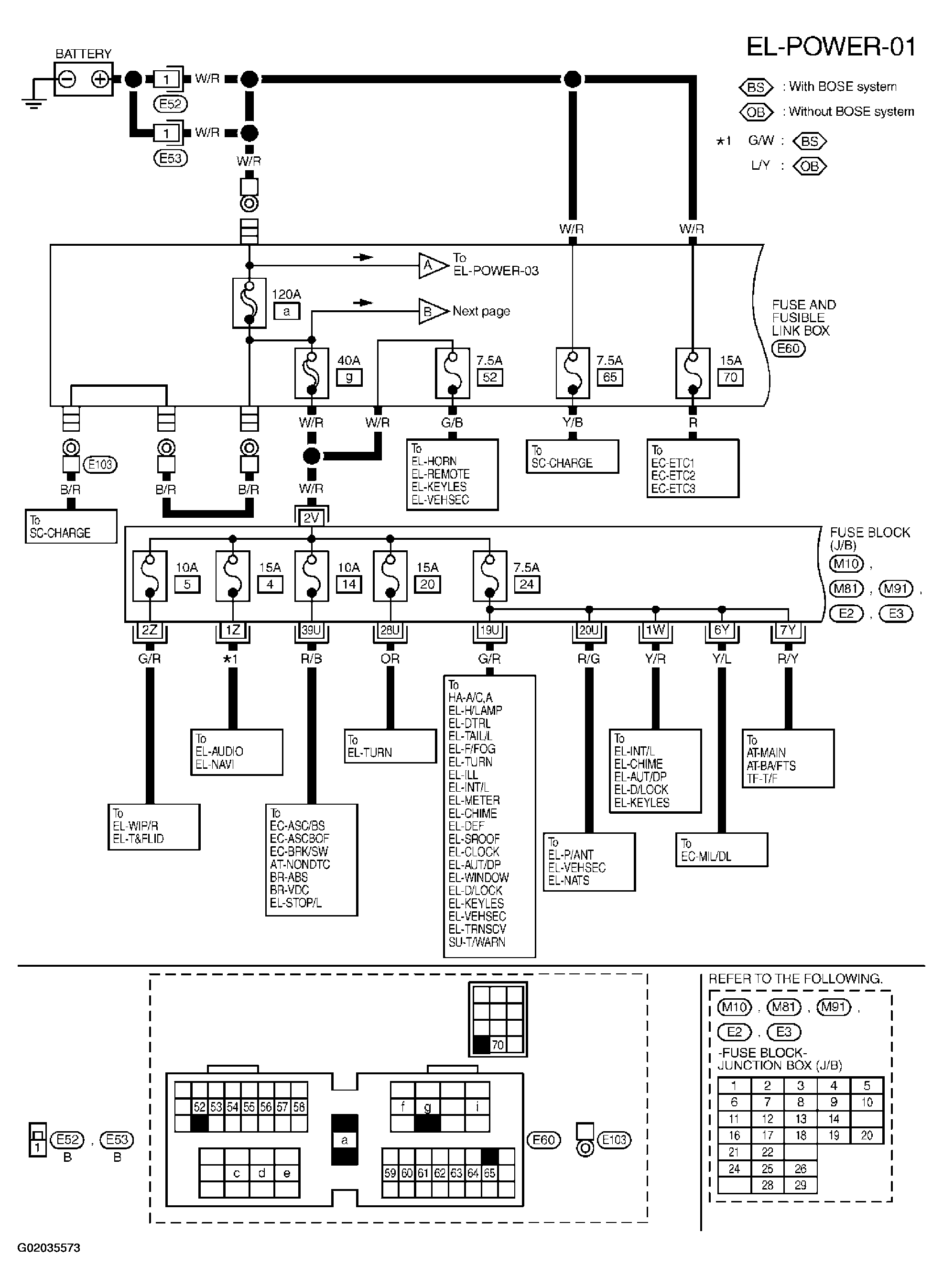

Fig 1: Battery Power Supply - Ignition Sw. In Any Position (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

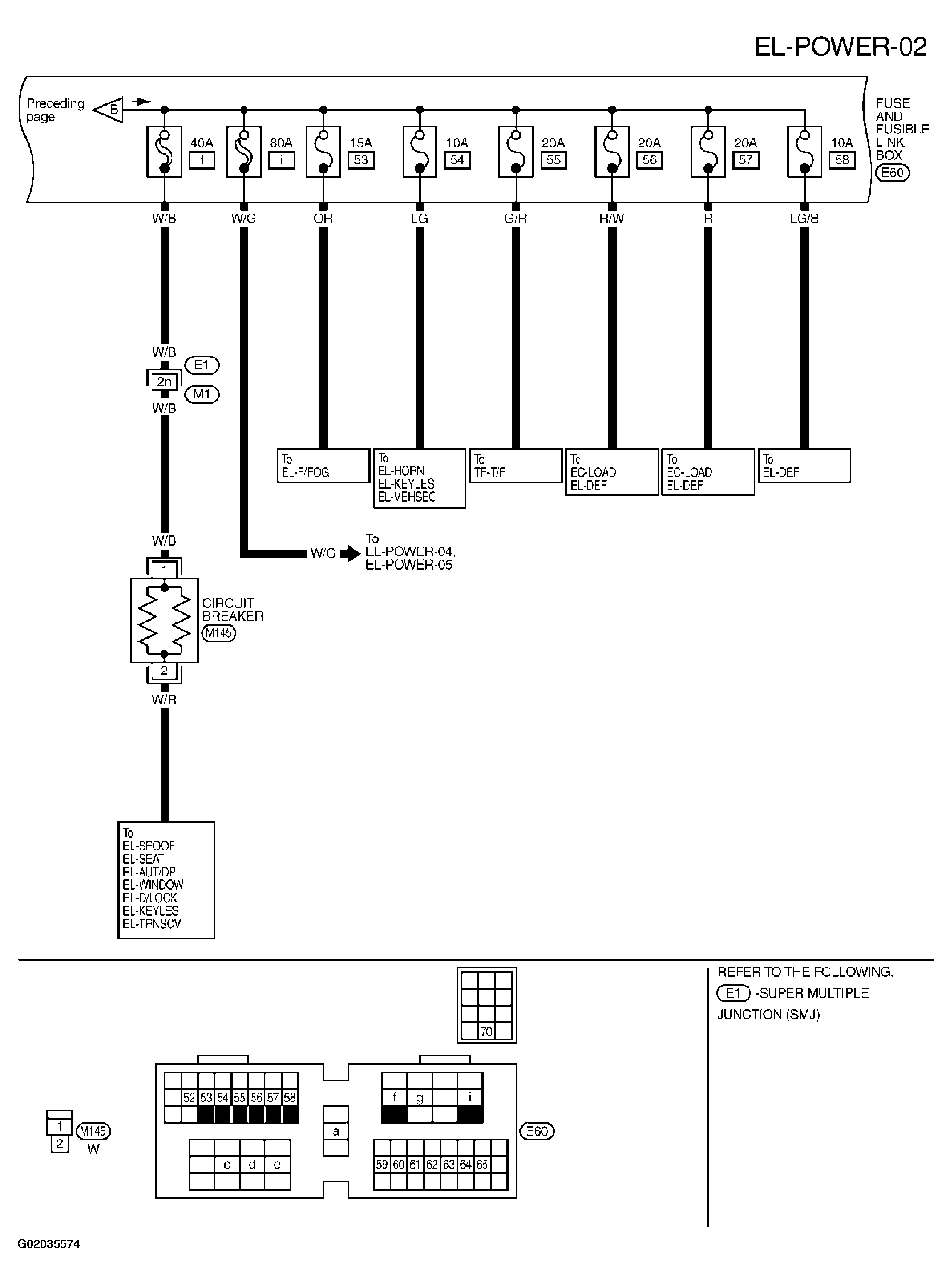

Fig 2: Battery Power Supply - Ignition Sw. In Any Position (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

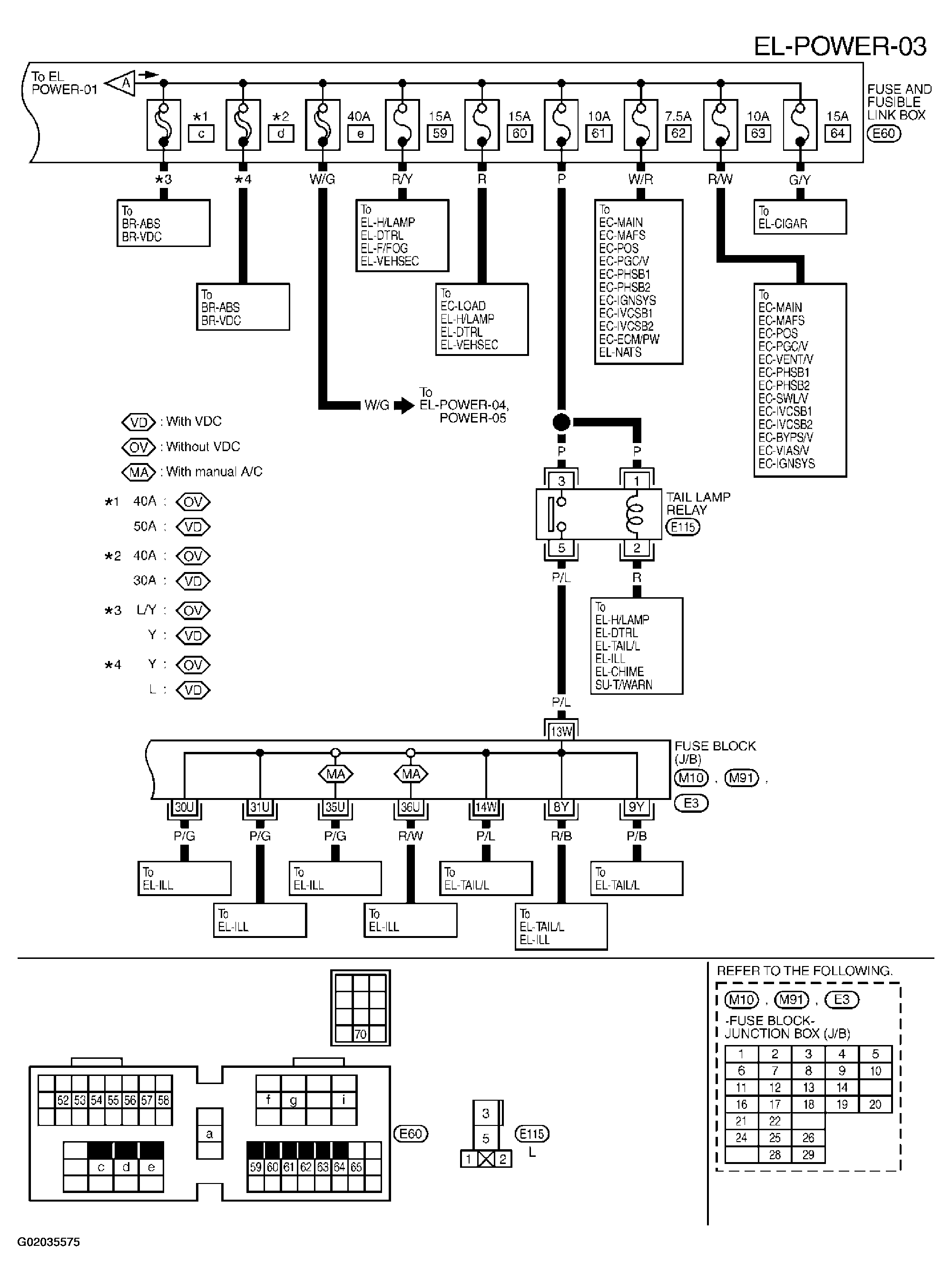

Fig 3: Battery Power Supply - Ignition Sw. In Any Position (3 Of 3)
