Wind Deflector

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open lid.
  2. Check visually for proper installation.
  3. Check to ensure a proper amount of petroleum jelly has been applied to wind deflector connection points; apply if necessary.

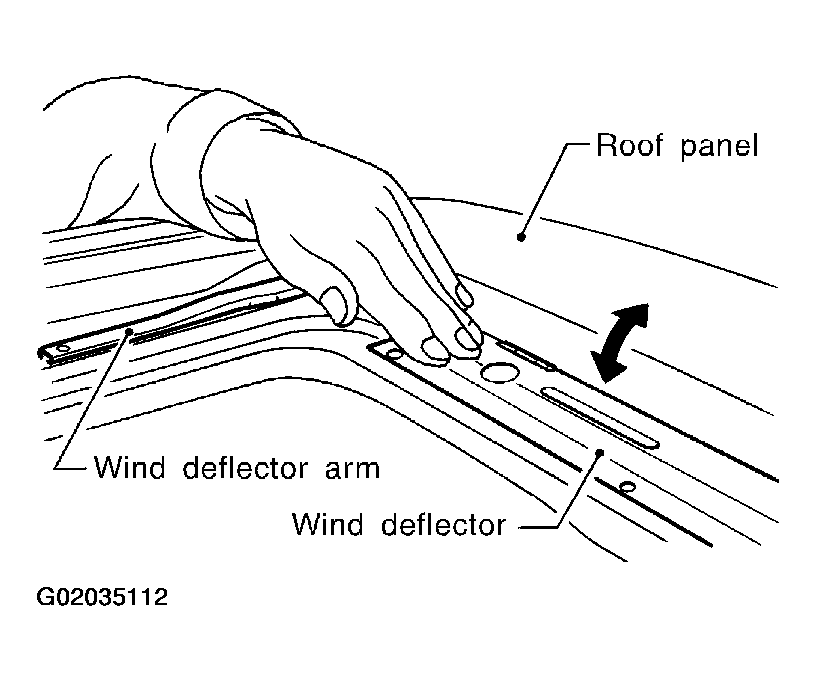

    Fig 1: Identifying Wind Deflector
    G02035112Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Check that wind deflector is properly retracted by hand. If it is not, remove and visually check condition. (Refer to removal procedures, REMOVAL AND INSTALLATION  .) If wind deflector is damaged, replace with new one. If wind deflector is not damaged, re-install properly.

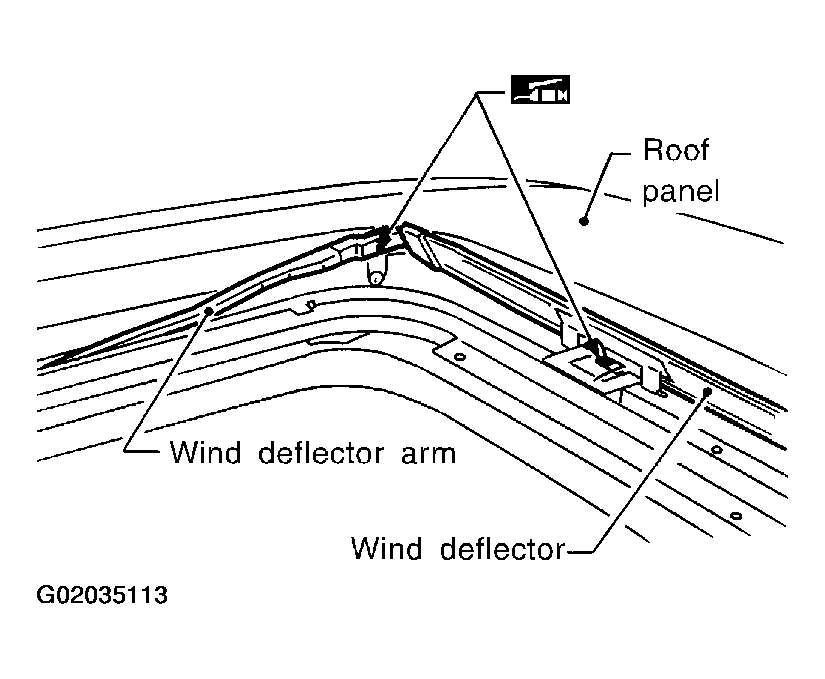

    Fig 2: Checking Wind Deflector Is Properly Retracted By Hand
    G02035113Courtesy of NISSAN MOTOR CO., U.S.A.
