Drain Hoses

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

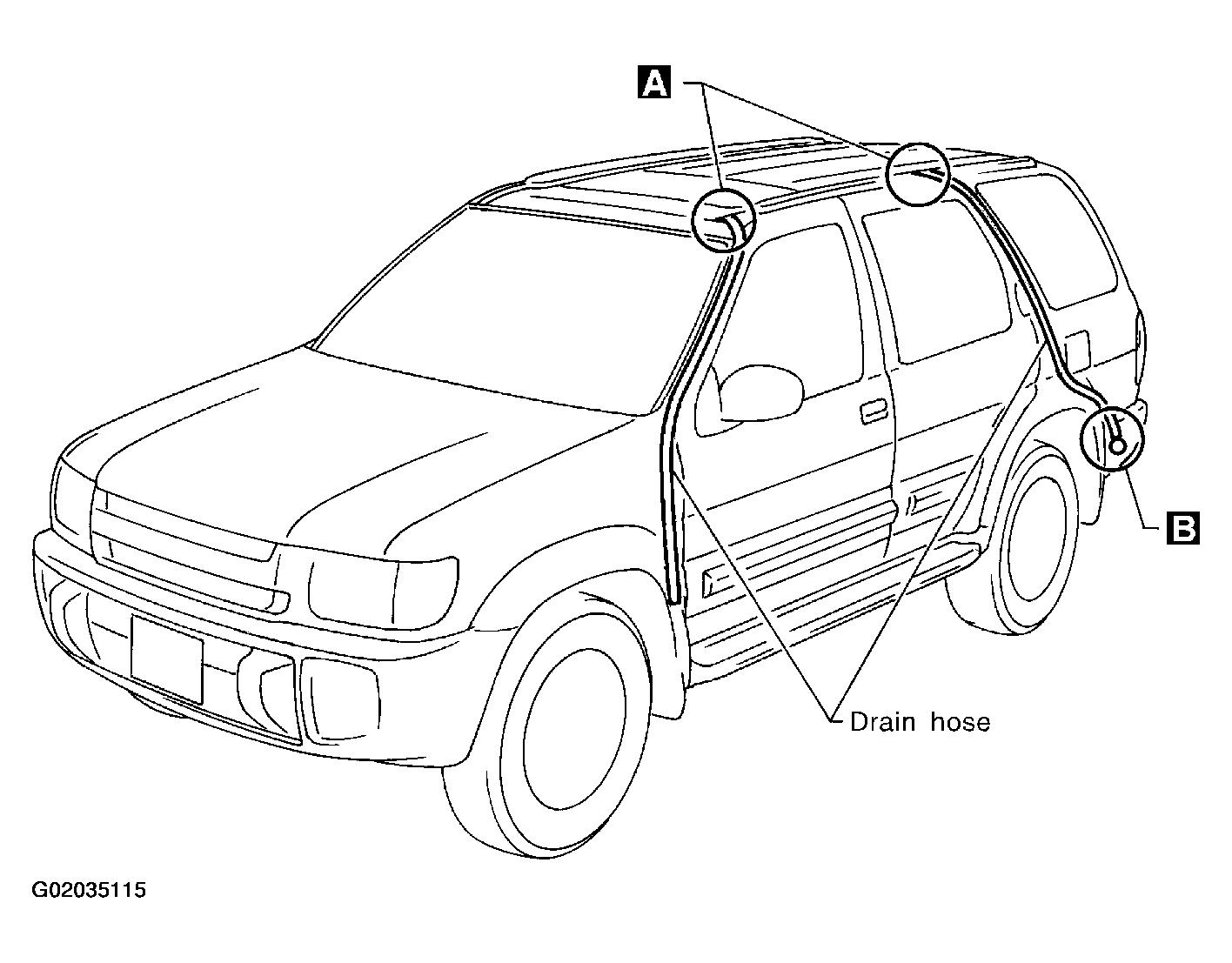

Fig 1: Locating Drain Hoses

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove headlining to access drain hose connections. (Refer to "Removal and Installation" in "ROOF TRIM " for detail.)
Check visually for proper connections, damage or deterioration.[A] (The figure shows only the front side.)

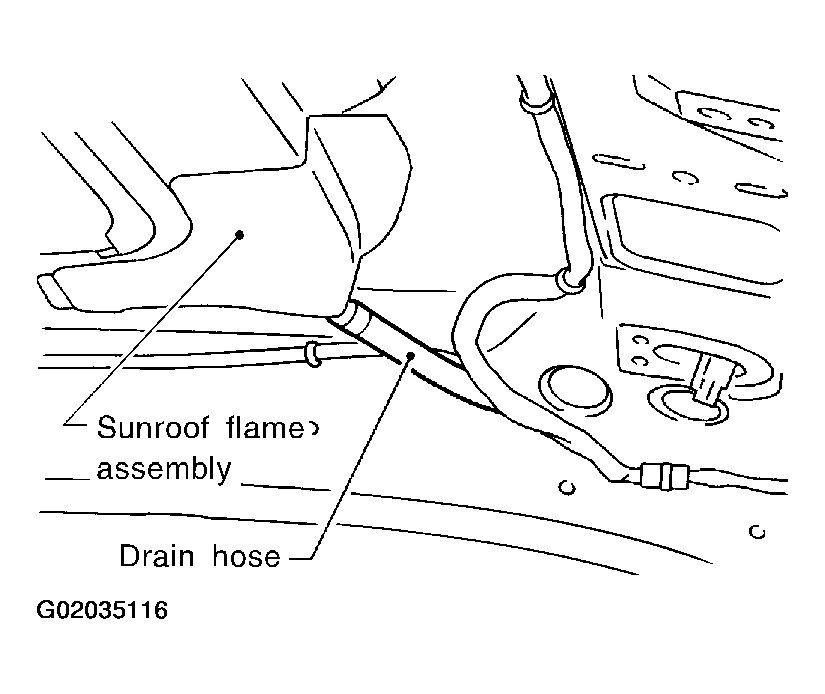

Fig 2: Checking Drain Hose
Courtesy of NISSAN MOTOR CO., U.S.A.
If leakage occurs around luggage room, remove luggage room side trim and check connecting area. Check for proper connection, damage or tear.[B]
Remove drain hoses and check visually for any damage, cracks, or deterioration.
Pour water into drain hoses and find damaged portion.
- If any damaged portion is found at each step, replace the damaged part.

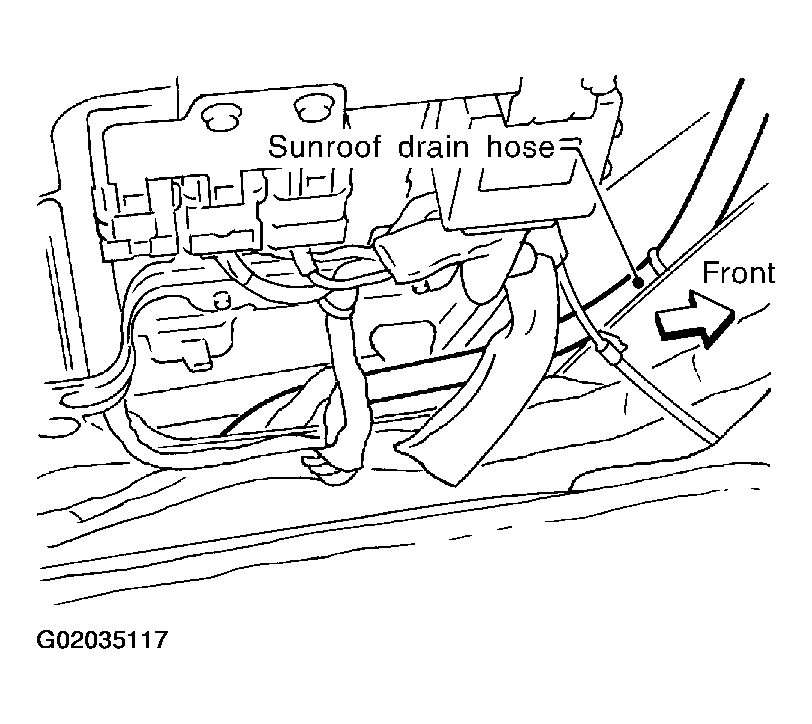

  Fig 3: Locating Sunroof Drain Hose
  Courtesy of NISSAN MOTOR CO., U.S.A.
