Gap Adjustment
WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
- Open shade assembly.
- Tilt glass lid up then remove side trim.
- Loosen glass lid securing nuts (3 each on left and right sides), then tilt glass lid down.

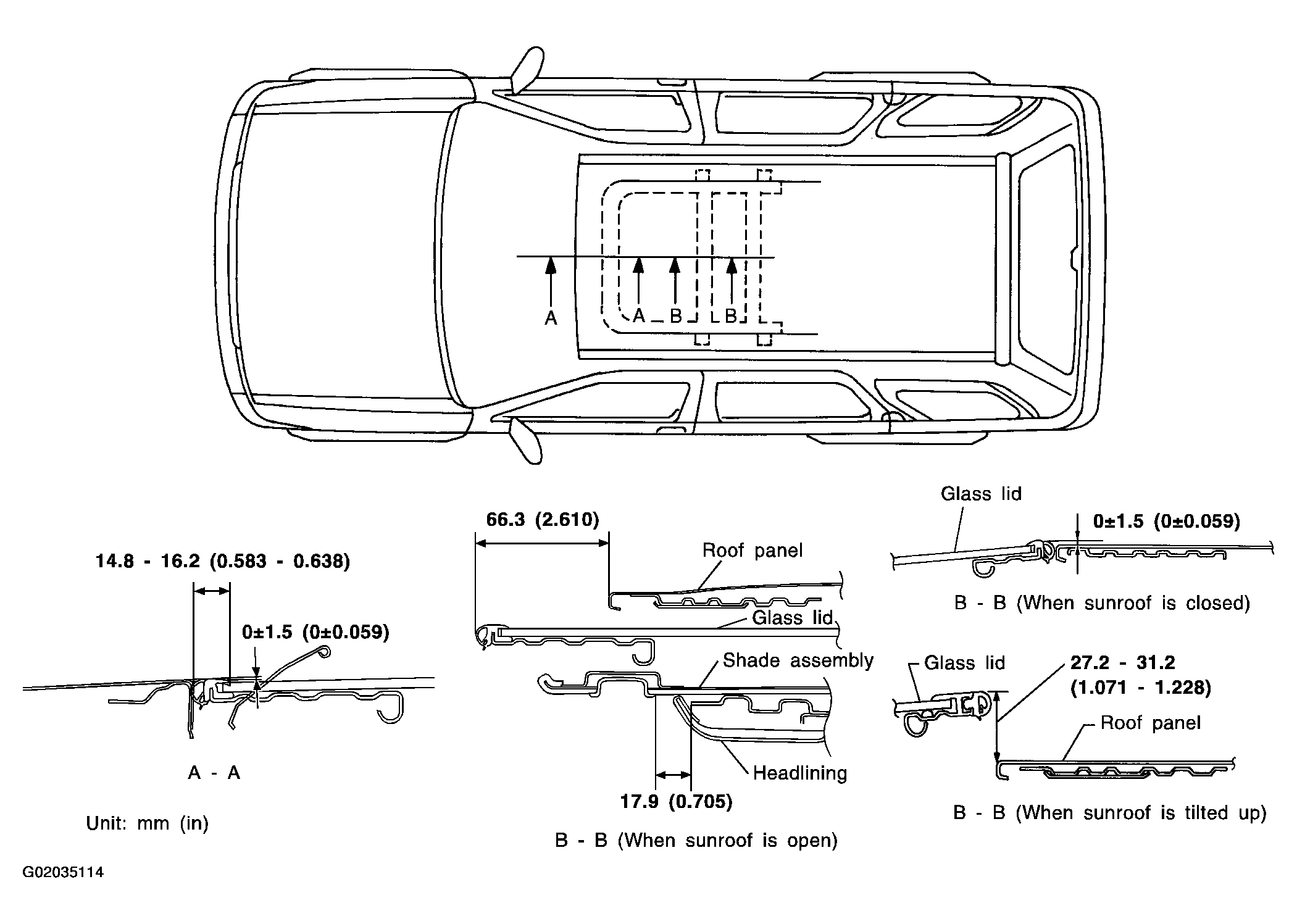

- Adjust glass lid from outside of vehicle so it resembles "A-A" as shown in Figure .
- Tilt glass lid up and down until it is adjusted to "B-B" (When sunroof is closed) as shown in Figure .
- After adjusting glass lid, tilt glass lid up and tighten nuts.
- Tilt glass lid up and down several times to check that it moves smoothly.
