Section 818 (Body & Trim): Sunroof: Adjustment
WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
Install motor & limit SW assembly and sunroof rail assembly in the following sequence:
- Arrange equal lengths of link and wire assemblies on both sides of sunroof opening.
- Connect sunroof connector to vehicles harness.

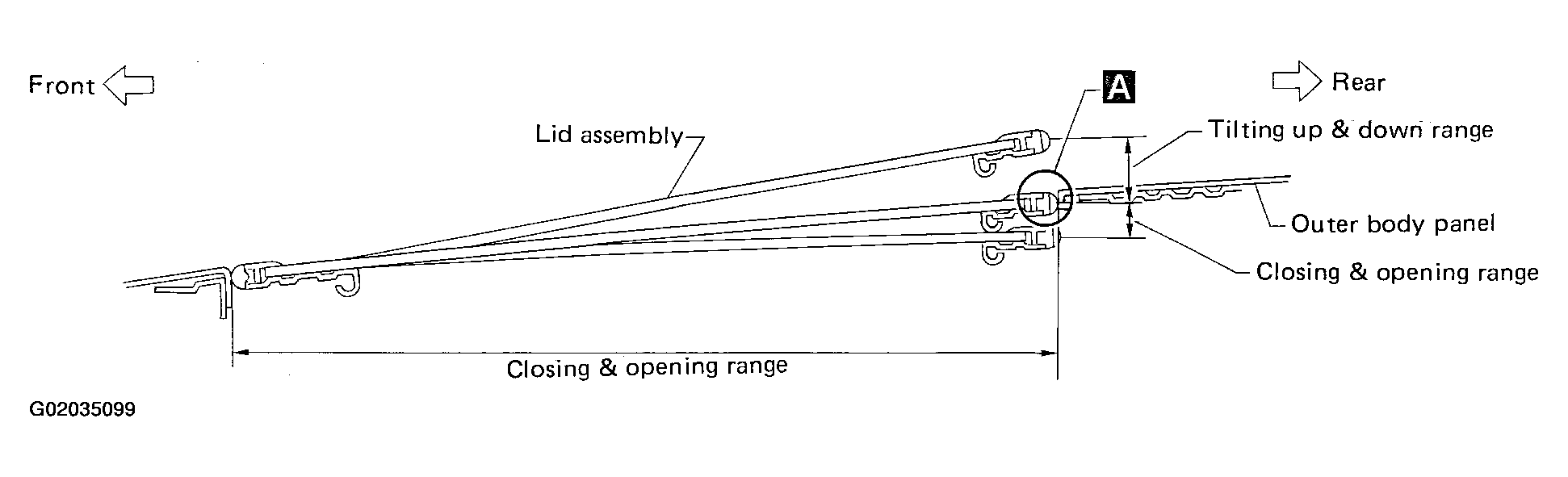

- Set lid assembly to fully closed position [A] by operating OPEN switch and TILT switch. After the lid has closed all the way, keep pushing the tiling switch toward tilt DOWN for more than 1 second.
- Fit outer side of lid assembly to the surface of roof on body outer panel.
- Press TILT-UP switch to check lid assembly for normal tilting.
- Check sunroof lid assembly for normal operations (tilt-up, tilt-down, open, and close).
