Removal and Installation

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from garnishes.
  1. Remove front and rear seats. Refer to "FRONT SEAT  " for details , and "REAR SEAT  " for details.
  2. Remove front and rear seat belts. Refer to "SEAT BELT" for details.
  3. Remove front and rear kicking plates.
  4. Remove dash side lower finishers.
  5. Remove front and rear body side welts.
  6. Remove front pillar garnishes.[B]
  7. Remove center assist grips.
  8. Remove center pillar lower garnishes.[C]
  9. Remove center pillar upper garnishes.[C]
  10. Remove rear gate kicking plate.
  11. Remove rear net hooks.
  12. Remove tonneau cover assembly and rear parcel holder.
  13. Remove rear side lower garnishes.[E]
  14. Remove rear side upper garnishes.[D]

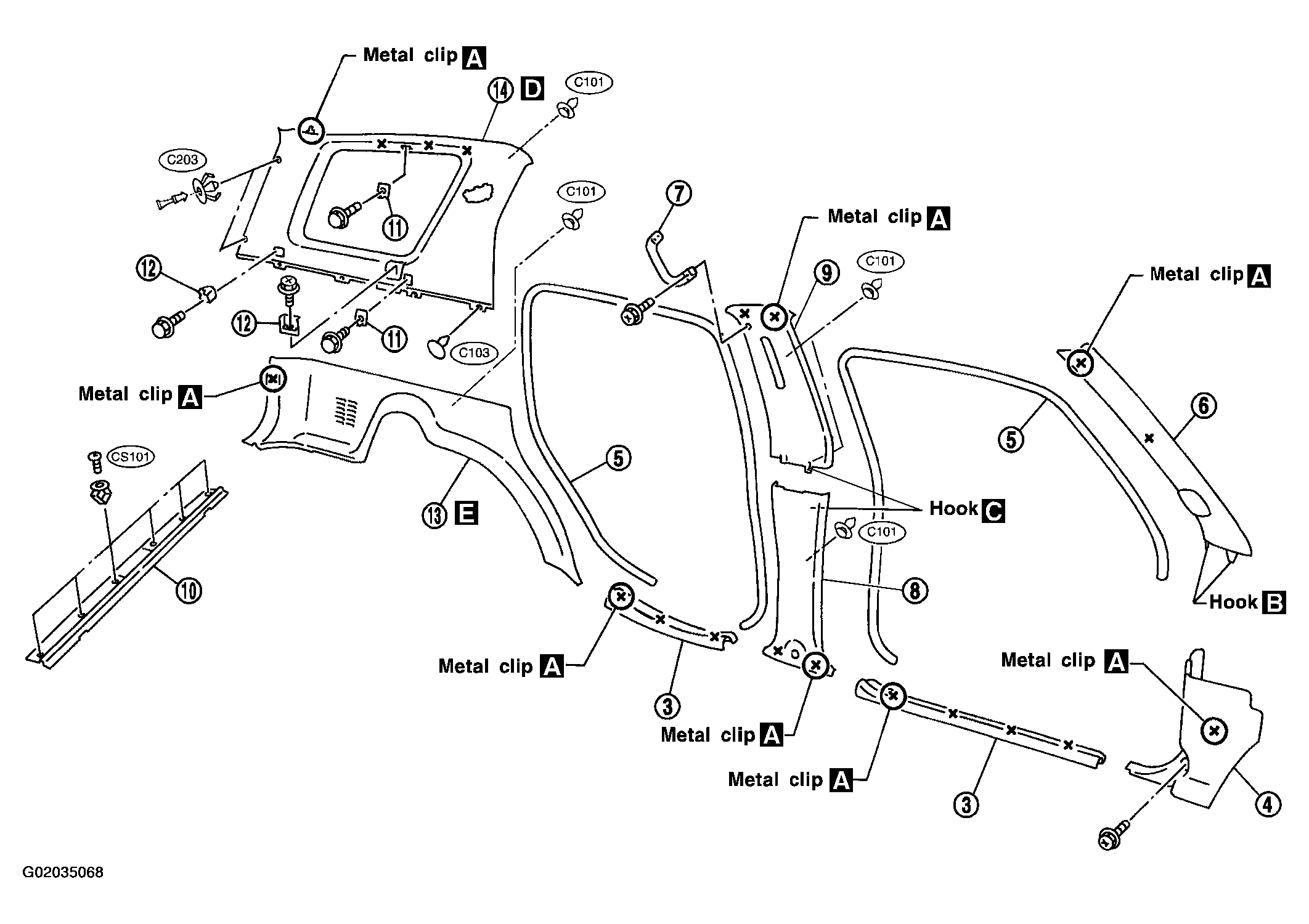

    Fig 1: Exploded View Of Side And Floor Trim (1 Of 2)
    G02035068Courtesy of NISSAN MOTOR CO., U.S.A.

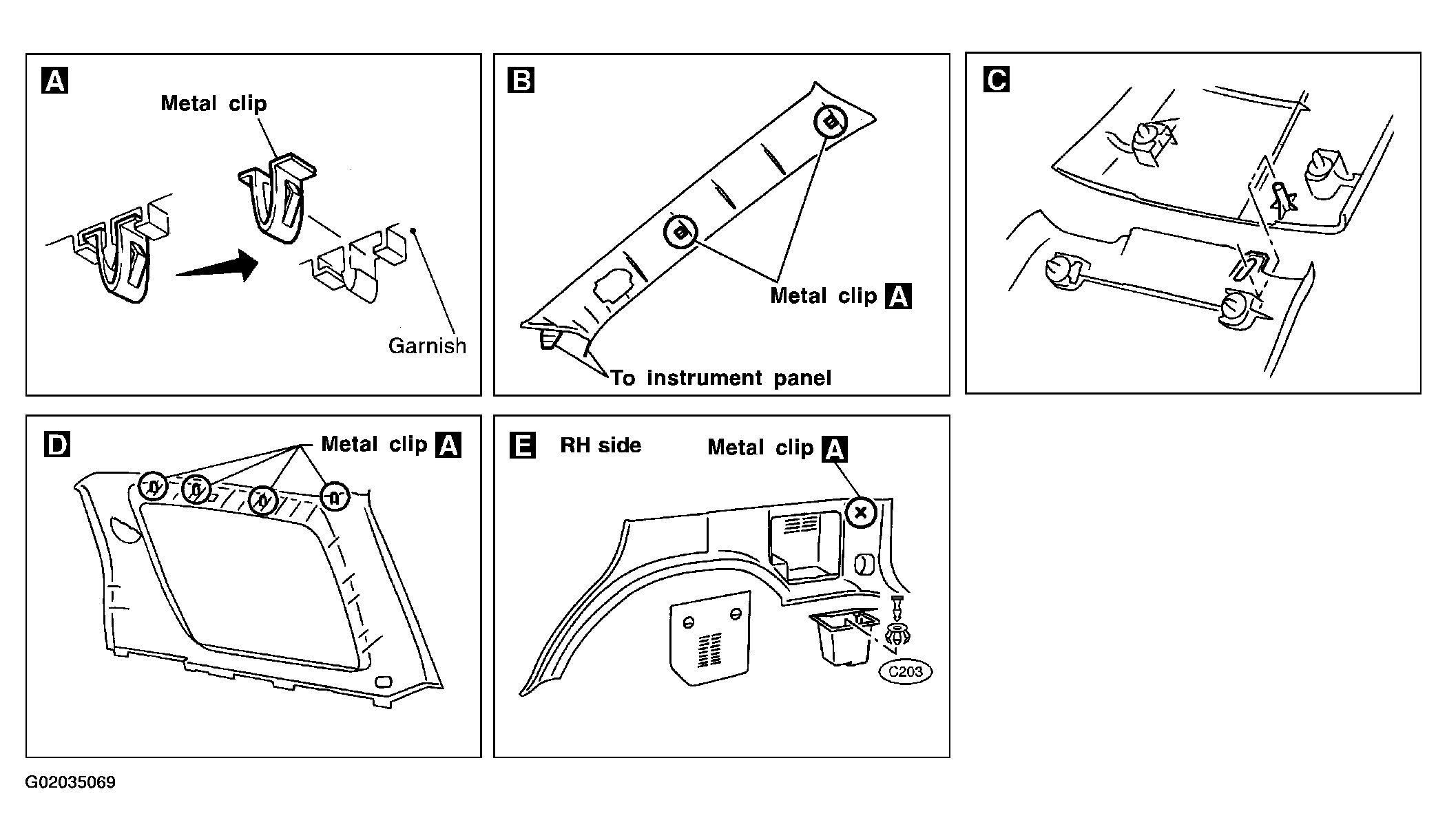

    Fig 2: Exploded View Of Side And Floor Trim (2 Of 2)
    G02035069Courtesy of NISSAN MOTOR CO., U.S.A.
