Removal and Installation

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front and rear seats. Refer to "FRONT SEAT  " for details, and "REAR SEAT  " for details.
  2. Remove front and rear seat belts. Refer to PRECAUTIONS for details.
  3. Remove body side trim. Refer to "SIDE AND FLOOR TRIM  " for details.
  4. Remove roof console assembly.[A]
  5. Remove inside mirror assembly.
  6. Remove sun visors.
  7. Remove interior lamp assembly and luggage room lamp assembly.
  8. Remove assist grips.
  9. Remove clips securing headlining.
  10. Remove rear roof garnish.[B]
  11. Remove headlining from vehicle through either back door.

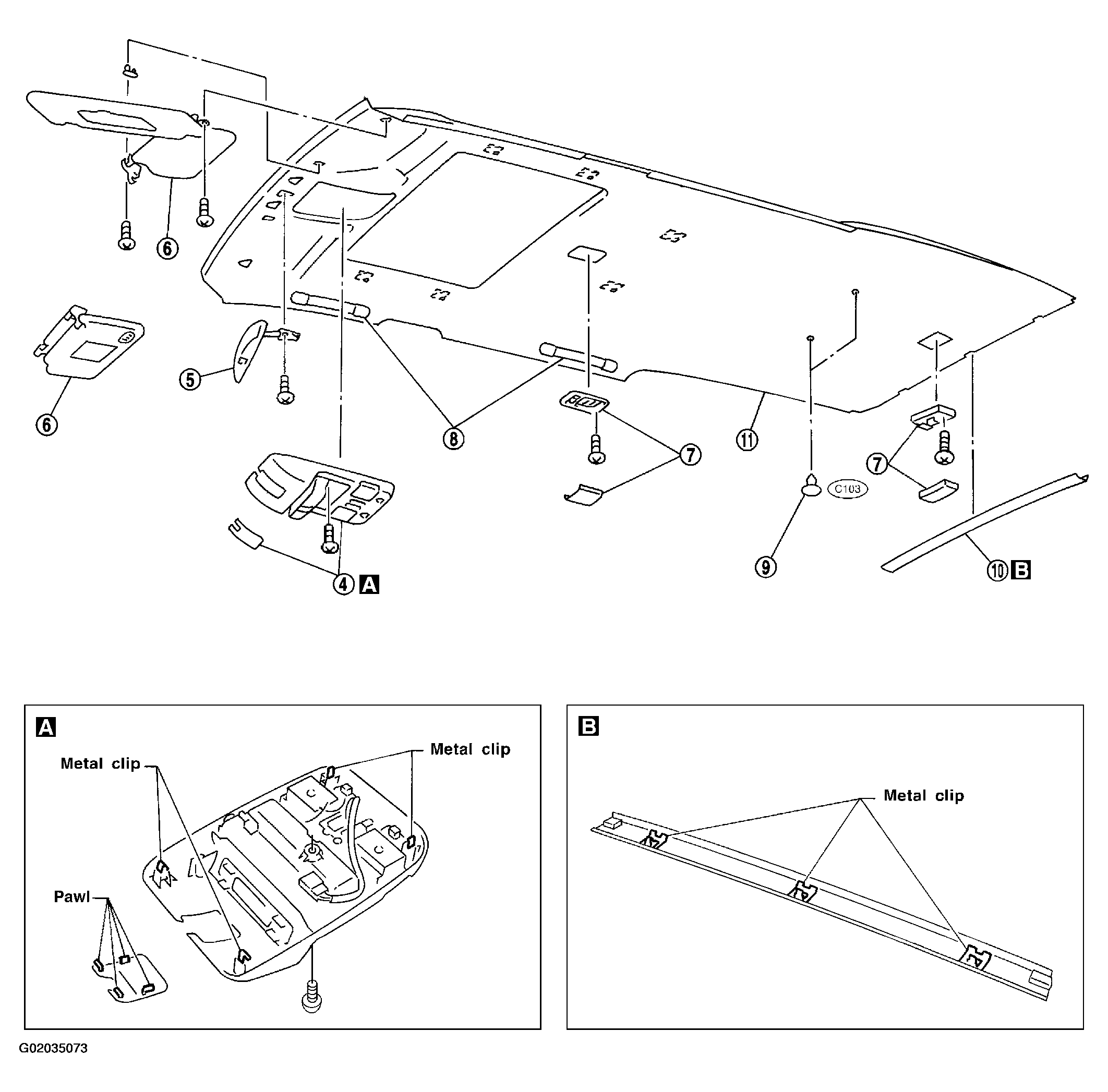

    Fig 1: Exploded View Of Roof Trim
    G02035073Courtesy of NISSAN MOTOR CO., U.S.A.
