Side defroster grille

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

After removing the side ventilator, reach in with hands from the opening, push on the pawls from behind the grille, and remove by pushing out.

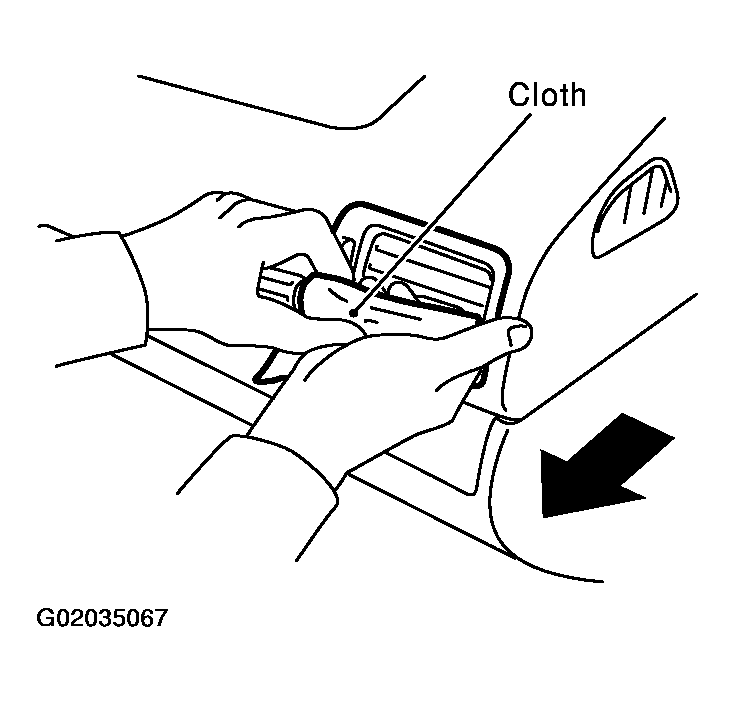

Fig 1: Removing Side Ventilator-Right
G02035067Courtesy of NISSAN MOTOR CO., U.S.A.
