Defroster grille: Installation: Notes

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

After inserting the front section, insert the rear section (pawls) to attach.

CAUTION: Confirm that the pawls at the rear are securely attached.

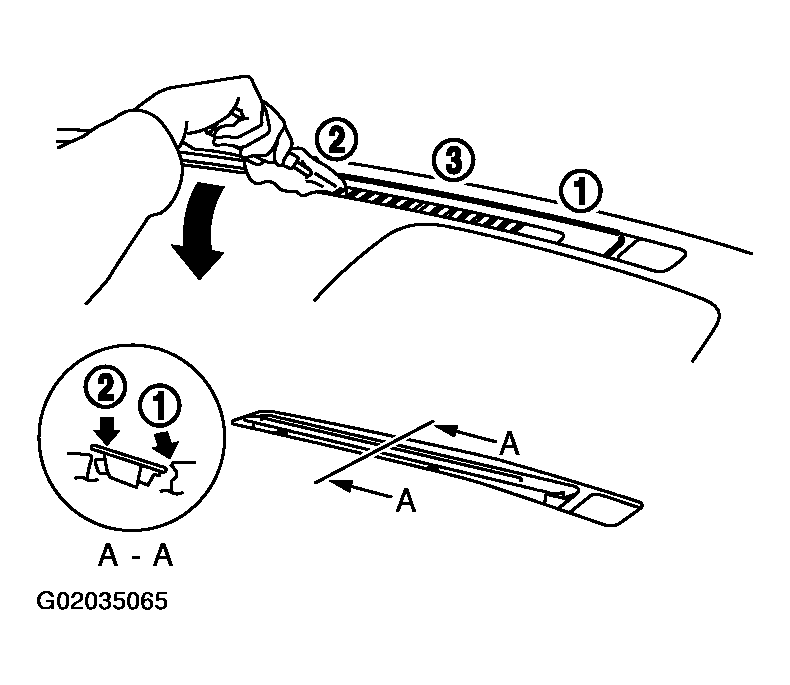

Fig 1: Removing Defroster Grille
G02035065Courtesy of NISSAN MOTOR CO., U.S.A.
