Console finisher

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. After removing the ashtray, place hands on the opening and pull out in an upward direction to remove the clips at the back.
  2. Hold the front of the finisher, pull out in an upward direction and remove the clips at the front.

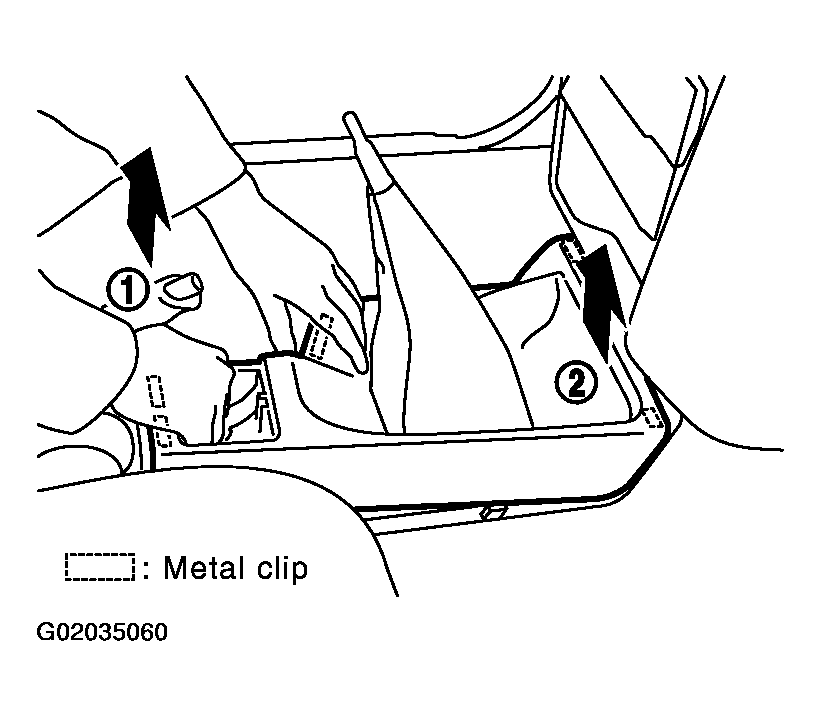

    Fig 1: Removing Console Finisher
    G02035060Courtesy of NISSAN MOTOR CO., U.S.A.
