Console box

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull up the parking brake lever.
  2. Remove the screws, pull the console towards the back of the car until it is free of the instrument panel, lift up the front and remove.
    • It will be easier to remove if the parking brake lever is pulled up for more than 10 notches.

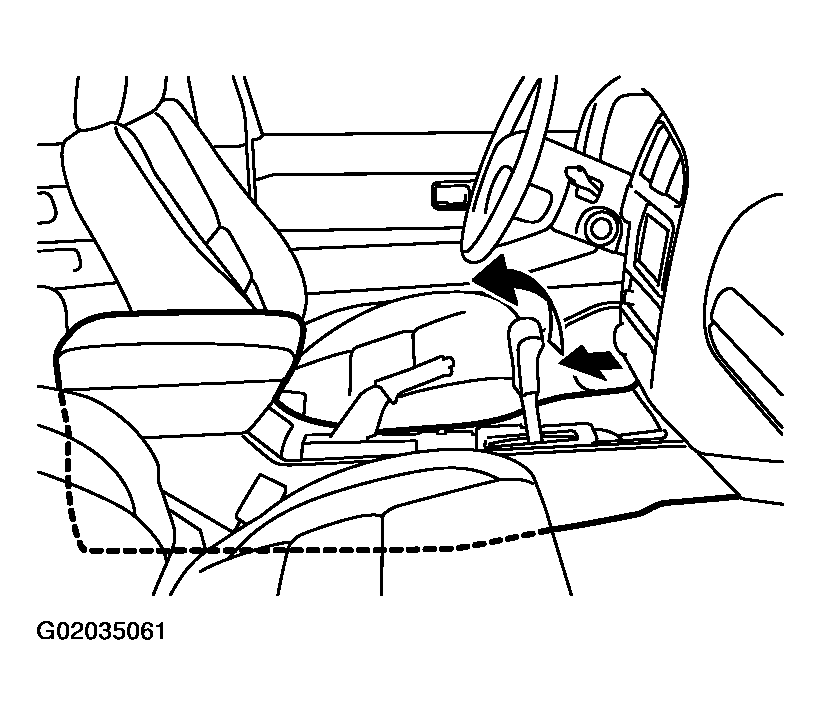

      Fig 1: Pulling Up Parking Brake Lever
      G02035061Courtesy of NISSAN MOTOR CO., U.S.A.
