Center ventilator

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Hook a cloth-covered flat-bladed screwdriver into the right-side groove section, and pull out.

CAUTION: To prevent the screwdriver from slipping and causing damage to the surface, pull out while applying pressure on the screwdriver towards the right.

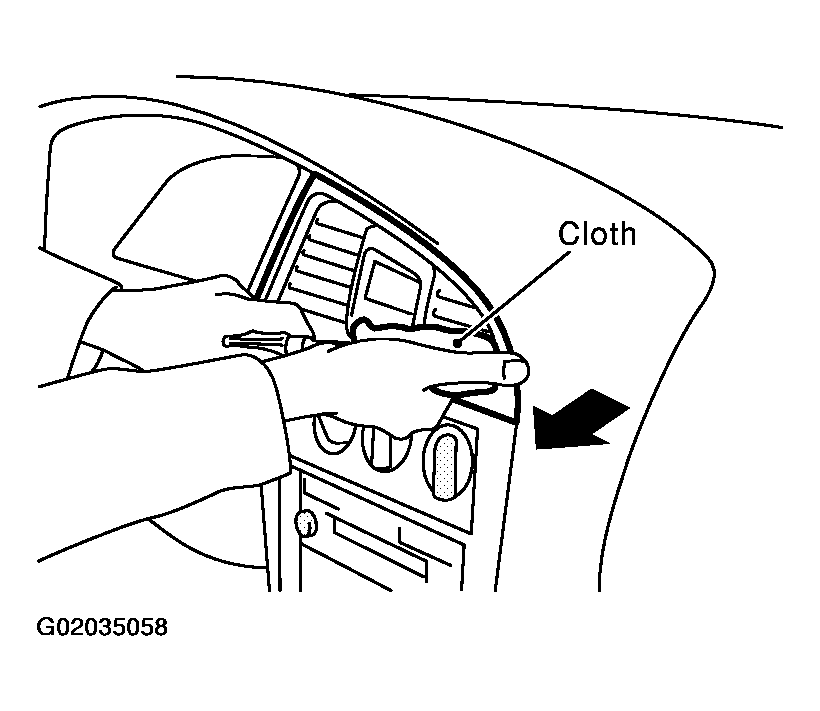

Fig 1: Pulling Out Center Ventilator Using Flat-Bladed Screwdriver Covered In Cloth
G02035058Courtesy of NISSAN MOTOR CO., U.S.A.
