Removal and Installation: Notes

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

When removing or installing the seat trim, handle carefully to keep dirt out and avoid damage.
For Wiring Diagram, refer to " POWER SEATS ".
CAUTION:
- Before removing the front seat, turn the ignition switch off, disconnect both battery cables and wait at least 3 minutes.
- When checking the power seat circuit for continuity using a circuit tester, do not confuse its connector with the side air bag module connector. Such an error may cause the air bag to deploy.
- Do not drop, tilt, or bump the side air bag module installed in the seat. Always handle it with care.
- Disconnect the side air bag, power seat switch, and heated seat harness connectors from under the seat before removing the seat.
- Disconnect the side air bag harness connector before removing the seat back. (Refer to "SIDE AIR BAG MODULE ".)

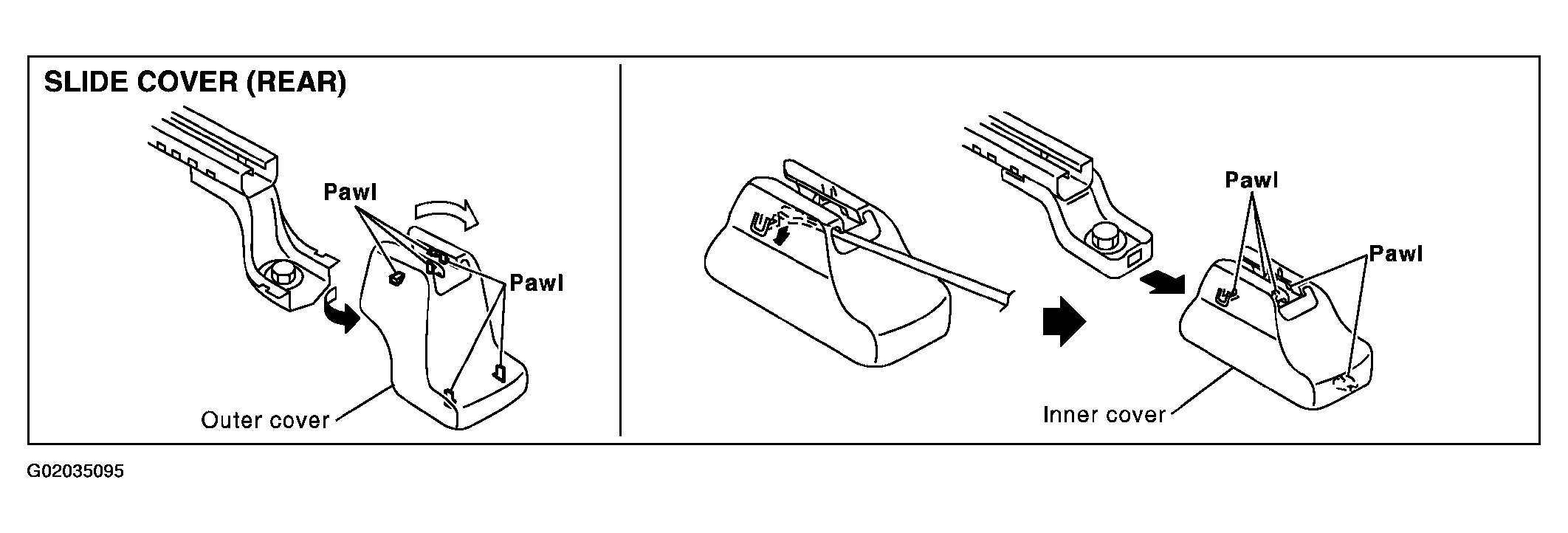

  Fig 1: Removing Slide Cover (Rear)
  Courtesy of NISSAN MOTOR CO., U.S.A.
