Front Door: Overhaul

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

For removal of door trim, refer to "DOOR TRIM ".
After adjusting door or door lock, check door lock operation.

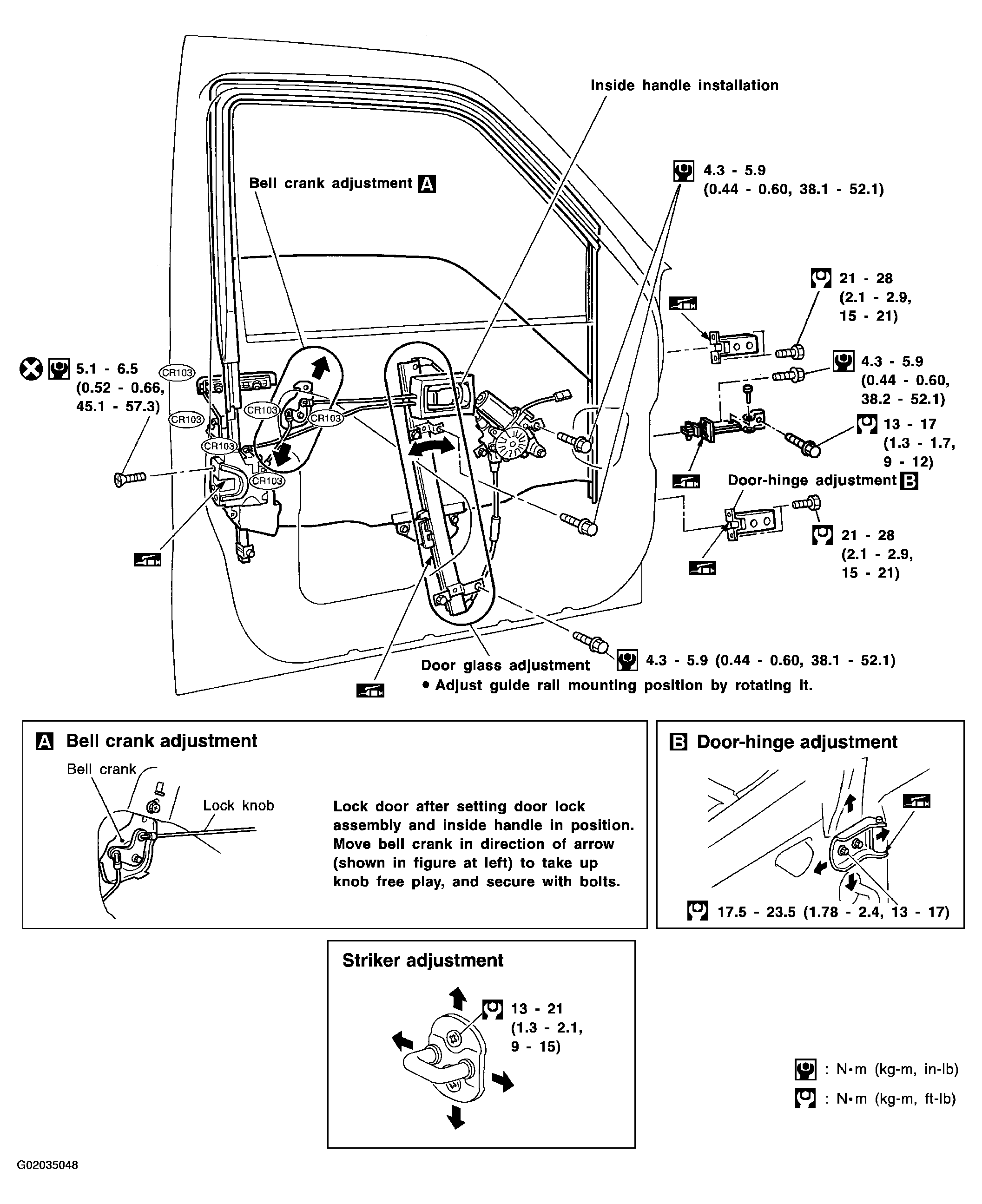

Fig 1: Exploded View Of Front Door
Courtesy of NISSAN MOTOR CO., U.S.A.
