Removal and Installation

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

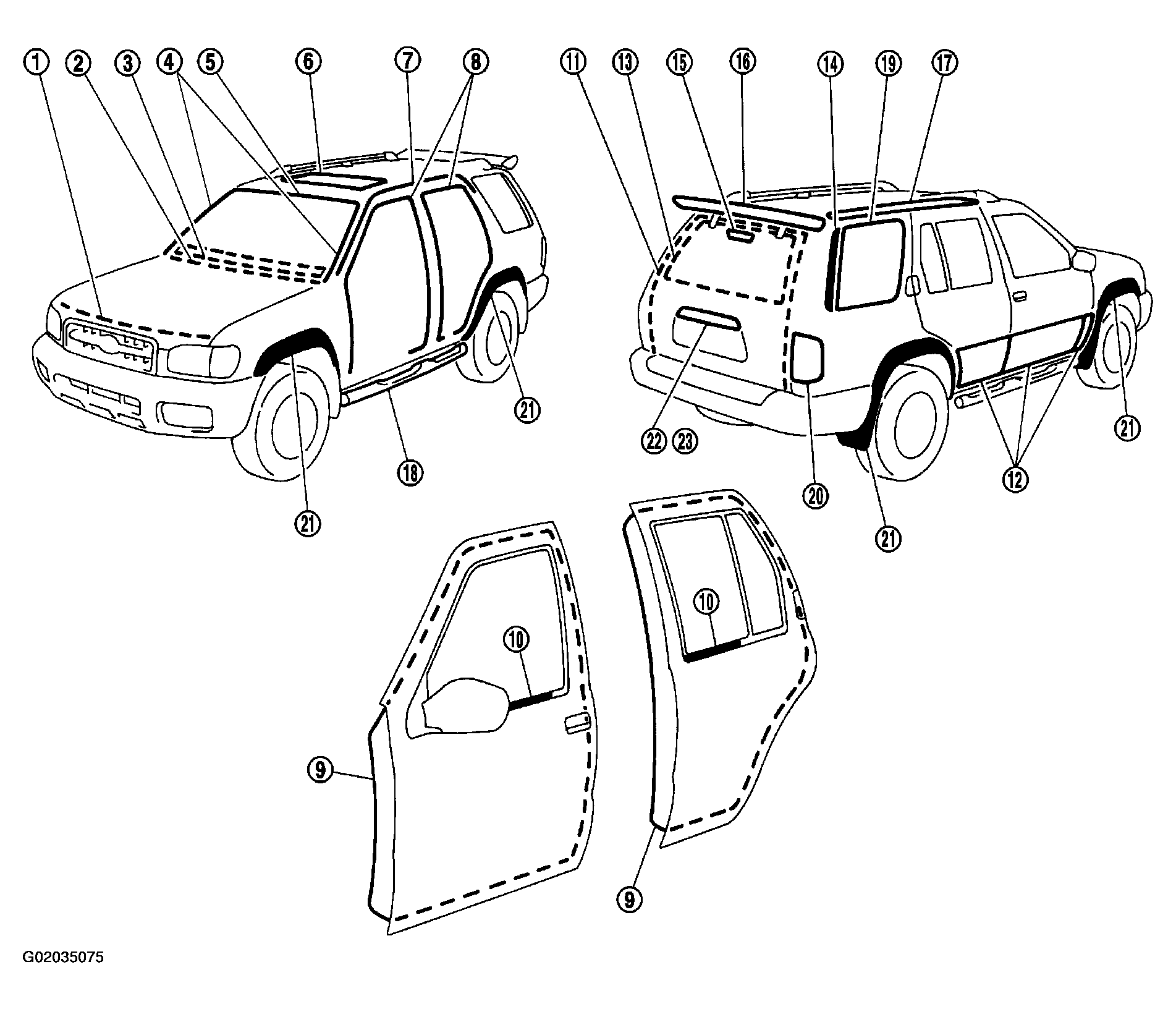

Fig 1: Identifying Exterior Components

Courtesy of NISSAN MOTOR CO., U.S.A.

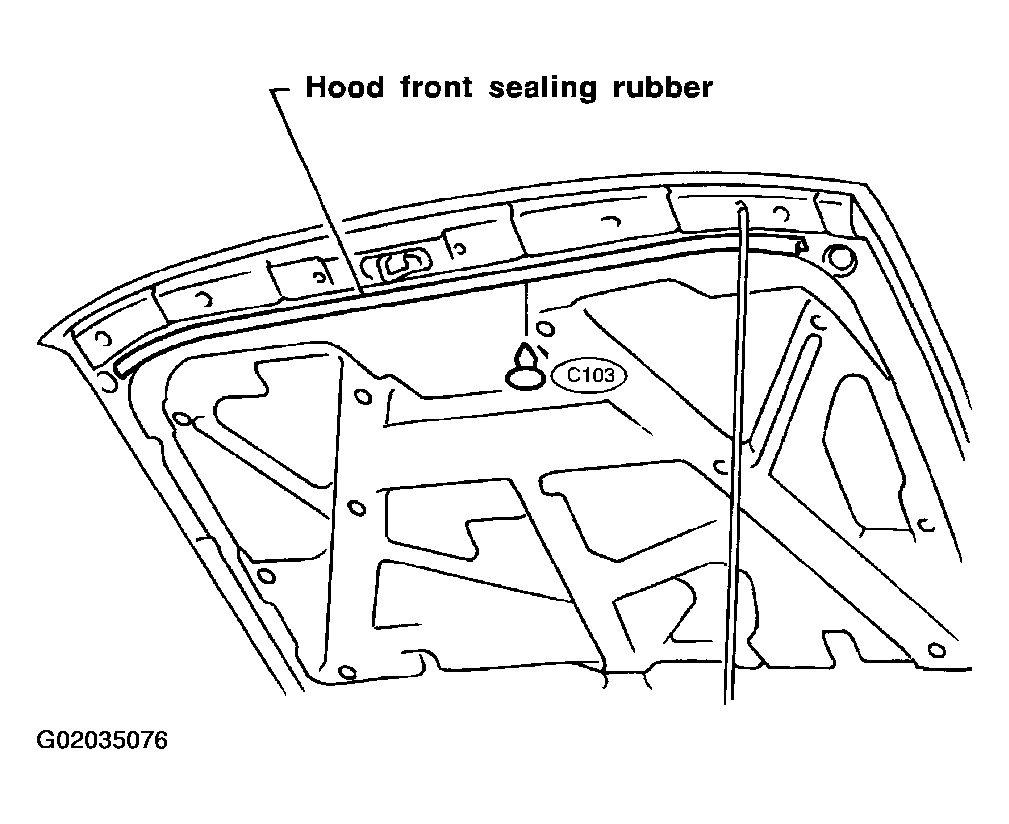

1: Hood front seal

Fig 2: Identifying Hood Front Seal
Courtesy of NISSAN MOTOR CO., U.S.A.

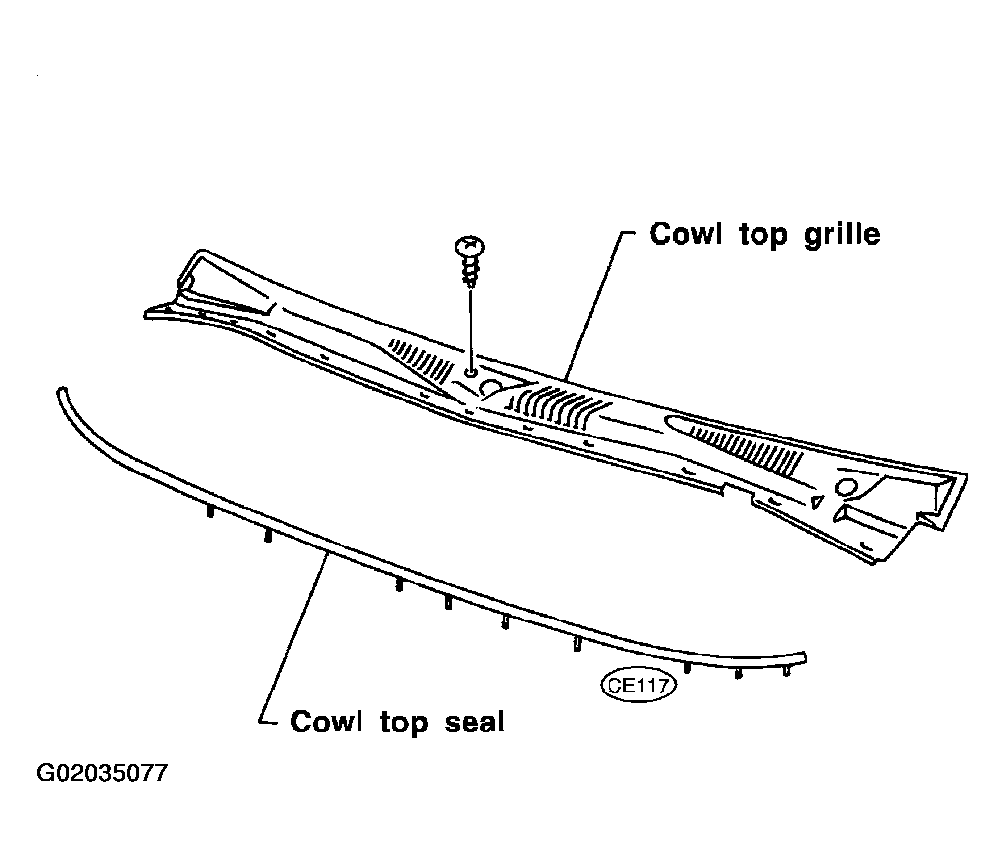

2,3: Cowl top seal and cowl top grille

Fig 3: Identifying Cowl Top Seal And Cowl Top Grille
Courtesy of NISSAN MOTOR CO., U.S.A.
4: Windshield side molding
Mounted with screws.

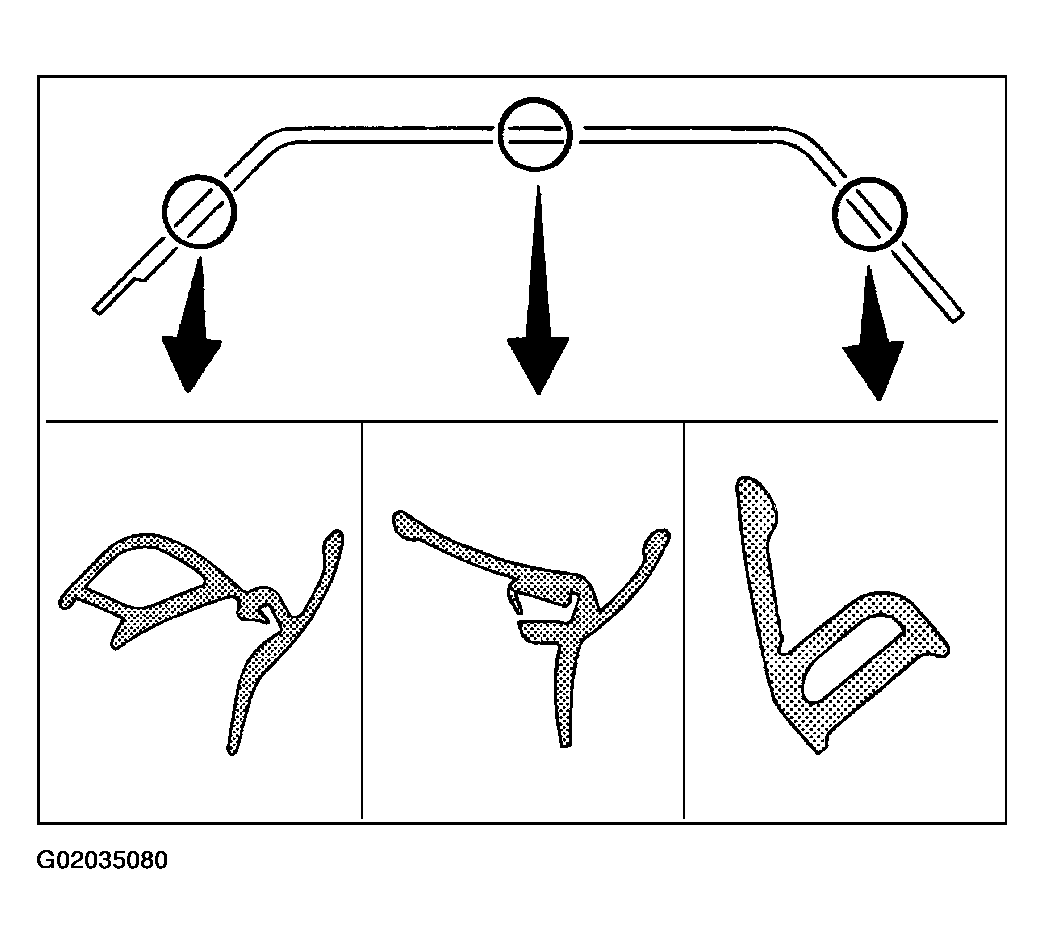

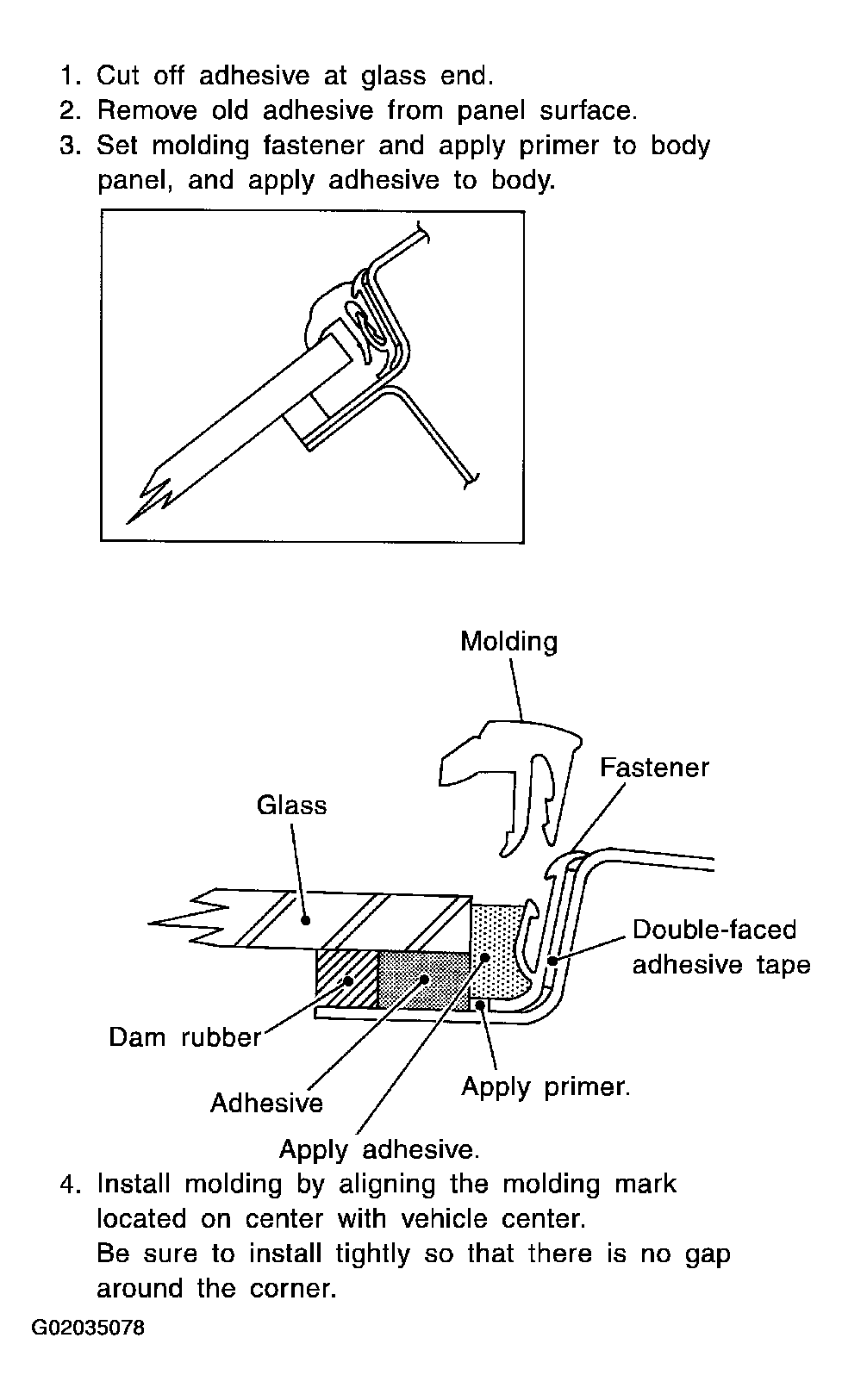

5: Windshield upper molding

Fig 4: Identifying Windshield Upper Molding Components
Courtesy of NISSAN MOTOR CO., U.S.A.

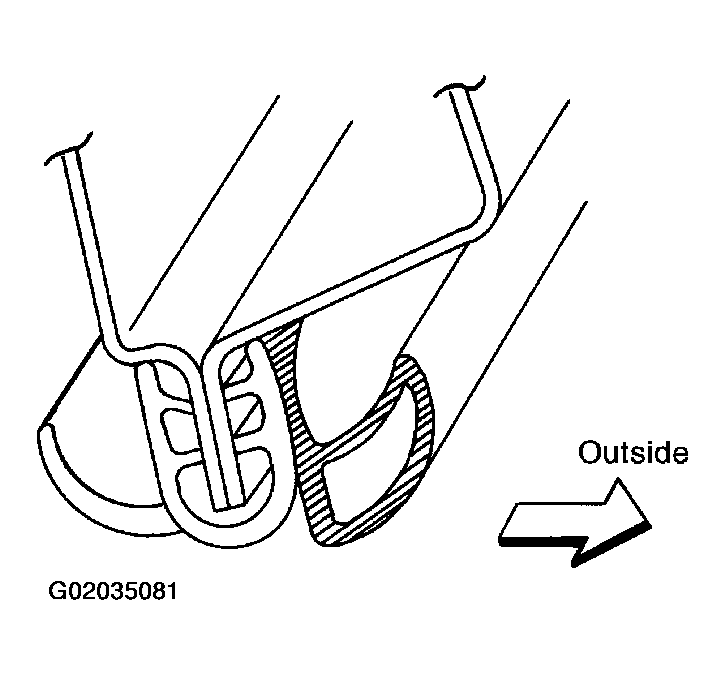

6: Sunroof lid weatherstrip

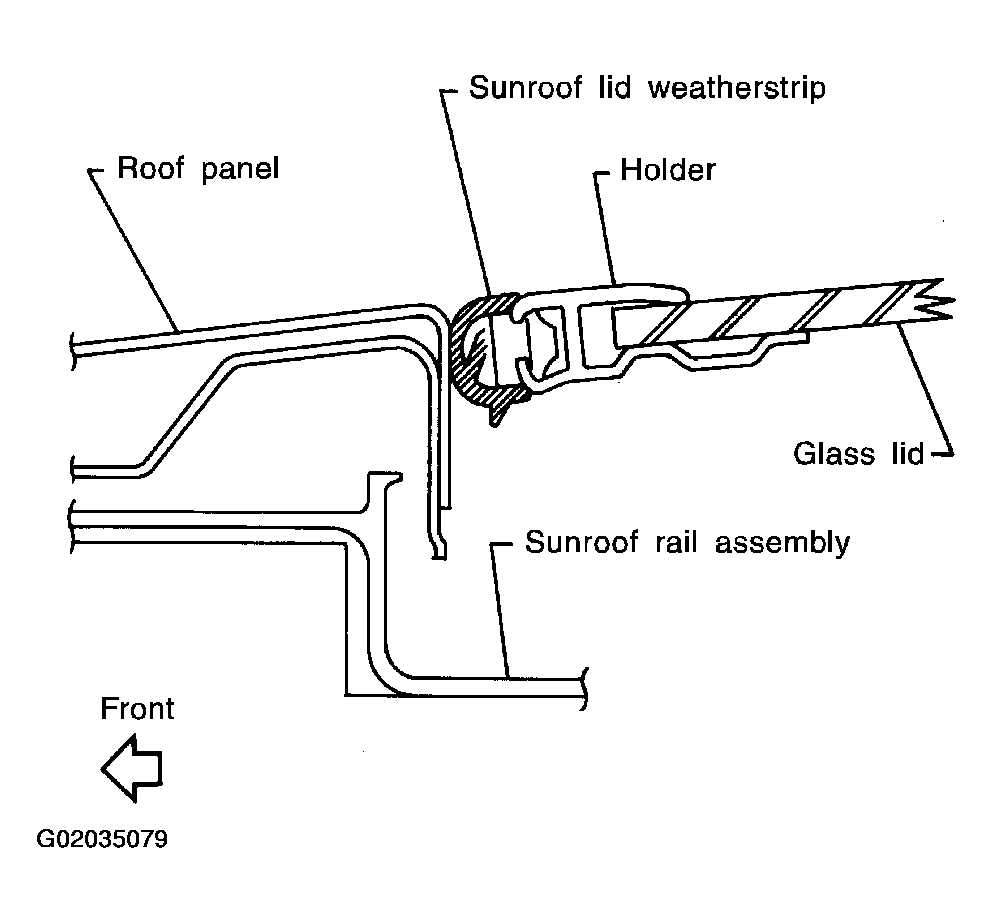

Fig 5: Identifying Sunroof Lid Weatherstrip Components
Courtesy of NISSAN MOTOR CO., U.S.A.
7: Drip weatherstrip

Fig 6: Identifying Drip Weatherstrip
Courtesy of NISSAN MOTOR CO., U.S.A.
8: Body side welt

Fig 7: Identifying Body Side Welt
Courtesy of NISSAN MOTOR CO., U.S.A.

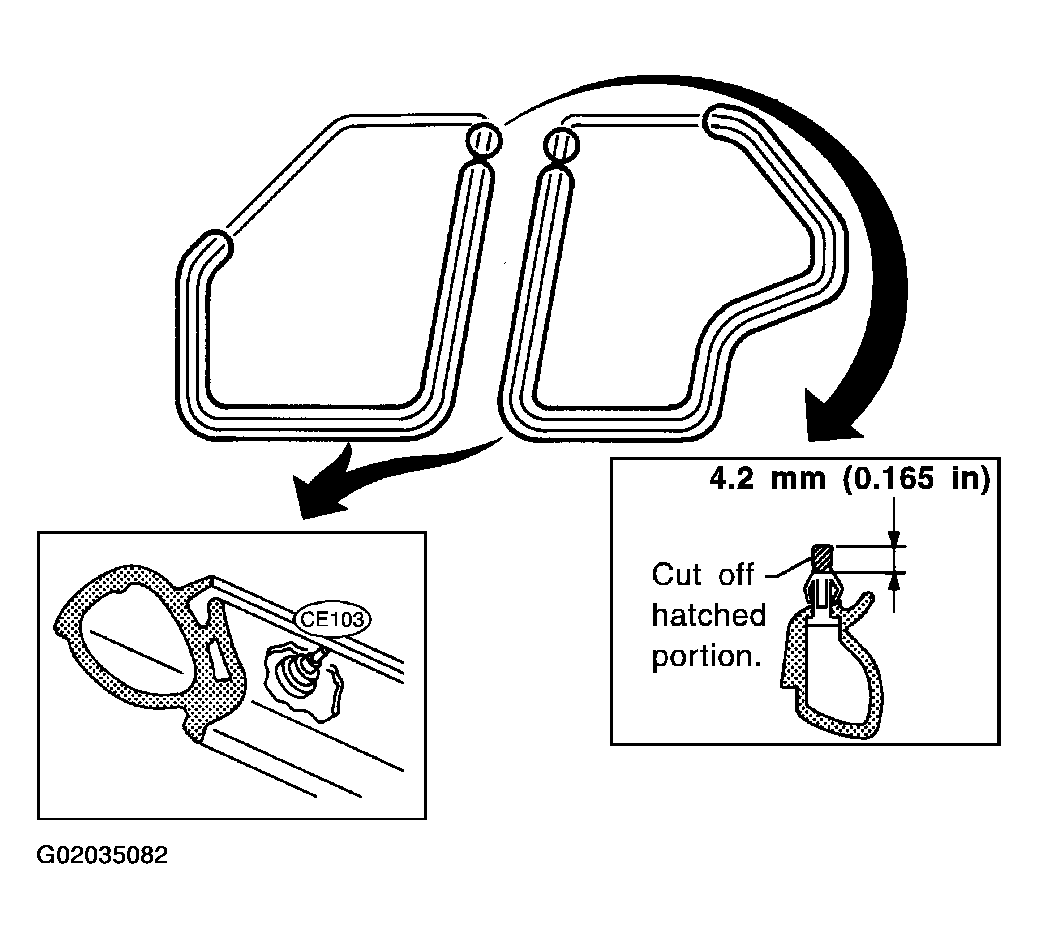

9: Door weatherstrip

Fig 8: Identifying Door Weatherstrip
Courtesy of NISSAN MOTOR CO., U.S.A.

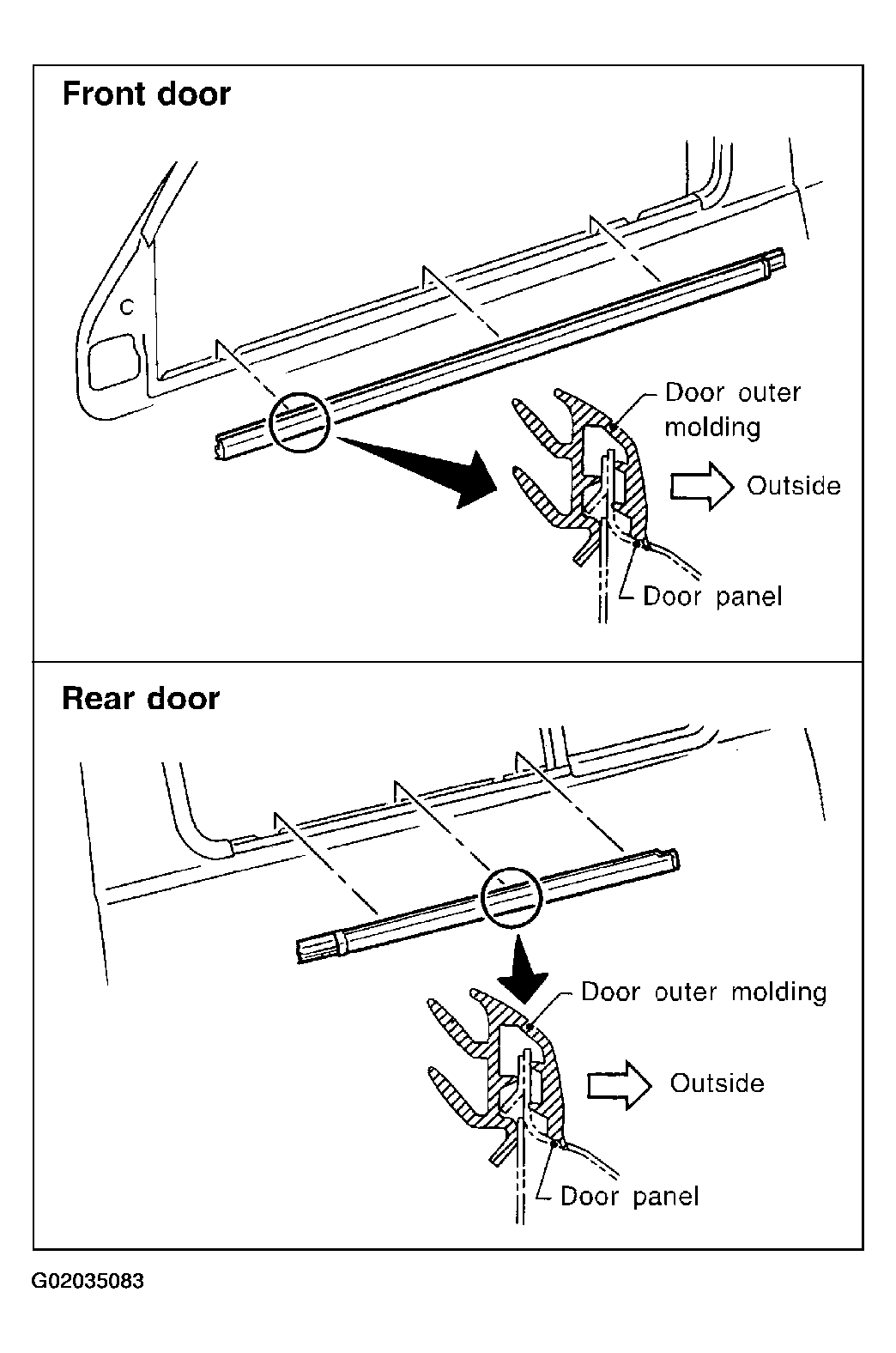

10: Door outside molding

Fig 9: Identifying Door Outside Molding
Courtesy of NISSAN MOTOR CO., U.S.A.
11: Back door weatherstrip

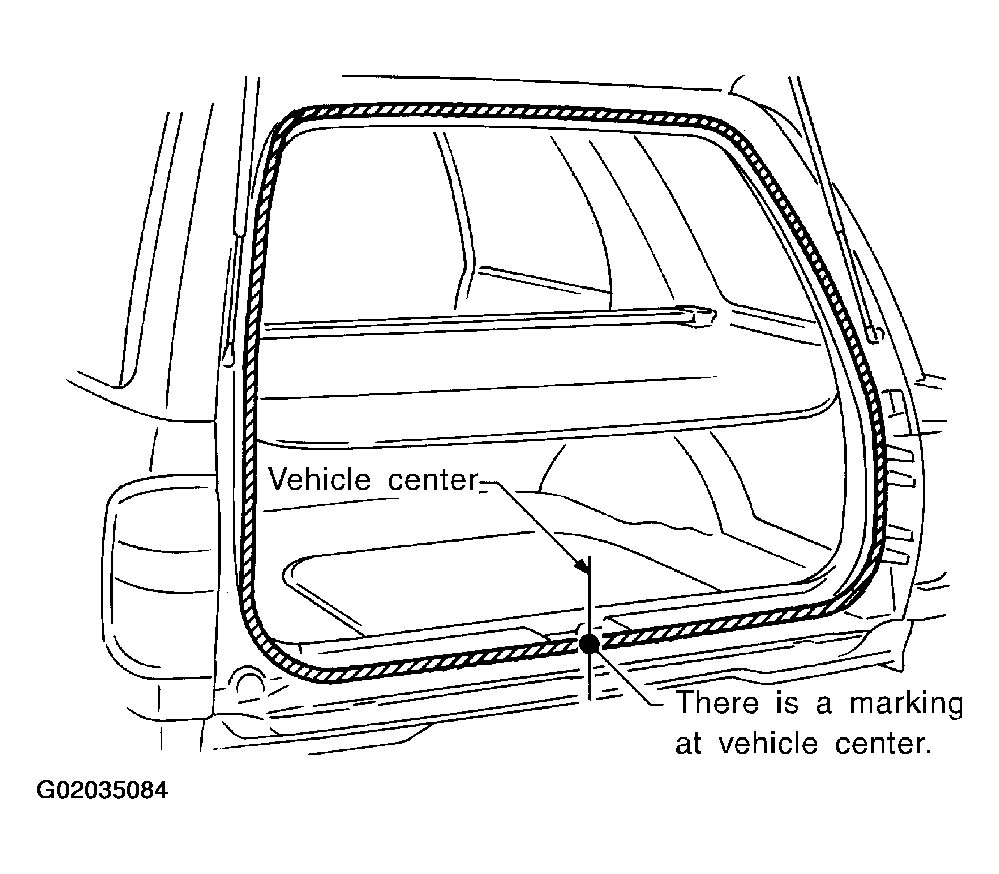

Fig 10: Identifying Back Door Weatherstrip
Courtesy of NISSAN MOTOR CO., U.S.A.
12: Side guard molding

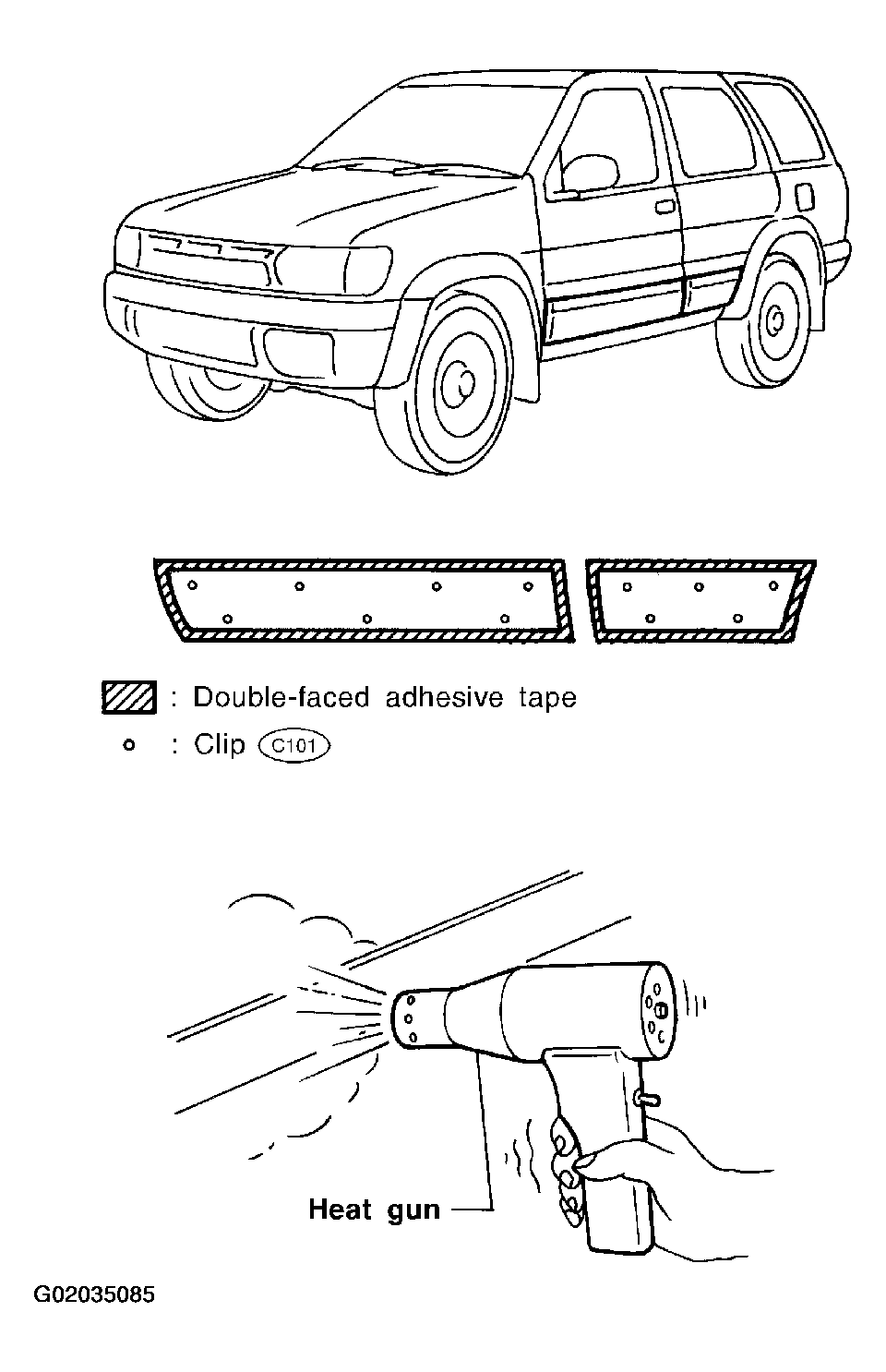

Fig 11: Identifying Side Guard Molding
Courtesy of NISSAN MOTOR CO., U.S.A.
- With a vehicle coated with Hard Clear Coat, use double-faced 3M adhesive tape Product No. 4210 or equivalent, after priming with 3M primer Product No. N-200 or C-100 or equivalent.

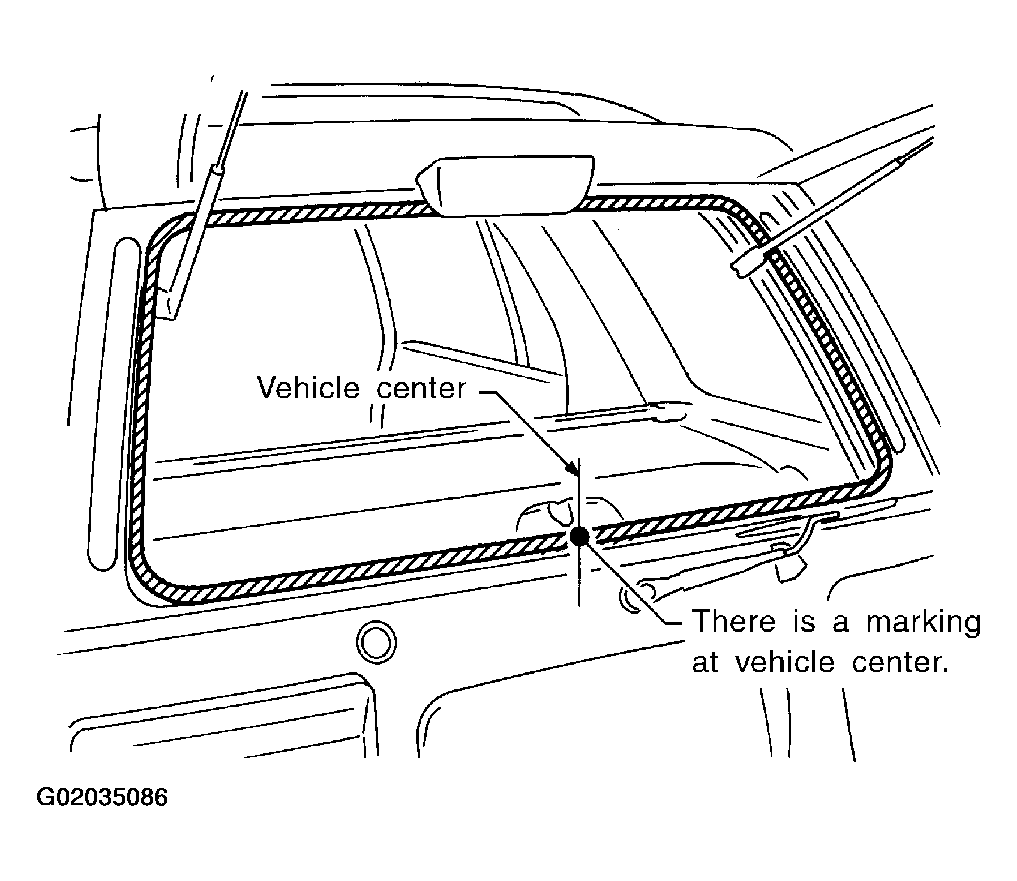

13: Back door window weatherstrip

Fig 12: Identifying Back Door Window Weatherstrip
Courtesy of NISSAN MOTOR CO., U.S.A.
14: Air outlet grille

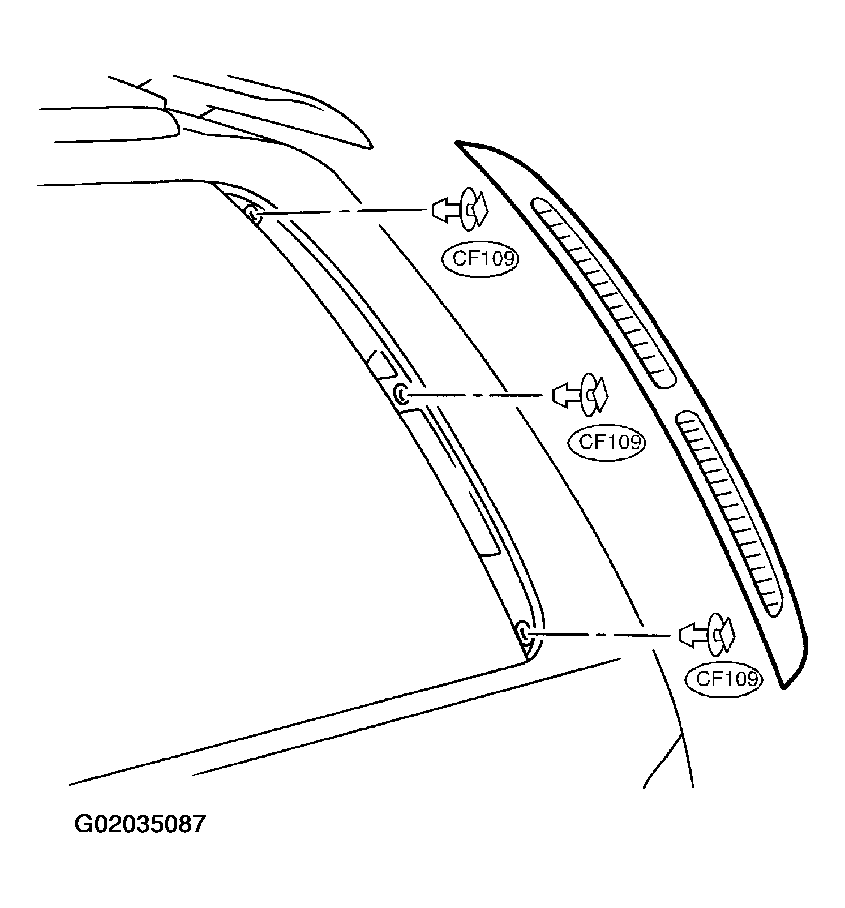

Fig 13: Removing Air Outlet Grille
Courtesy of NISSAN MOTOR CO., U.S.A.
15: High-mounted stop lamp

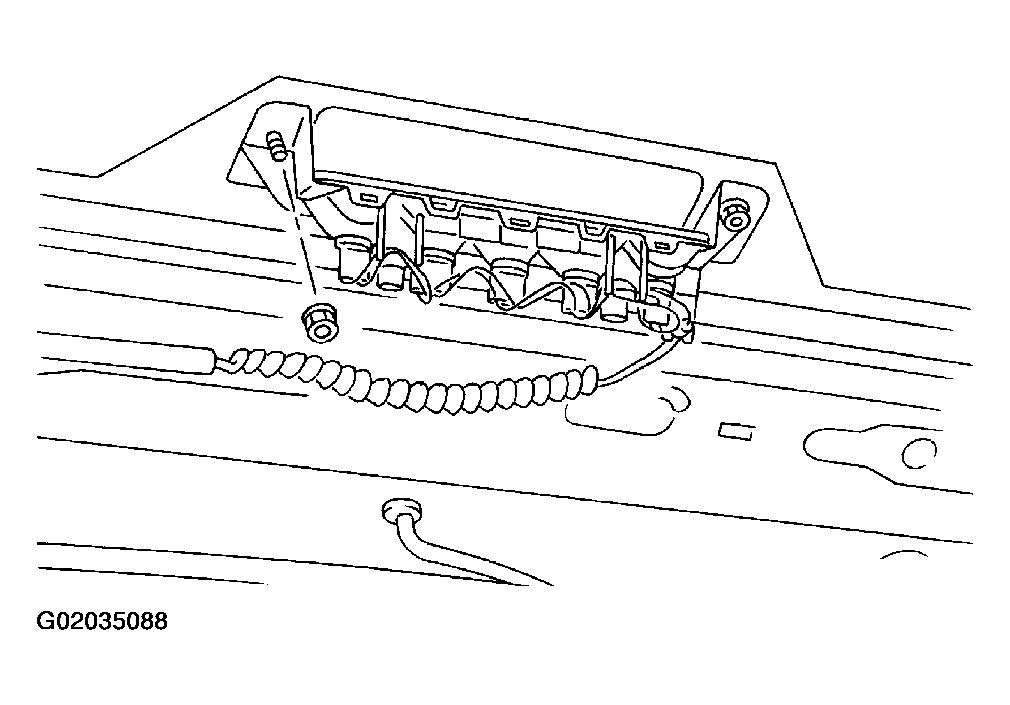

Fig 14: Removing High-Mounted Stop Lamp
Courtesy of NISSAN MOTOR CO., U.S.A.
16: Back door deflector
- When installing, make sure that there are not gaps or waves at ends of deflector.
- Before installing deflector, clean and remove oil from surface where deflector will be mounted.

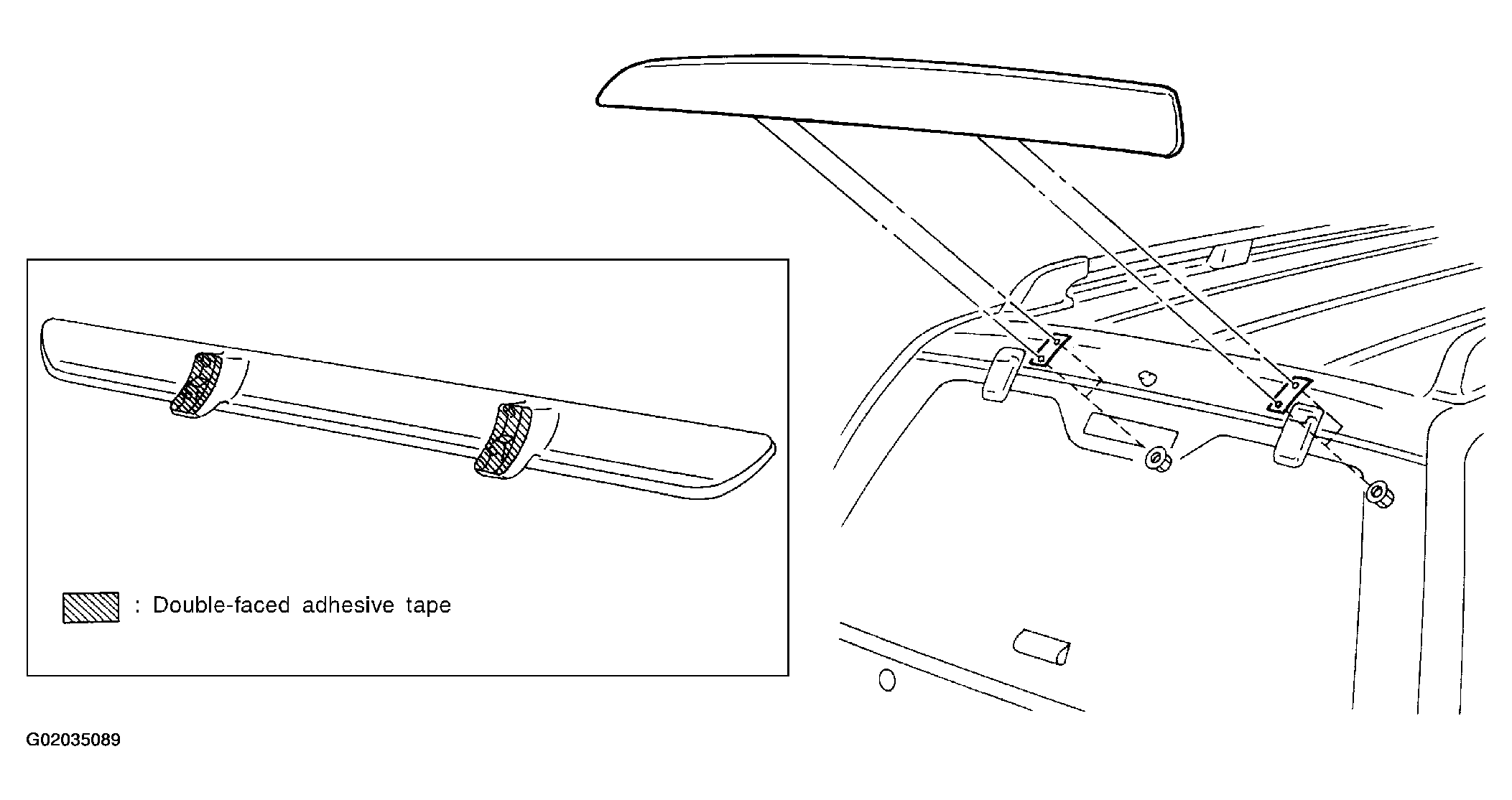

  Fig 15: Removing Back Door Deflector
  Courtesy of NISSAN MOTOR CO., U.S.A.
17: Roof rack

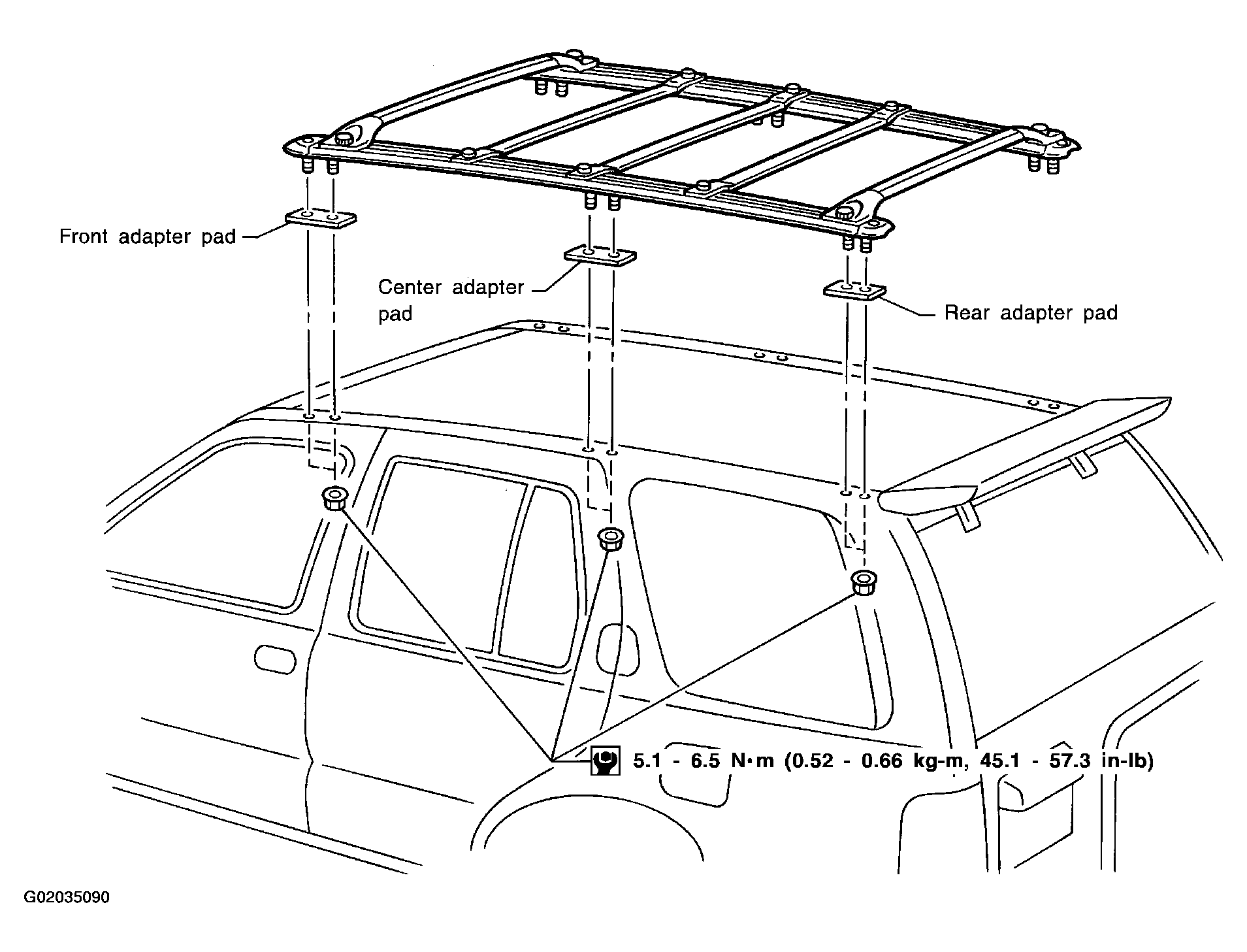

Fig 16: Removing Roof Rack
Courtesy of NISSAN MOTOR CO., U.S.A.

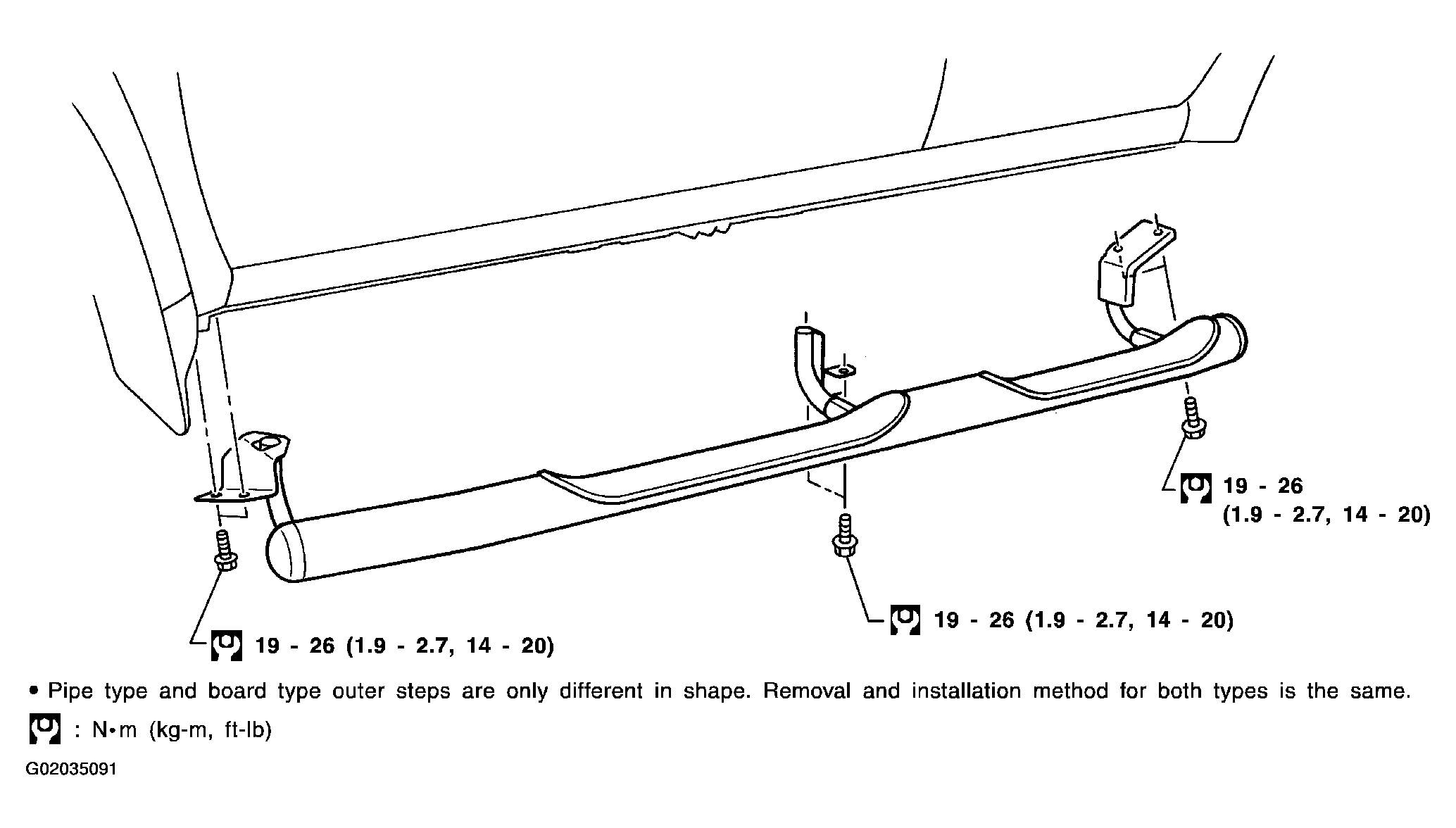

18: Side step

Fig 17: Removing Side Step
Courtesy of NISSAN MOTOR CO., U.S.A.
19: Rear side window molding
20: Rear combination lamp
Rear combination lamps are installed with nuts.

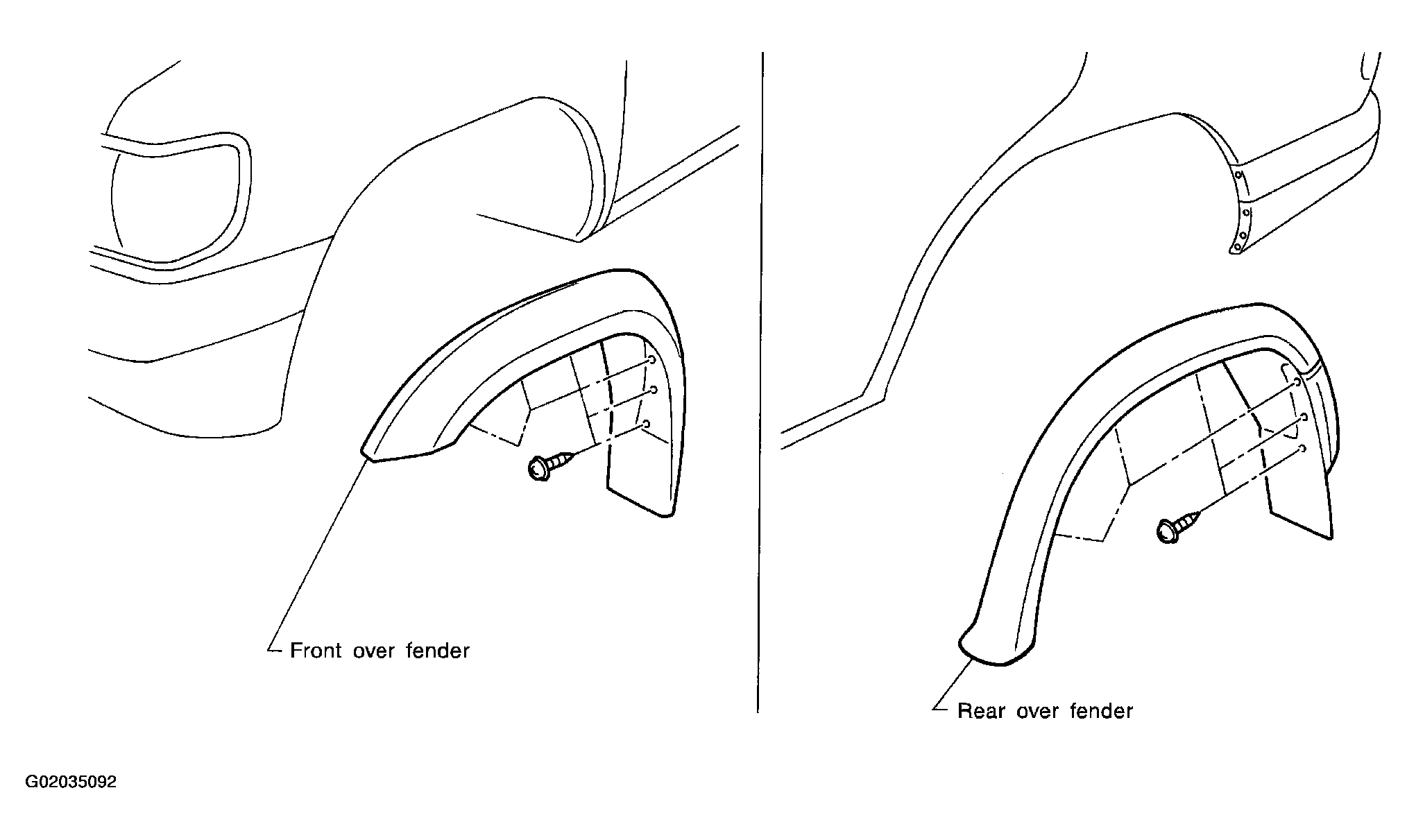

21: Over fender

Fig 18: Removing Front And Rear Over Fender
Courtesy of NISSAN MOTOR CO., U.S.A.

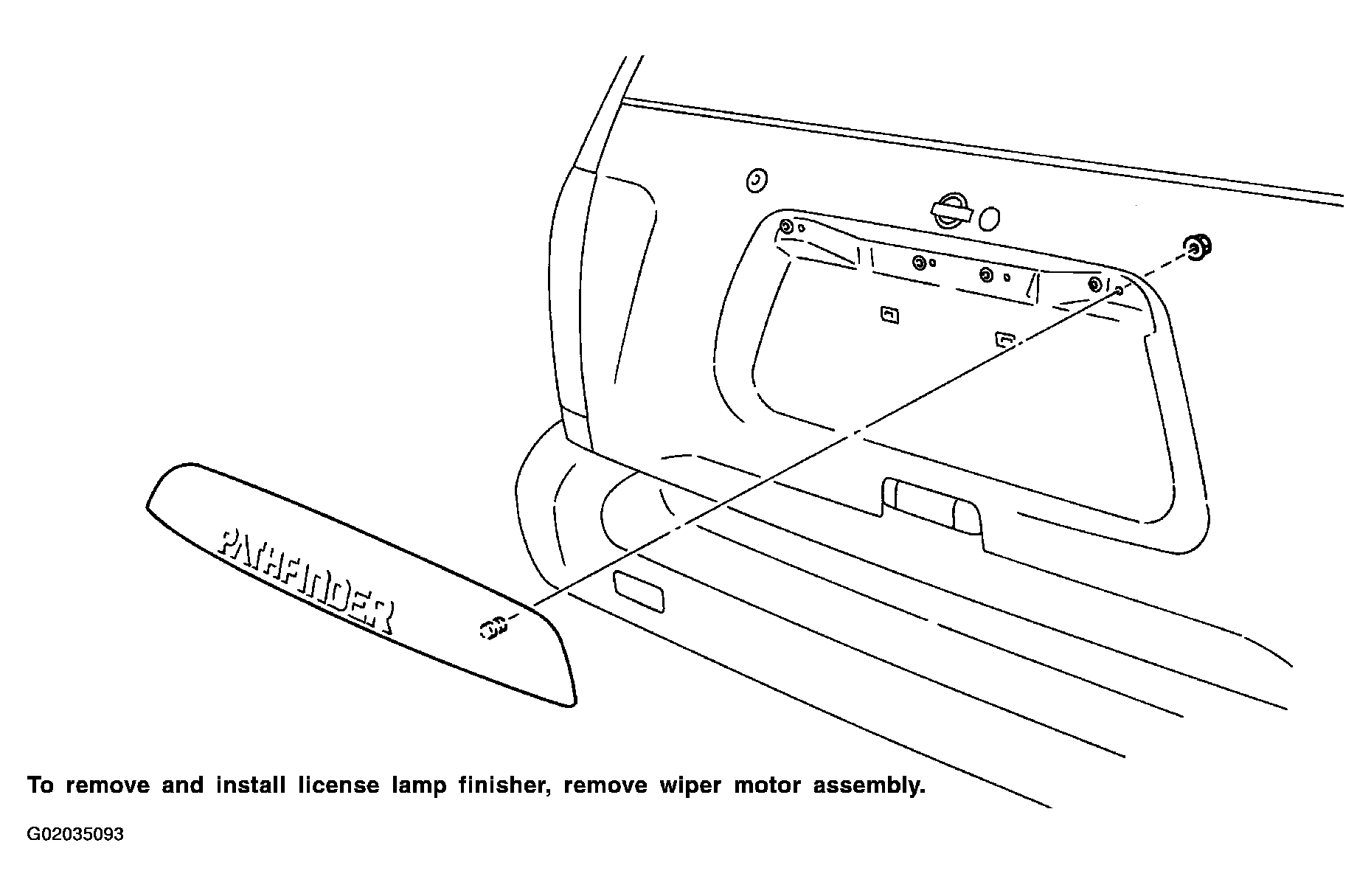

22: License lamp finisher (Without spare tire hanger models)

Fig 19: Removing License Lamp Finisher (Without Spare Tire Hanger Models)
Courtesy of NISSAN MOTOR CO., U.S.A.

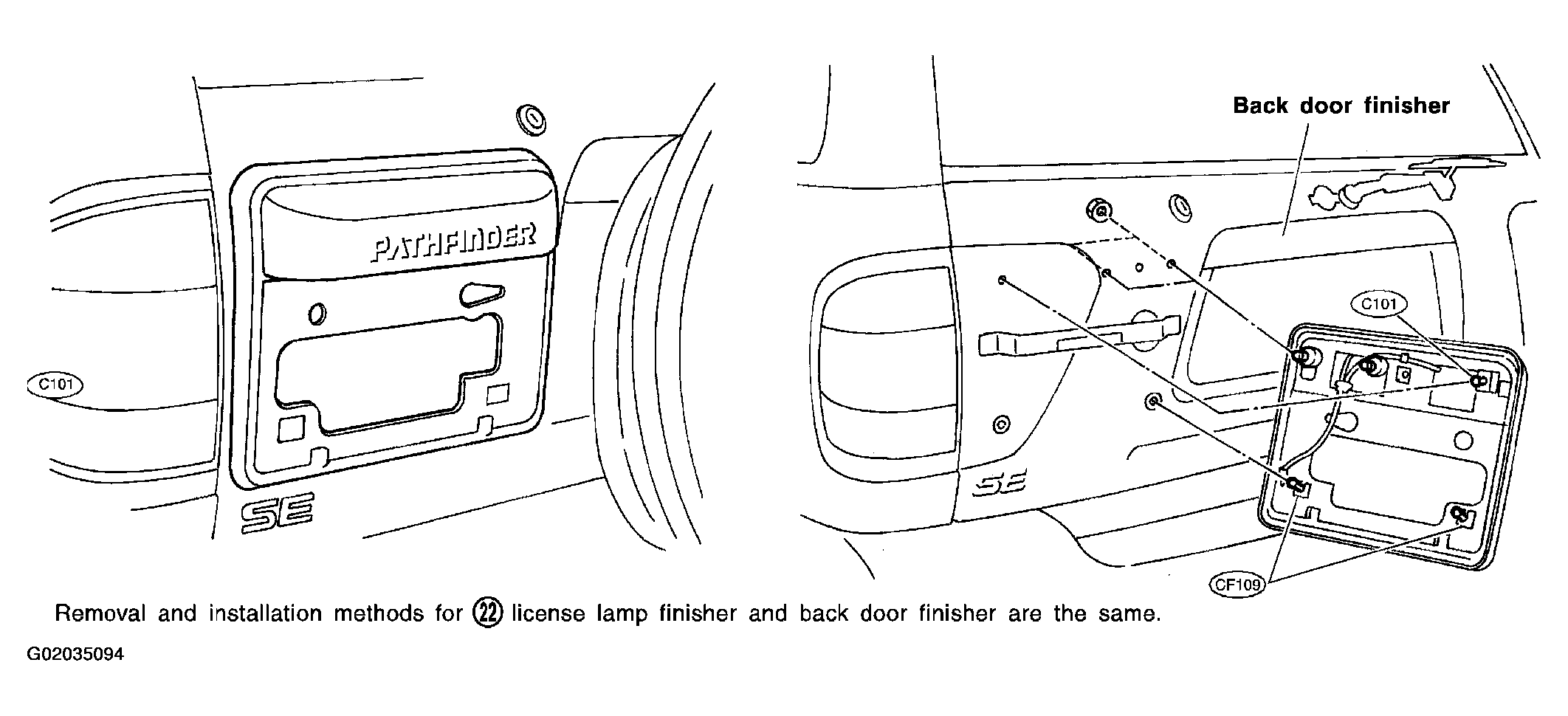

23: License lamp finisher (With spare tire hanger models)

Fig 20: Removing License Lamp Finisher (With Spare Tire Hanger Models)
Courtesy of NISSAN MOTOR CO., U.S.A.
