Removal and Installation
WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Be careful not to scratch door rearview mirror body.
* For Wiring Diagram, refer to "POWER MIRRORS ".
* For Wiring Diagram, refer to "POWER MIRRORS ".

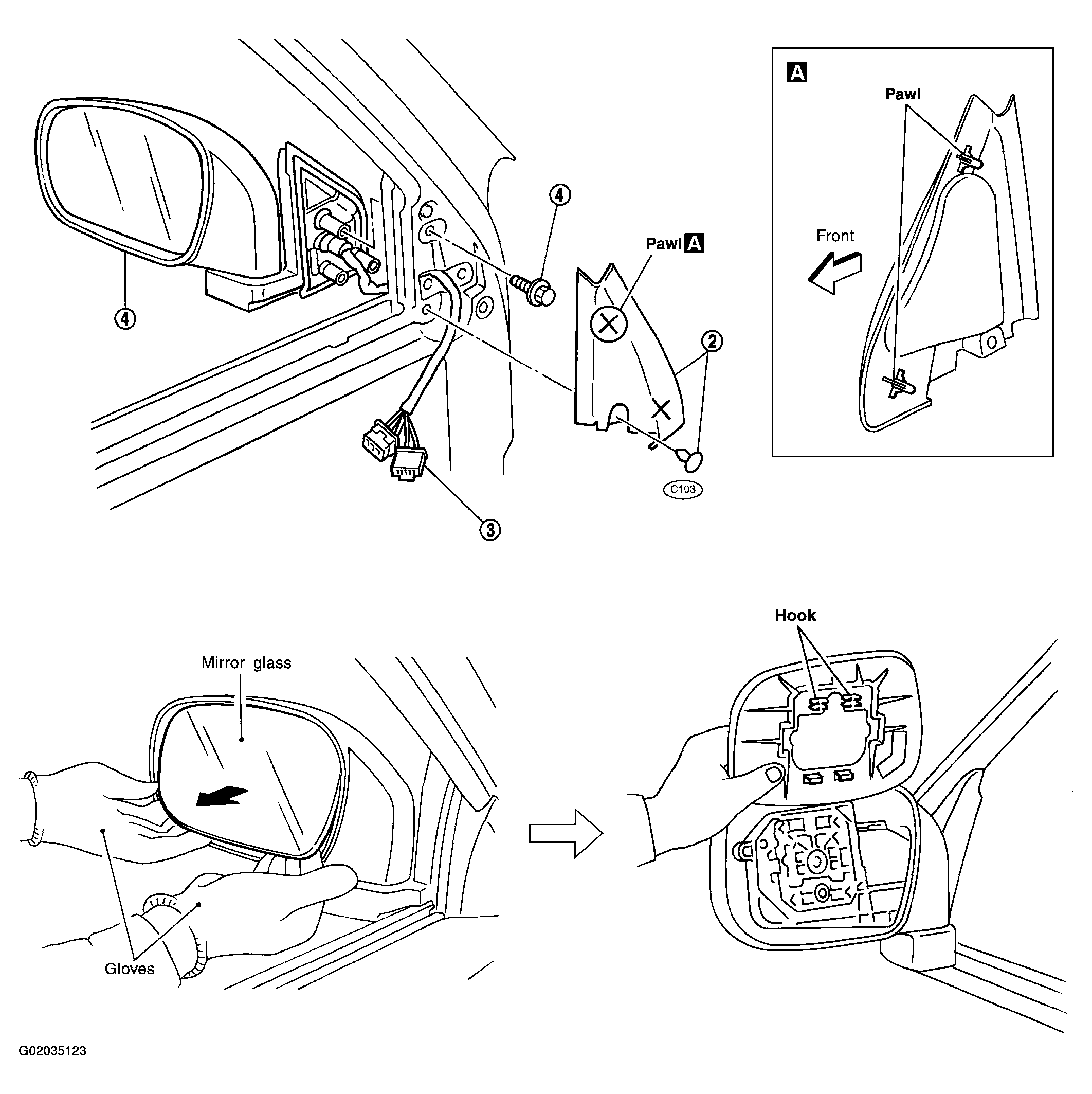

- Remove door trim. Refer to "DOOR TRIM " for details.
- Remove clip securing inner cover from front corner of door.
- Disconnect door mirror harness connector.
- Remove bolts securing door mirror, then remove door mirror assembly.
