Clip And Faster: Description

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Clips and fasteners correspond to the following numbers and symbols.
Replace any clips and/or fasteners which are damaged during removal or installation.

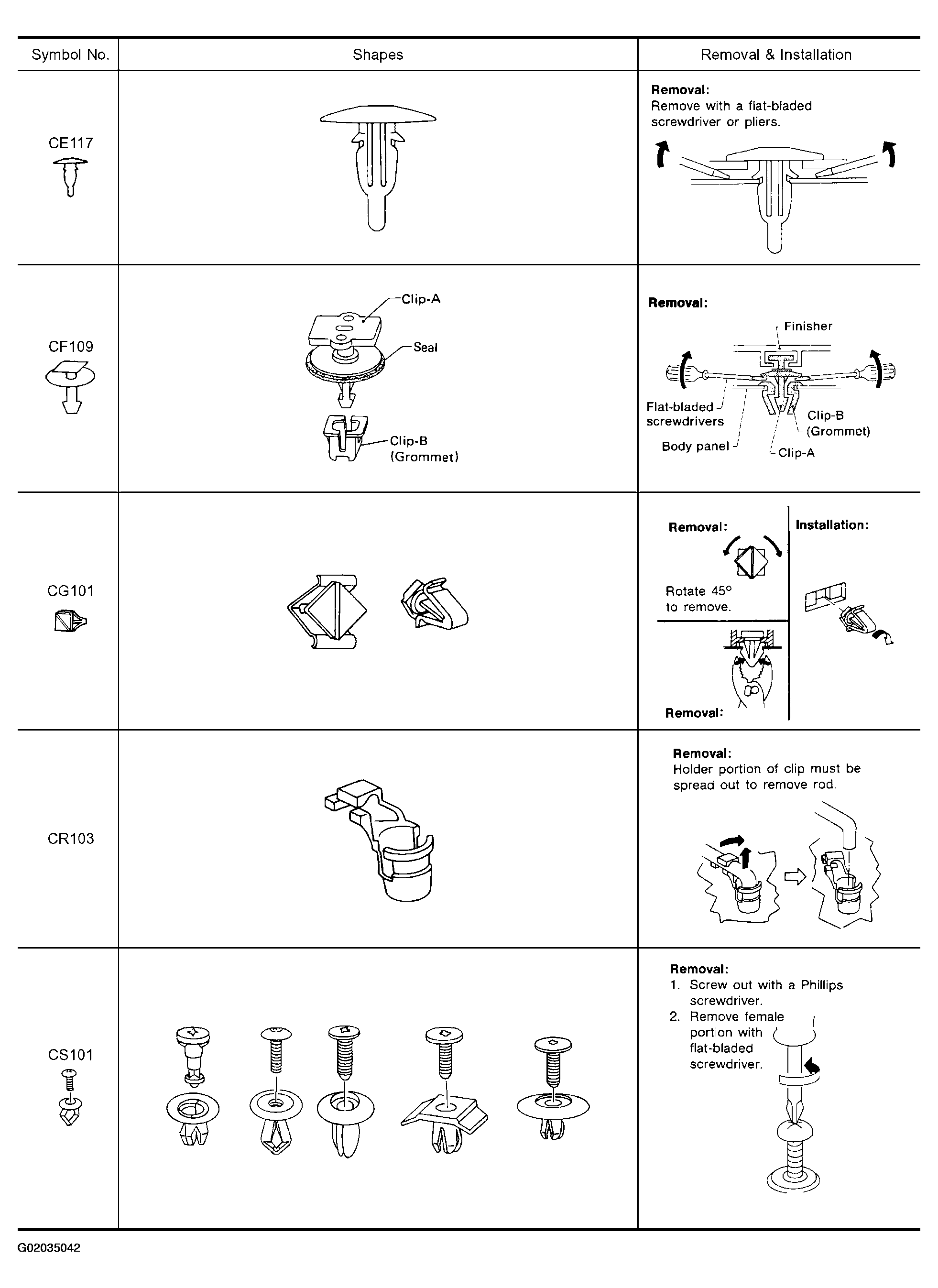

Fig 1: Clip And Faster Description Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

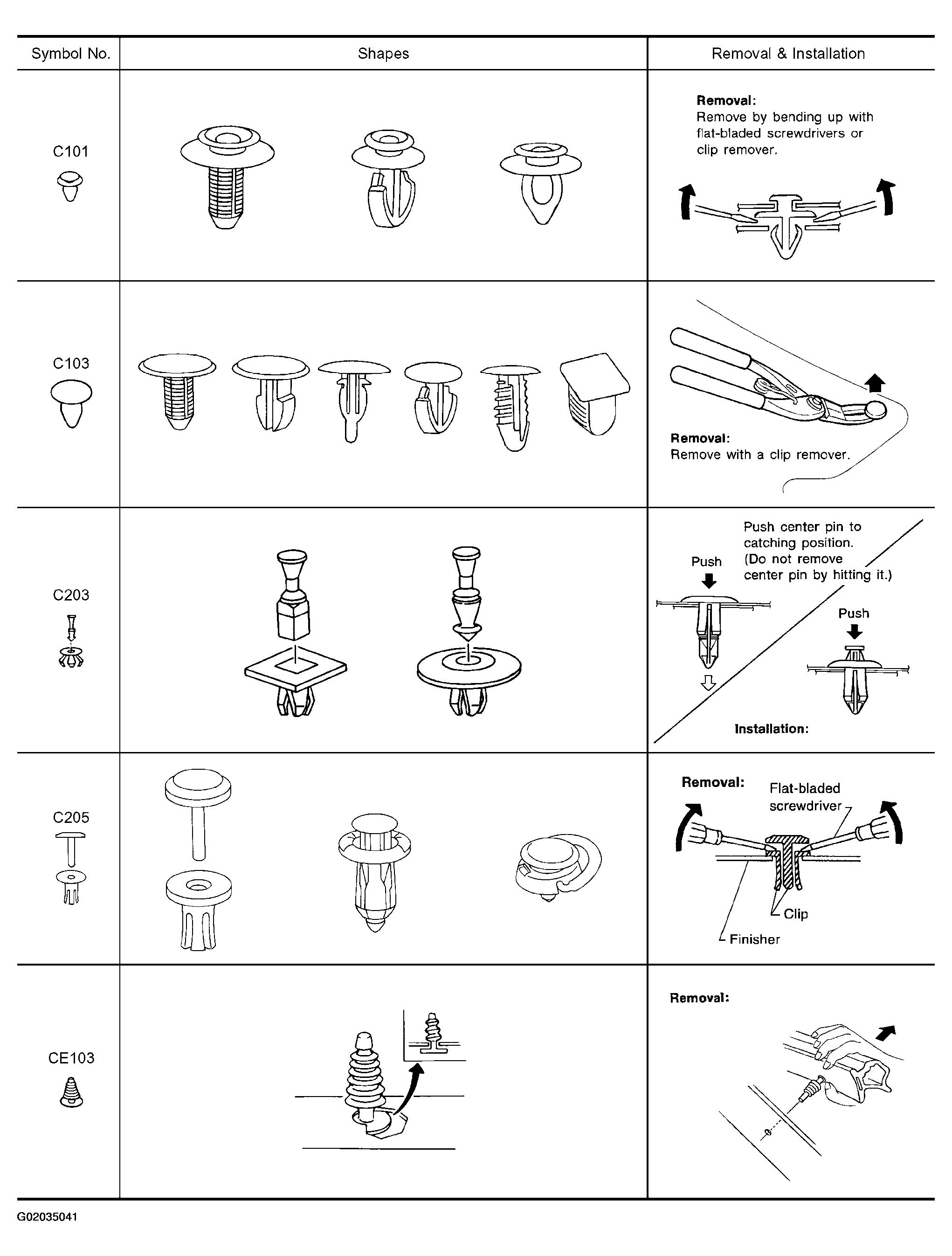

Fig 2: Clip And Faster Description Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
