Rear Bumper Assembly

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove screws securing left and right mudguards and remove the mudguards.
  2. Remove clips and screws securing left and right sides of wheel protector.
  3. Remove bolts and screws securing lower side and side of bumper assembly.[J][K]
  4. Remove bolts securing bumper rubber assembly.
  5. Remove bolts securing spare tire hanger striker assembly.
  6. Remove bolts securing spare tire hanger guide assembly.
  7. Remove clips from upper side of bumper assembly.[L]
  8. Extract bumper assembly.
  9. Remove nuts securing bumper reinforcement and remove the bumper reinforcement.[O]

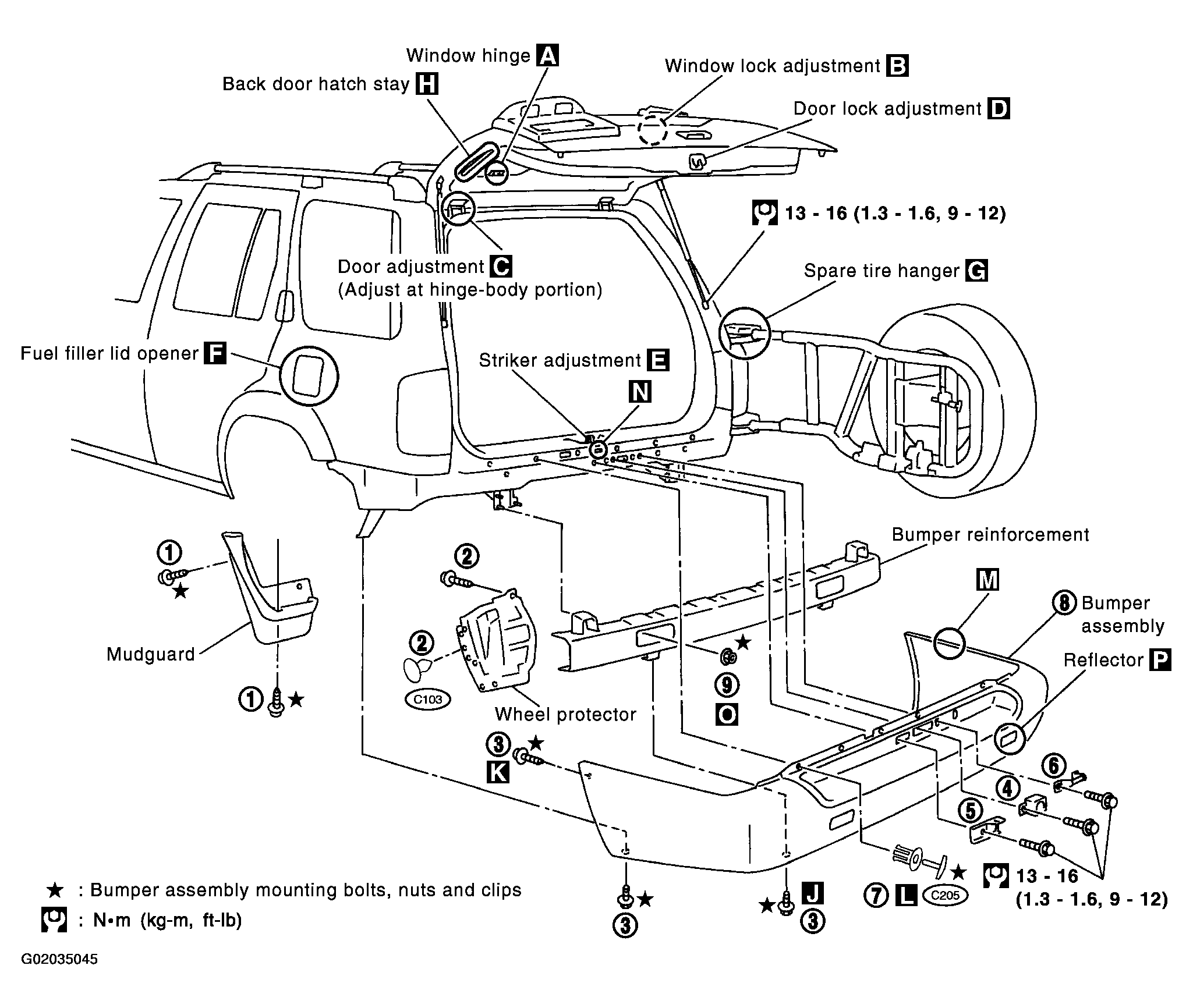

    Fig 1: Exploded View Of Body Rear End And Opener
    G02035045Courtesy of NISSAN MOTOR CO., U.S.A.

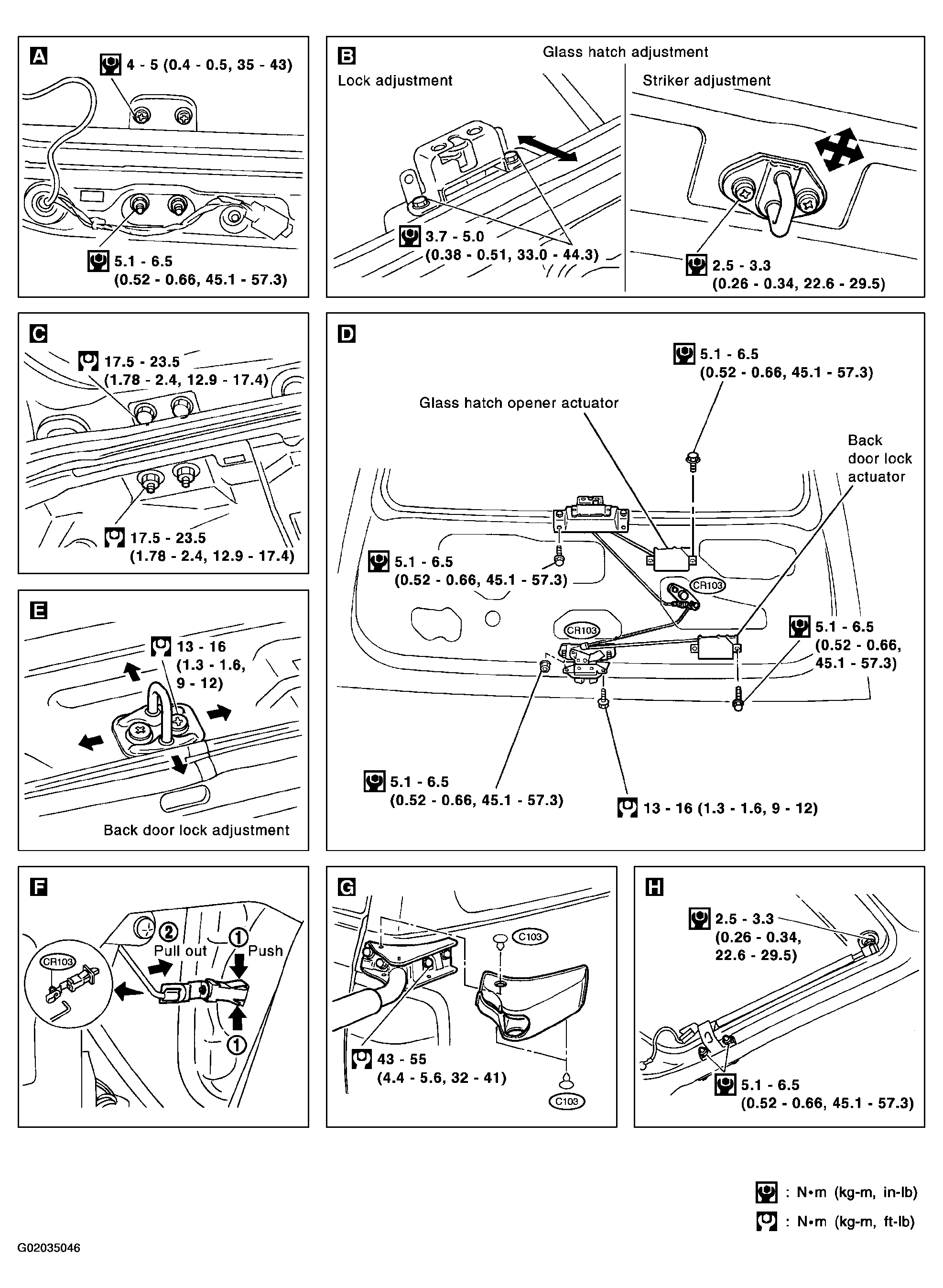

    Fig 2: Identifying Body Rear End And Opener Components (1 Of 2)
    G02035046Courtesy of NISSAN MOTOR CO., U.S.A.

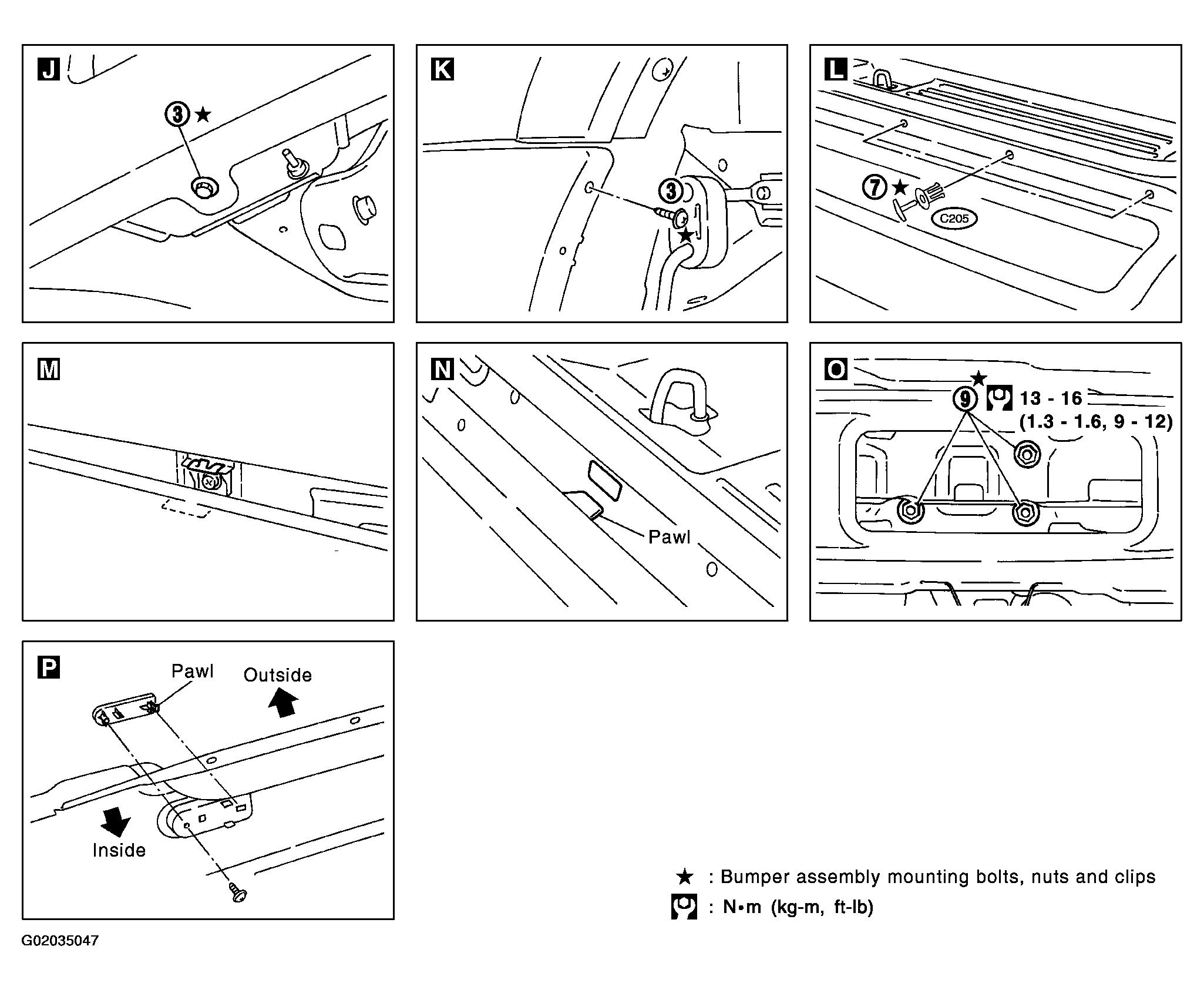

    Fig 3: Identifying Body Rear End And Opener Components (2 Of 2)
    G02035047Courtesy of NISSAN MOTOR CO., U.S.A.
