Front Bumper Assembly

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove bolts securing left and right side combination lamps and remove the lamps.[b]
  2. Remove clips securing center radiator grille and remove the center radiator grille.
  3. Remove bolts securing left and right radiator grille and remove the grilles.[C]
  4. Remove clips and screws securing left and right sides of fender protector.
  5. Remove screws securing bumper fascia.[D]
  6. Remove clips securing radiator core support lower.[E]
  7. Remove clips securing bumper reinforcement.
  8. Extract bumper fasica.[F]
  9. Remove bolts and nuts securing bumper reinforcement.[G]
  10. Extract bumper reinforcement. (When installing bumper reinforcement, remove washer tank.)

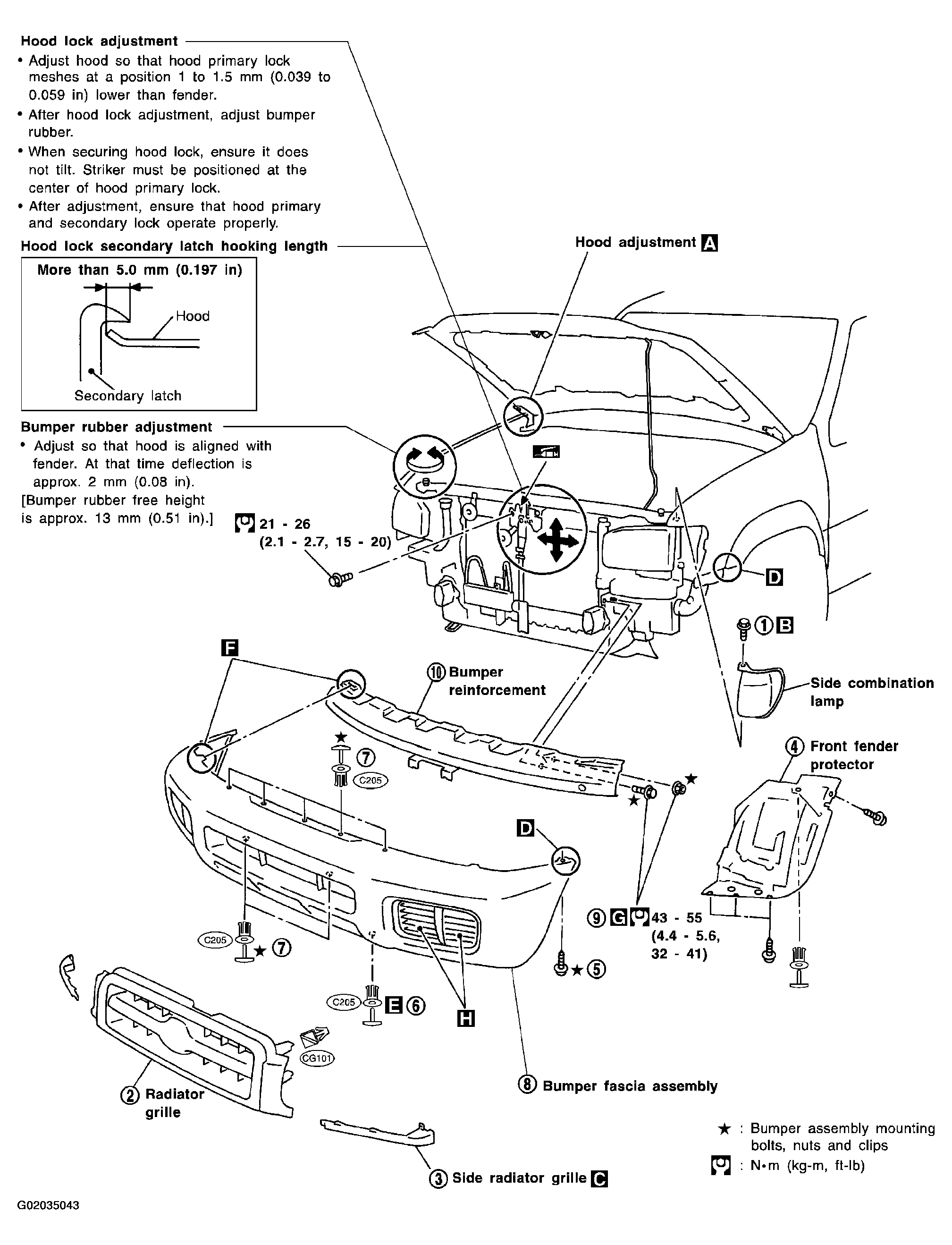

    Fig 1: Exploded View Of Body Front End
    G02035043Courtesy of NISSAN MOTOR CO., U.S.A.

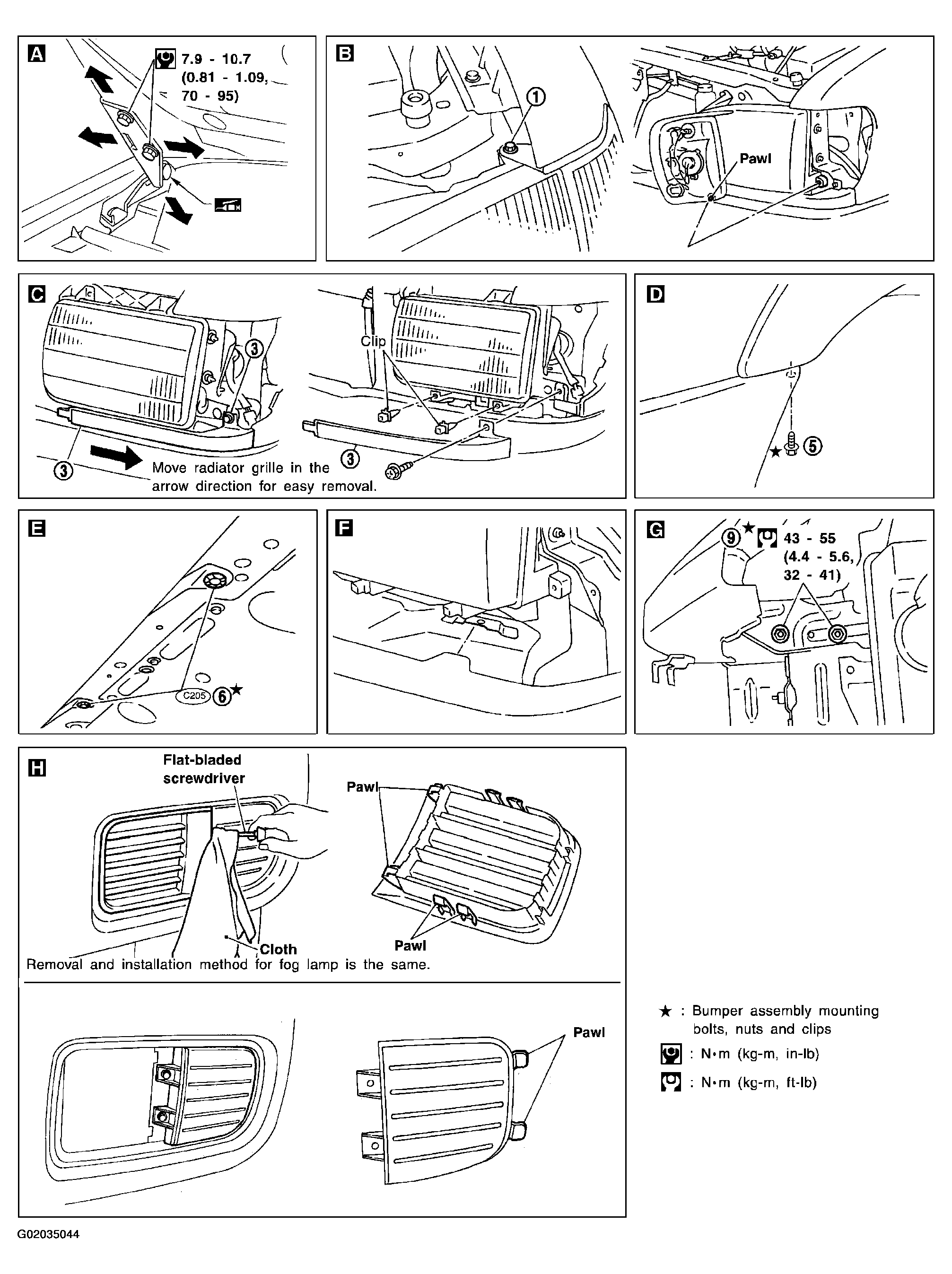

    Fig 2: Identifying Body Front End Components
    G02035044Courtesy of NISSAN MOTOR CO., U.S.A.
