Removal and Installation

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove back door grip.
  2. Remove back door finisher assembly.
  3. Remove high-mounted stop lamp.
  4. Remove back door upper finisher assembly.

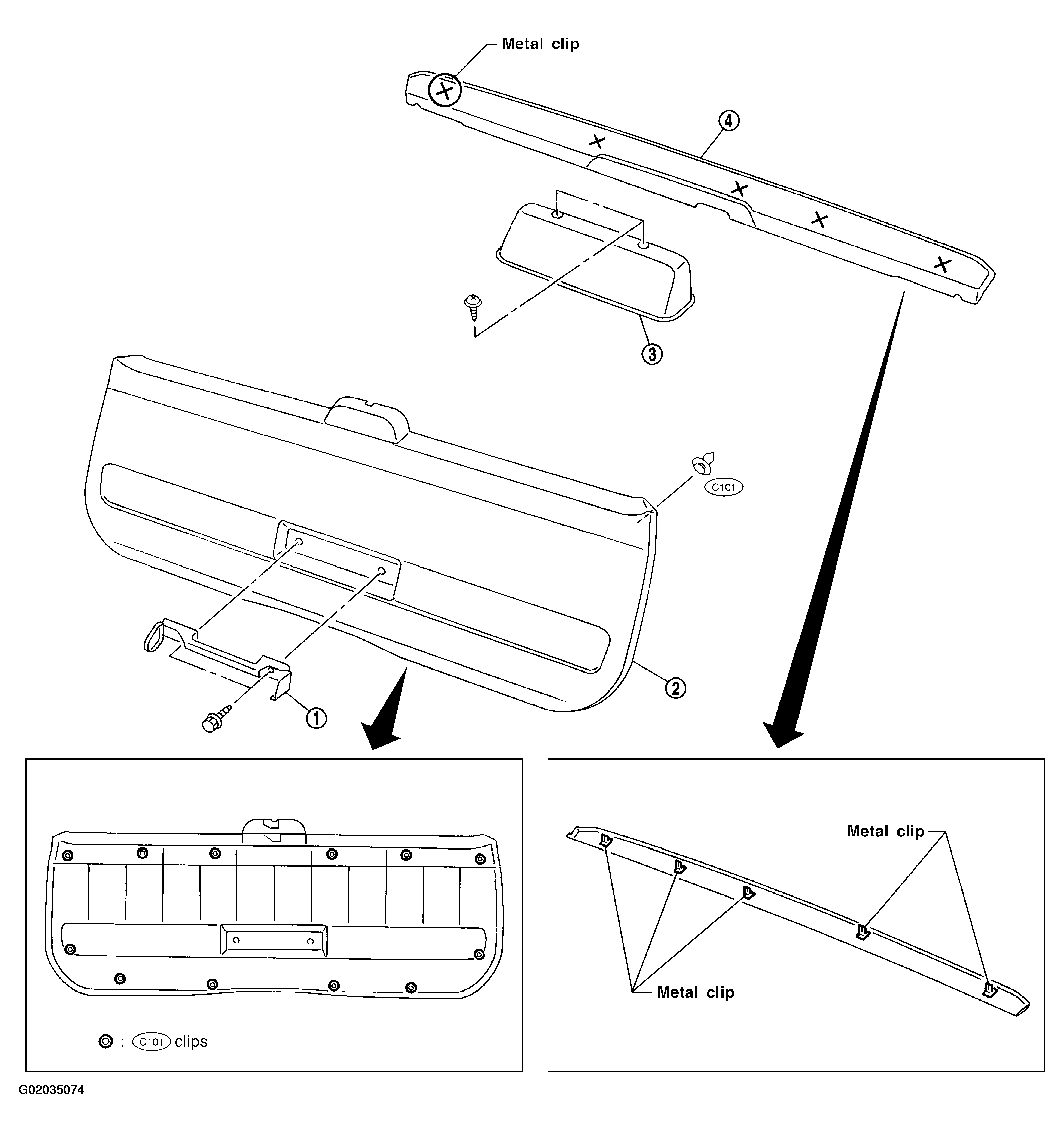

    Fig 1: Exploded View Of Back Door Trim
    G02035074Courtesy of NISSAN MOTOR CO., U.S.A.
